CNC Lathe Machine Table

Product Code : JA-CTM-9022
Jainco Lab is a leading CNC Lathe Machine Table Manufacturer,and suppliers in India, CNC Lathe Machine Table Manufacturer,and suppliers in South Africa, CNC Lathe Machine Table Algeria (Algiers), CNC Lathe Machine Table Angola (Luanda), CNC Lathe Machine Table Argentina (Buenos Aires), CNC Lathe Machine Table Armenia (Yerevan), CNC Lathe Machine Table Australia (Canberra), CNC Lathe Machine Table Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

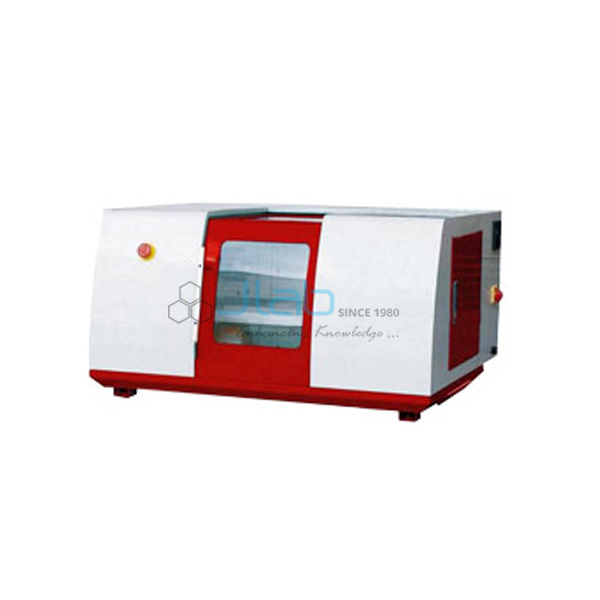

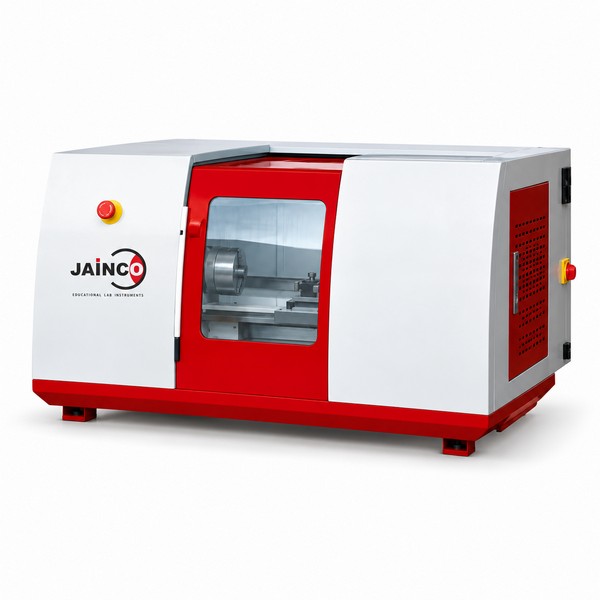

CNC Lathe Machine Table
Description:-
The offered CNC Lathe Machine table is known to be one of the best that is available in the market.
With a highly commendable functionality, longer functional life, high resistance to corrosion and market leading rate.
It is highly demanded in the market.

Specification:-
Swing over bed: 200mm (7.9”)
Swing over carriage: 100mm (4”)
Spindle speed: 100-3000 rpm
Max. Moving Speed of X/Z Axes: 2m/min
X/Z axes feeding speed: 500mm/min
Z axes max. travel: 250mm(13”)
Machine size (L x W x H): 1000 X 780 X 565 mm
G.W/ N.W.: 180/140 kg
X-axes max. travel: 150mm(7”)
Tool turret: 4 Station
Tool turret angle: 360 degree
Tailstock travel: 50mm (2”)
Positioning precision: 0.015mm
Center distance: 460mm (14”)
Bed width: 100mm (4”)
Repeat positioning precision: 0.01mm
X/Z axes motor: 1.35Nm
Turret return orientation precision: 0.005mm
Main motor power: 500w
