Tap Density Tester Manufacturer,Supplier and Exporter in India
Product Code : JA-TOBDA-2221
Jainco Lab is a leading Tap Density Tester Manufacturer,and suppliers in India, Tap Density Tester Manufacturer,and suppliers in South Africa, Tap Density Tester Algeria (Algiers), Tap Density Tester Angola (Luanda), Tap Density Tester Argentina (Buenos Aires), Tap Density Tester Armenia (Yerevan), Tap Density Tester Australia (Canberra), Tap Density Tester Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

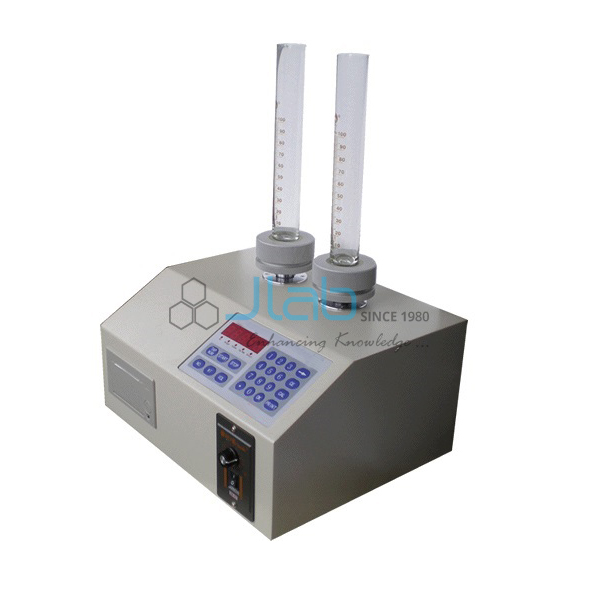

Tap Density Tester
Features:-
Complies with USP, IP
specifications
Extremely useful for
pharmaceutical labs
Microprocessor based,
easy to use
20 x 4 line alphanumeric
LCD display with backlit
16 Soft touch membrane
type keys
Independent programmable
setups for User & USP mode with storage
Printer attachment
facility
Automatically calculate
result parameters like Tap Density, Initial Density, Compressibility Index and
Hausner Ratio
Automatically stores
last Result
Power Failure detection
facility
User friendly operation
with menus & current status indicators.
Microprocessor Tap
Density Tester is a density measurement equipment used to measure tapped
density of powders, as well as granulated or flaked materials by standardized
and repeatable procedures. Instrument uses the latest microprocessor technology
and advanced engineering techniques so as to give enhanced accuracy and
reproducibility.
System is equipped with 4 line alphanumeric LCD display with backlit and 16
number of soft touch membrane type keys.
The unit is provided with two motorized platforms which allow for 14 ± 2.0 mm
drop height for the USP Method I version, and a 3 ±0.3 mm drop height for the
USP Method II version.
The motorized platforms
consist of two cylinder holders with snap-lock mechanism designed to hold 100
ml and 250 ml cylinders.
The simultaneous
rotating and tapping motion minimizes any possible loss of mass during tapping
down.
The instrument stores the test parameters, readings and results simultaneously
in the memory which are retained even after the power is switched OFF.
Provision has also been
made for attachment of a printer so as to provide hard-copy printouts of test
data, including the time, date and calculated results.
Specifications:-
|
Test Methods |
USP-I & USP-II |
|
No. of Stations |
2 |
|
Display |
20x4 Alphanumeric LCD |
|
Keyboard |
16 Soft touch membrane
keys, alphanumeric mobile keypad |
|
Tap Height |
USP-I: 14mm± 2mm,
USP-II: 3mm ± 0.3mm |
|
Taps/Minute |
USP-I: 300± 15,
USP-II: 250± 15 |
|
No. of Tap Counts |
1 to 9999 |
|
Type of Drive |
Direct Drive with
Stepper Motor |
|
Printer Accessories |
Attachment of RS232
printer with Serial interface |
|
Standard Accessories |
Cylinders 100 &
250ml (1 each) |
|
Electrical Supply |
230 V AC ± 10%, 50/60
Hz, 44VA |
|
Dimensions (WxHxD) |
360x340x190 mm without
holder |
|
Weight |
15 Kgs |
