Jaincolab is a leading Precision Pressure Gauge Calibrator Manufacturer,and suppliers in India

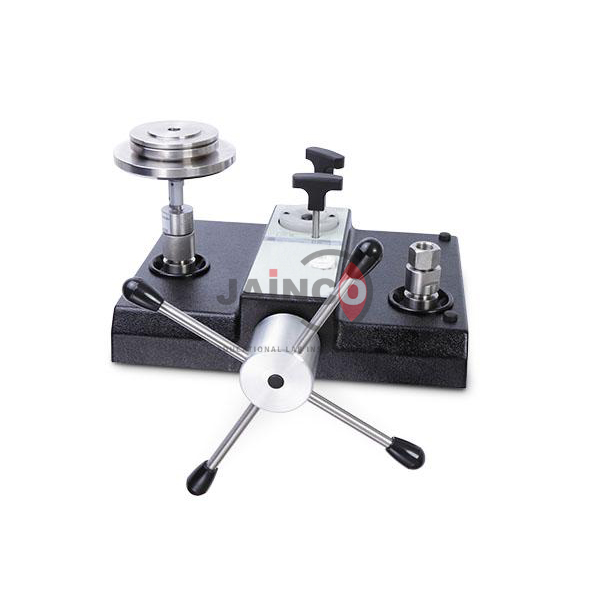

Precision Pressure
Gauge Calibrator
Specifications:-
A set of weights, a set of adapters for the
pressure gauges, spare seals and a bottle of oil are supplied.
Laboratory calibration certificate.
Carrying cases for the unit and weights.
This unit allows pressure gauges to be accurately
calibrated up to 300 bar, with an accuracy of +0.015%.
Piston allows calibration over a wide range of
pressures.
A spirit level (or bubble level) and rotating foot
studs are provided to enable the student to level the unit.
Priming pump.
Spindle pump for pressure generation and fine
adjustment.
Mineral oil is used as the hydraulic fluid.
Pressure gauges (not included).
Dimensions and Weights:-
Unit |
Dimensions |
500 x 350 x 400 mm. approx. (19.68 x 13.77 x 15.74 inches approx.). |
Weights |
5 Kg. approx. (11 pounds approx.). |
|
Set of weights |
Dimensions |
500 x 350 x 400 mm. approx. (19.68 x 13.77 x 15.74 inches approx.). |
Weights |
45 Kg. approx. (99 pounds approx.). |
