Sectioned Automotive Air Conditioning System Manufacturer,Supplier and Exporter in India
Product Code : JA-ACAR-9679

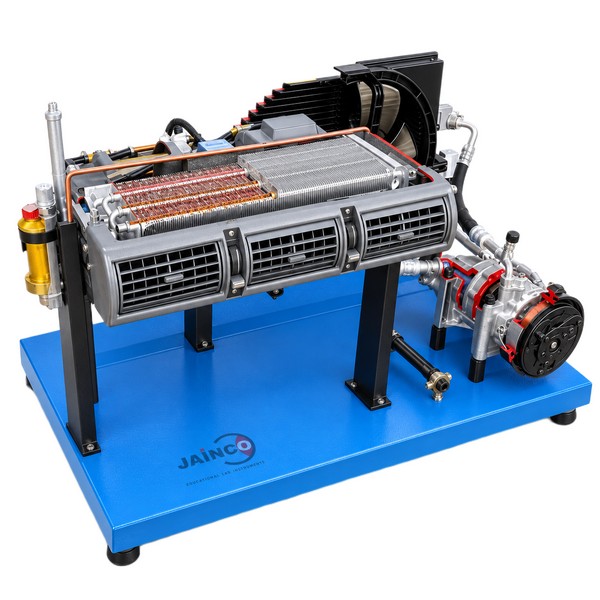

The Sectioned Automotive Air Conditioning System (SKU JA-ACAR-9679) is a sectioned car AC system containing all the major parts of a modern automotive A/C system: the A/C pump, condenser, evaporator, filter drier, expansion valve and connecting hoses. The components are mounted on a base in an easy-to-view arrangement and joined by the appropriate hoses to show the system flow. A graphic diagram of the automotive A/C process is included. It is supplied by JaincoLab.
Specifications
The set contains the A/C pump, condenser, evaporator, filter drier, expansion valve and hoses on a base, with a process diagram; base size is confirmed on the quotation.
| Product | Sectioned Automotive Air Conditioning System |
| SKU | JA-ACAR-9679 |
| Type | Sectioned automotive air conditioning system |
| Components | A/C pump, condenser, evaporator, filter drier, expansion valve, connecting hoses |
| Mounting | Base, components arranged for easy viewing |
| Flow | Components connected by hoses to show system flow |
| Documentation | Graphic diagram of the automotive A/C process |
| Base size | Confirmed on the quotation |
Applications of the sectioned car AC system
Laying out the sectioned components in circuit order lets students follow the refrigerant from compressor to evaporator and back.
- Identifying major automotive A/C components
- Following system flow through connected parts
- Explaining the automotive A/C process with the supplied diagram
- Automobile technician theory classes
Scope of supply and ordering
The listing covers the base-mounted sectioned automotive A/C set with hoses and process diagram.
Single sets and class sets are supplied.
Frequently asked questions
Which parts are included?
A/C pump, condenser, evaporator, filter drier, expansion valve and connecting hoses.
How is system flow shown?
The components are connected by hoses in their system order.
Is a diagram supplied?
Yes. A graphic diagram of the automotive A/C process is included.
