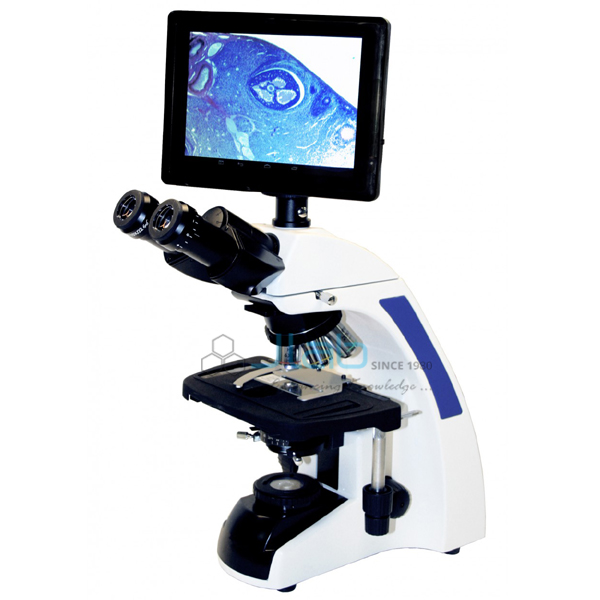

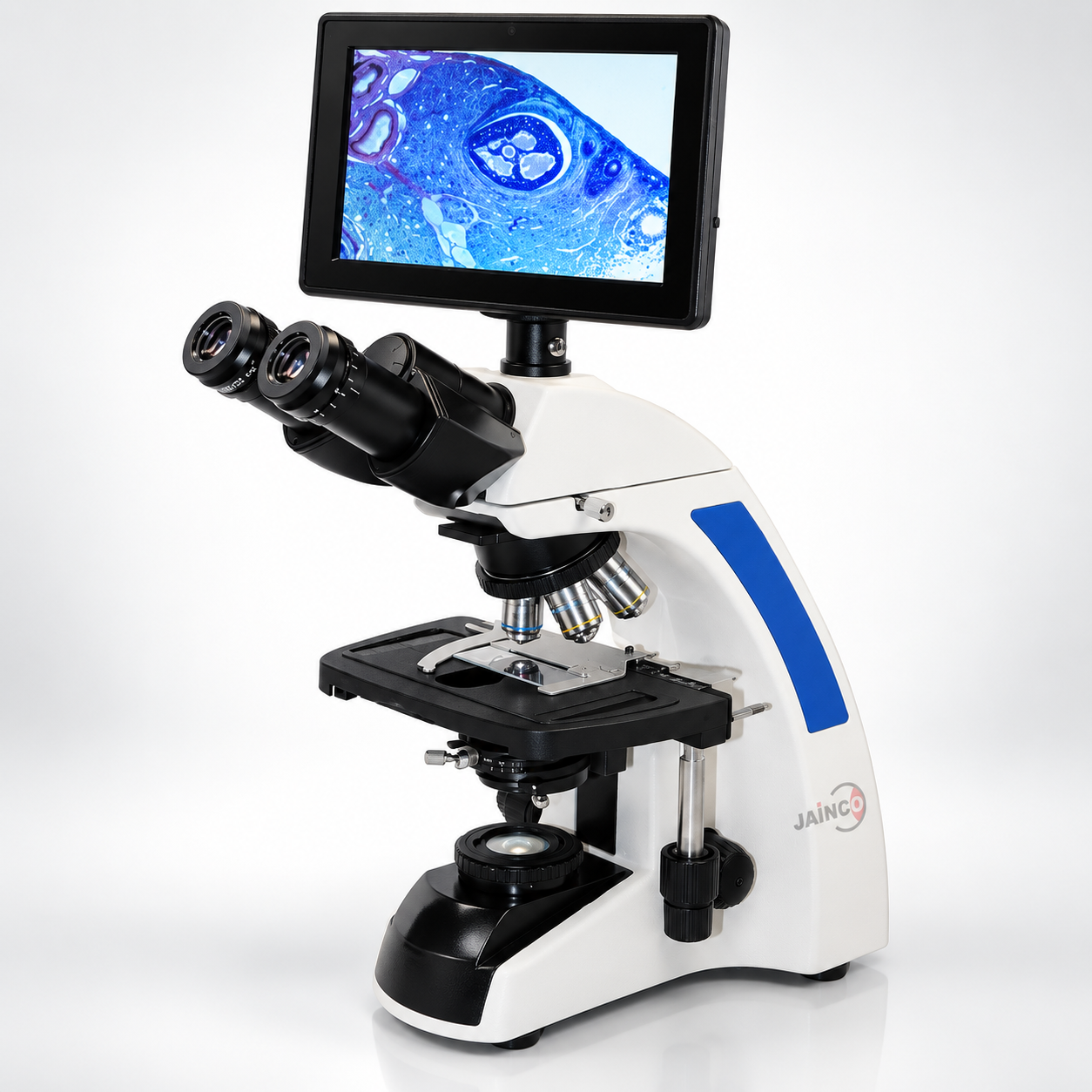

Advanced Infinity Corrected Digital Trinocular Microscope with LCD Touch Pad Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8086
Jaincolab is a leading Advanced Infinity Corrected Digital Trinocular Microscope with LCD Touch Pad Manufacturer,and suppliers in India, Advanced Infinity Corrected Digital Trinocular Microscope with LCD Touch Pad Manufacturer,and suppliers in South Africa, Advanced Infinity Corrected Digital Trinocular Microscope with LCD Touch Pad Algeria (Algiers), Advanced Infinity Corrected Digital Trinocular Microscope with LCD Touch Pad Angola (Luanda), Advanced Infinity Corrected Digital Trinocular Microscope with LCD Touch Pad Argentina (Buenos Aires), Advanced Infinity Corrected Digital Trinocular Microscope with LCD Touch Pad Armenia (Yerevan), Advanced Infinity Corrected Digital Trinocular Microscope with LCD Touch Pad Australia (Canberra), Advanced Infinity Corrected Digital Trinocular Microscope with LCD Touch Pad Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).
Viewing Head |
JAab trinocular head which will not change the length in the eyepiece tubes when interpupillary distance adjustments are made |
|
30° inclined and 360° rotatable, fully up or down swiveled eyepiece tubes to adjust the viewing height to meet individual requirements |
||
Interpupillary adjustment of 48mm-75mm |
||
Eyepiece |
Wide field (WF)10x/22mm |
|
High eyepoint, with eyeguard |
||
Both eyepieces are diopter adjustable, which allows the image and reticule to be brought into focus at the same time. |
||
|
Optional reticule eyepiece for measurement purposes; choice of 0.1mm/1cm grid, 0.1mm/1cm cross or plain cross hair available (not included) |
|
Nosepiece |
Revolving reversed quintuple objective nosepiece accepts five objectives which are color-coded, parcentered and parfocaled. |
|
The nosepiece runs on ball bearings and has internal click stops so that the image remains centered after each change in magnification. |
||
Objectives |
Infinity corrected, high contrast (HC) Plan Achromatic DIN 4X/0.10 ∞/0.17 |
|
Infinity corrected, high contrast (HC) Plan Achromatic DIN 10X/0.25 ∞/0.17 |
||
Infinity corrected, high contrast (HC) Plan Achromatic DIN 20X/0.40 ∞/0.17 |
||
Infinity corrected, high contrast (HC) Plan Achromatic DIN 40XR/0.65 ∞/0.17 (Retractable) |
||
Infinity corrected, high contrast (HC) Plan Achromatic DIN 100XR/1.25 oil ∞/0.17(Retractable) |
||
40XR and 100XR objectives are retractable which have resilient mounts for specimen protection |
||
Focusing System |
Low position coaxial coarse and fine focus knobs |
|
37.7mm per coarse rotation |
||
0.1mm per fine rotation, fine focus graduation of 1um |
||
Focusing range 16mm |
||
Tension adjustment eliminates focus drift |
||
Stage |
216mmx150mm built-in double layer mechanical stage |
|
Smooth X/Y calibrated movement with cross travel range 7.5cm x 5.5cm |
||
Non-extending rack |
||
Graphite surface, rounded edges |
||
Illumination |
Built-in Kohler illumination with field diaphragm, provides uniformly bright and free-from-glare specimen illumination |
|
N.A. 1.25 Abbe condensers which height is controlled by a rack and pinion gear system that allows the condenser focus to be adjusted for proper illumination of the specimen |
||
Adjustable aperture iris diaphragm incorporated into the condenser, which is important in securing correct illumination, contrast, and depth of field; a graduated scale indicates the approximate adjustment (size) of the aperture diaphragm. |
||
5w LED for optimum illumination and contrast (5w LED available but not included) |
||
With light intensity control |
||
Imaging |
Trinocular phototube (50% vis, 50% doc) with 10MP digital eyepiece camera and 8'' LCD camera available to capture images and view live video of the specimen on a computer or screen. |
|
0.5x C-mount included |
||
Other characters |
Ergonomically designed metal frame for stability and durability |
|
Carrying handle integrated in the back of the stand for easy carrying |
||
Arm and base made of one piece construction |
||
Antifungal treatment prevents fungal growth |
||
Cord holder for convenient storage |
||
Optional Accessory |
Dark field kit |
|
Available (not included) |
Phase contrast kit |
|
|
Polarizing kit |
|
Camera Main Features |
8" Color LCD & Touch Screen 360° horizontal rotatable / 90° vertical rotatable |
|
Free life-time software upgrade |
||
2MP high resolution, 1024 x 786 display |
||
Blue-tooth & Wi-Fi |
||
CPU Dual-core 1.41GHz |
||
|
Operating System Android 4.1.1 |
|
|
Memory: 1G (DDR3) |
|
|
Storage: Internal 4 GB or External Mini SD Card |
|
|
Windows, Mac, Linux compatible |
|
|
Output Ports: 1x HDMI port; 1x USB 2.0; 1x Mini USB 2.0 |
|
|
Power Supply: Input: AC110v-220v; Output: DC 5v |
|
|
0.35x Relay lens, external power adapters, HDMI cable |
