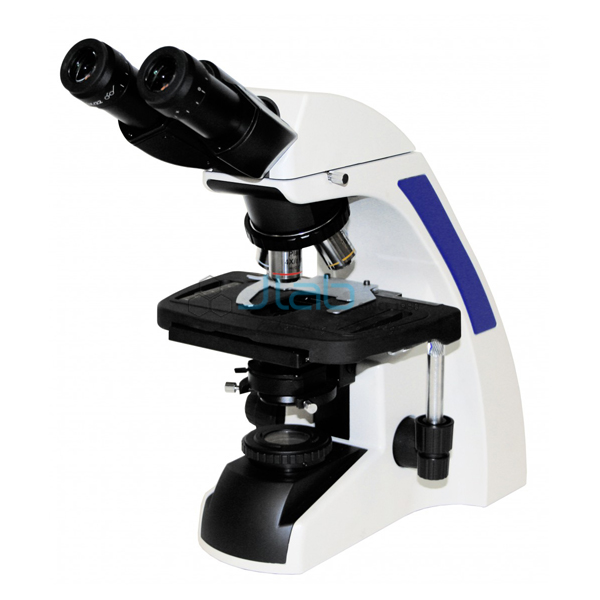

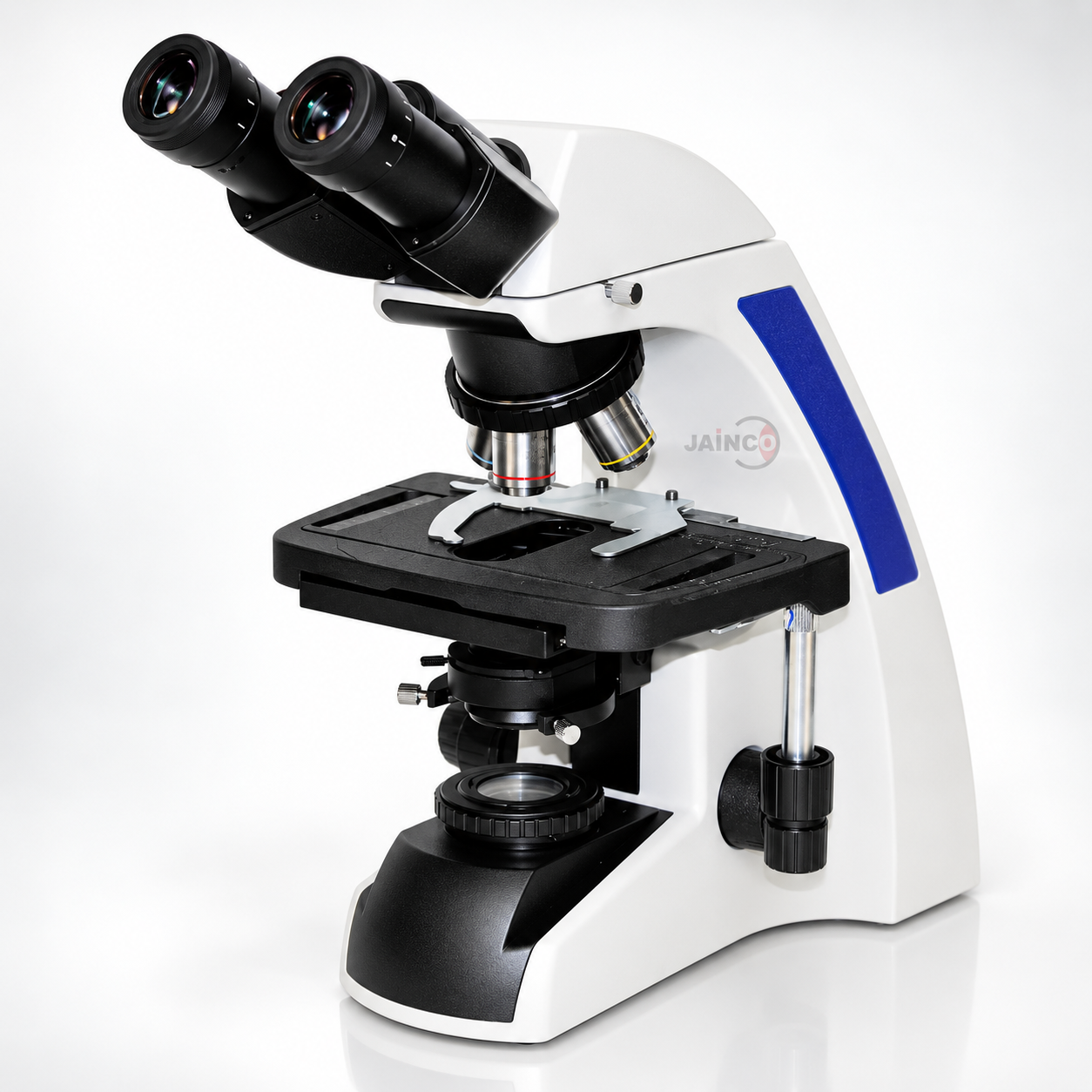

Advanced Infinity Corrected Binocular Microscope Manufacturer,Supplier and Exporter in India

Product Code : JA-M-8082
Jaincolab is a leading Advanced Infinity Corrected Binocular Microscope Manufacturer,and suppliers in India
Viewing Head |
JAab binocular head which will not change the length in the eyepiece tubes when interpupillary distance adjustments are made |
|
30° inclined and 360° rotatable, fully up or down swiveled eyepiece tubes to adjust the viewing height to meet individual requirements |
||
Interpupillary adjustment of 48mm-75mm |
||
Eyepiece |
Wide field (WF)10x/22mm |
|
High eyepoint, with eyeguard |
||
Both eyepieces are diopter adjustable, which allows the image and reticule to be brought into focus at the same time. |
||
|
Optional reticule eyepiece for measurement purposes; choice of 0.1mm/1cm grid, 0.1mm/1cm cross or plain cross hair available (not included) |
|
Nosepiece |
Revolving reversed quintuple objective nosepiece accepts five objectives which are color-coded, parcentered and parfocaled. |
|
The nosepiece runs on ball bearings and has internal click stops so that the image remains centered after each change in magnification. |
||
Objectives |
Infinity corrected, high contrast (HC) Plan Achromatic DIN 4X/0.10 ∞/0.17 |
|
Infinity corrected, high contrast (HC) Plan Achromatic DIN 10X/0.25 ∞/0.17 |
||
Infinity corrected, high contrast (HC) Plan Achromatic DIN 20X/0.40 ∞/0.17 |
||
Infinity corrected, high contrast (HC) Plan Achromatic DIN 40XR/0.65 ∞/0.17 |
||
Infinity corrected, high contrast (HC) Plan Achromatic DIN 100XR/1.25 oil ∞/0.17 |
||
40XR and 100XR objectives are retractable which have resilient mounts for specimen protection |
||
Focusing System |
Low position coaxial coarse and fine focus knobs |
|
37.7mm per coarse rotation |
||
0.1mm per fine rotation, fine focus graduation of 1um |
||
Focusing range 16mm |
||
Tension adjustment eliminates focus drift |
||
Stage |
216mmx150mm built-in double layer mechanical stage |
|
Smooth X/Y calibrated movement with cross travel range 7.5cm x 5.5cm |
||
Non-extending rack |
||
Graphite surface, rounded edges |
||
Illumination |
Built-in Kohler illumination with field diaphragm, provides uniformly bright and free-from-glare specimen illumination |
|
N.A. 1.25 Abbe condensers which height is controlled by a rack and pinion gear system that allows the condenser focus to be adjusted for proper illumination of the specimen |
||
Adjustable aperture iris diaphragm incorporated into the condenser, which is important in securing correct illumination, contrast, and depth of field; a graduated scale indicates the approximate adjustment (size) of the aperture diaphragm corresponding to respective objectives. |
||
5w LED for optimum illumination and contrast |
||
With light intensity control |
||
Design |
Ergonomically designed metal frame for stability and durability |
|
Carrying handle integrated in the back of the stand for easy carrying |
||
Arm and base made of one piece construction |
||
Antifungal treatment prevents fungal growth |
||
Cord holder for convenient storage |
||
Optional Accessory |
Dark field kit |
|
Phase contrast kit |
||
Polarizing kit |
