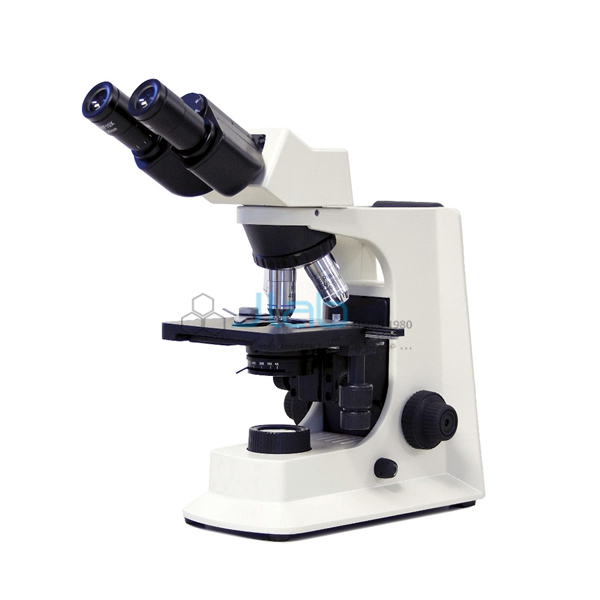

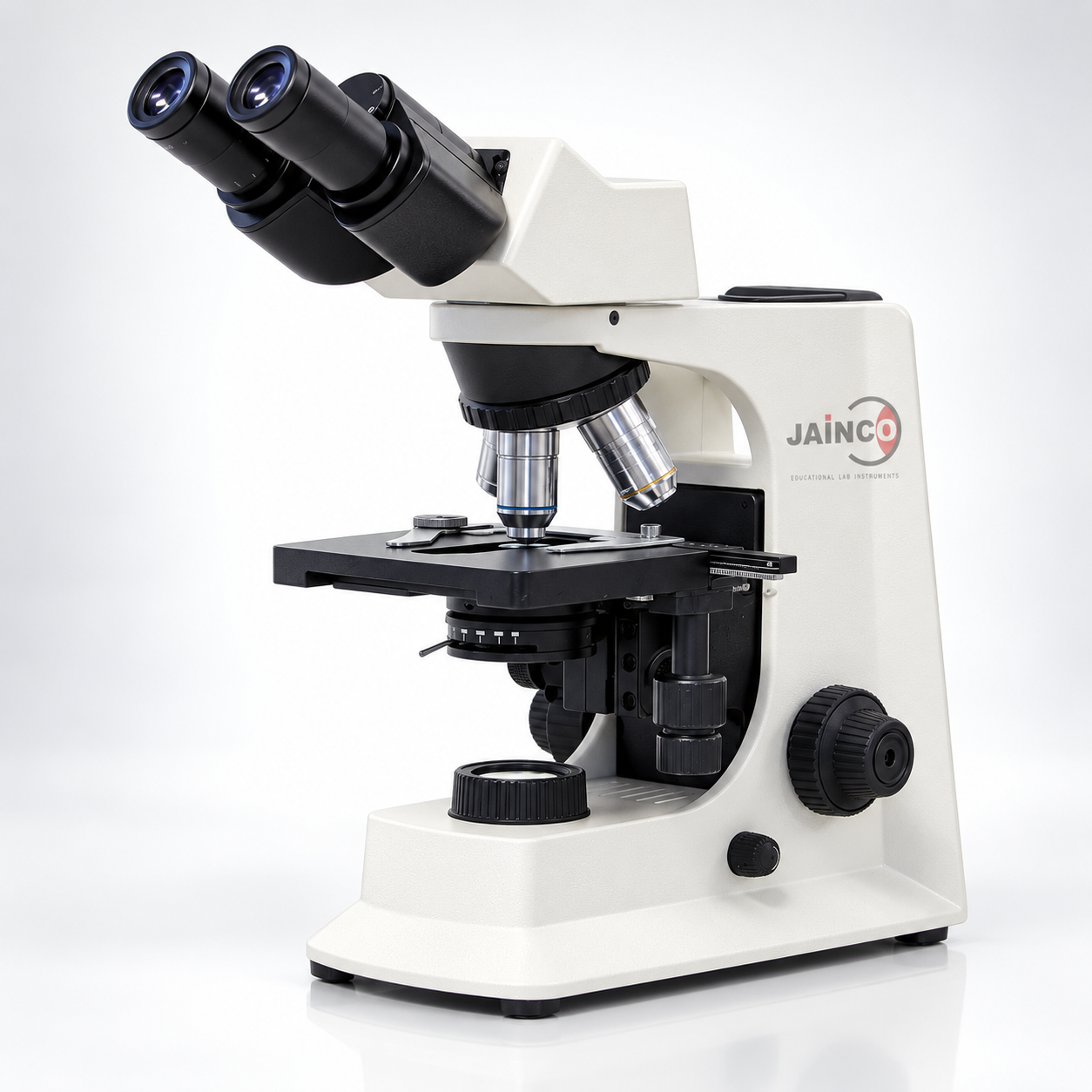

Infinity Corrected Binocular Microscope Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8067
Jaincolab is a leading Infinity Corrected Binocular Microscope Manufacturer,and suppliers in India
|
Viewing Head |
Jaincolab binocular head which will not change the length in the eyepiece tubes when interpupillary distance adjustments are made |
|
30° inclined and 360° rotatable |
|
|
Interpupillary adjustment of 50mm-75mm |
|
|
Eyepiece |
Wide field (WF)10x/20mm |
|
Diopter adjustable on left eyepiece tube |
|
|
Calibrated eyepiece pointer on one eyepiece |
|
|
Optional reticule eyepiece available for measurement purposes: 0.1mm Scales available (not included) |
|
|
Nosepiece |
Revolving reversed quadruple objective nosepiece accepts four objectives which are color-coded, parcentered and parfocaled. |
|
The nosepiece runs on ball bearings and has internal click stops so that the image remains centered after each change in magnification. |
|
|
Objectives |
Infinity corrected, E Plan Achromatic DIN 4X/0.10 ∞/0.17 |
|
Infinity corrected, E Plan Achromatic DIN 10X/0.25 ∞/0.17 |
|
|
Infinity corrected, E Plan Achromatic DIN 40XR/0.66 ∞/0.17 |
|
|
Infinity corrected, E Plan Achromatic DIN 100XR/1.25 oil ∞/0.17 |
|
|
40XR and 100XR objectives are retractable which have resilient mounts for specimen protection |
|
|
Focusing System |
Low position coaxial coarse and fine focus knobs on both sides |
|
Coarse movement stroke of 26mm |
|
|
Fine focus graduation of 2µm |
|
|
Focusing range 19mm |
|
|
Tension adjustment eliminates focus drift |
|
|
Stage |
145mm x 140mm built-in double layer mechanical stage |
|
smooth X/Y calibrated movement with cross travel range 7.6cm x 5.2cm |
|
|
Two slides holder |
|
|
Illumination |
N.A. 1.25 Abbe condensers which height is controlled by a rack and pinion gear system that allows the condenser focus to be adjusted for proper illumination of the specimen |
|
Adjustable aperture iris diaphragm incorporated into the condenser, which is important in securing correct illumination, contrast, and depth of field; a graduated scale indicates the approximate adjustment (size) of the aperture diaphragm corresponding to respective objectives. |
|
|
3W LED with light intensity control provide cool, bright, and even illumination |
|
|
Other Characters |
Original integrated stand, rectangular shape and cast aluminium frame for minimum vibrations, maximum stability and durability |
|
Carrying handle integrated in the back of the stand for easy carrying |
|
|
Arm and base made of one piece construction |
|
|
Antifungal treatment prevents fungal growth |
|
|
Optional Accessory
Available (not included) |
Dark field kit (Dark field condenser N.A. 0.9 (Dry) for 4x-40x objective) |
|
Polarizing kit (Analyzer/Polarizer) |
