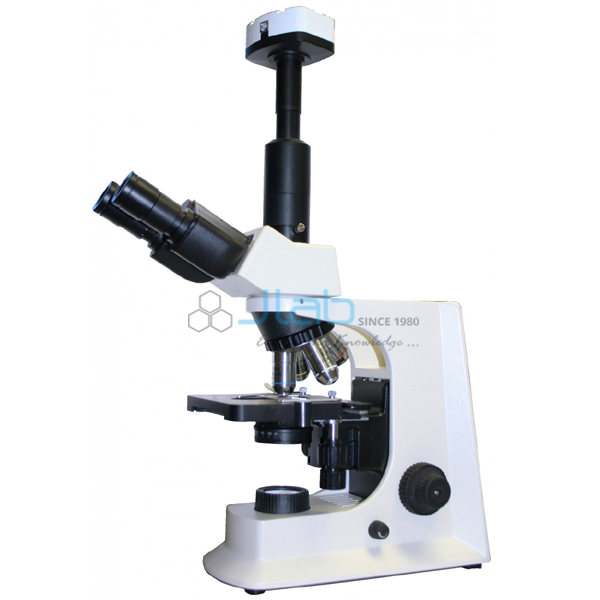

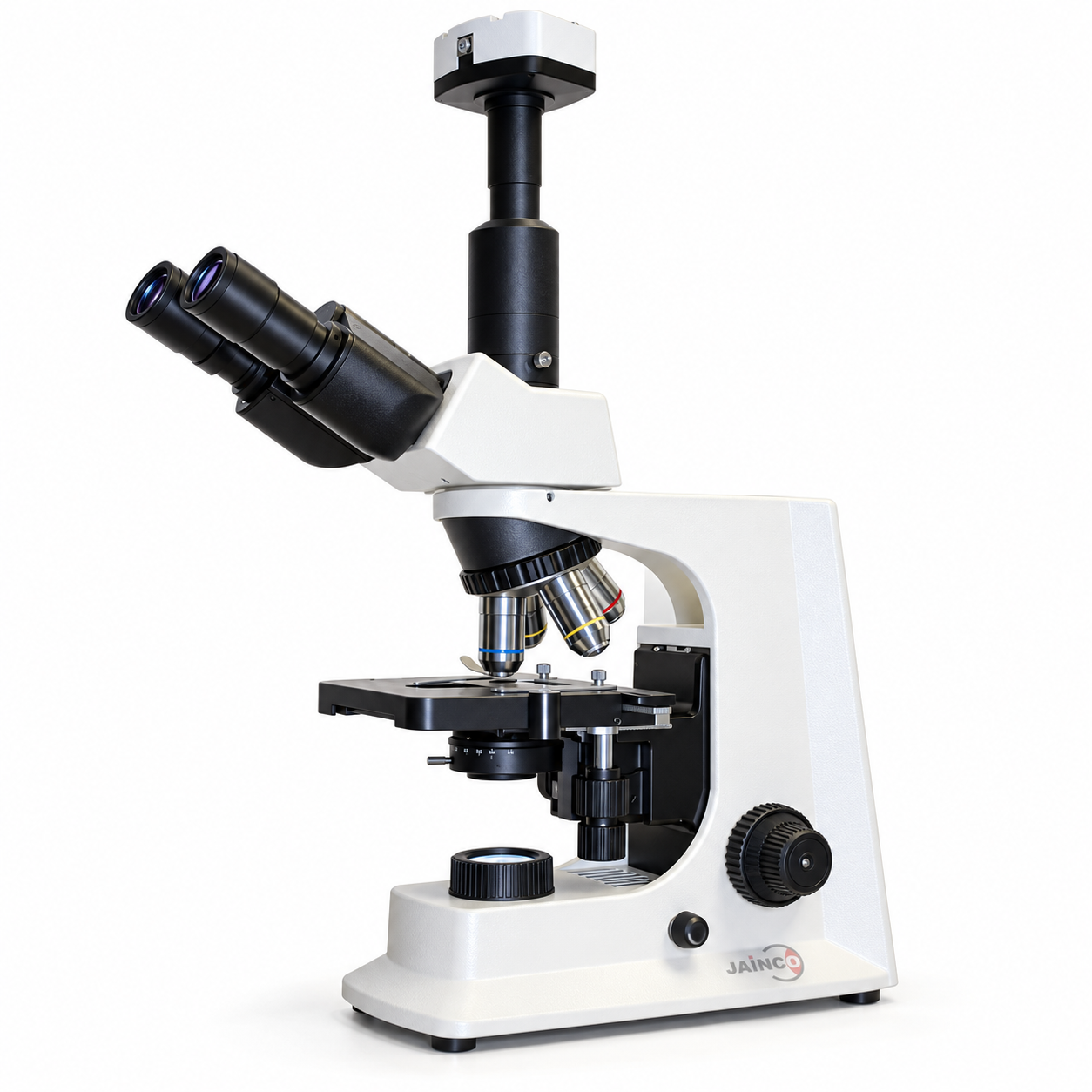

Infinity Corrected Digital Trinocular Microscope Manufacturer,Supplier and Exporter in India

Viewing Head

Jaincolab trinocular head which will not change the length in the eyepiece tubes when interpupillary distance adjustments are made

30° inclined and 360° rotatable

Interpupillary adjustment of 50mm-75mm

Eyepiece

Wide field (WF)10x/20mm

Diopter adjustable on left eyepiece tube

Calibrated eyepiece pointer on one eyepiece

Optional reticule eyepiece available for measurement purposes: 0.1mm Scales available (not included)

Nosepiece

Revolving reversed quadruple objective nosepiece accepts four objectives which are color-coded, parcentered and parfocaled.

The nosepiece runs on ball bearings and has internal click stops so that the image remains centered after each change in magnification.

Objectives

Infinity corrected, E Plan Achromatic DIN 4X/0.10 ∞/0.17

Infinity corrected, E Plan Achromatic DIN 10X/0.25 ∞/0.17

Infinity corrected, E Plan Achromatic DIN 40XR/0.66 ∞/0.17

Infinity corrected, E Plan Achromatic DIN 100XR/1.25 oil ∞/0.17

40XR and 100XR objectives are retractable which have resilient mounts for specimen protection

Focusing System

Low position coaxial coarse and fine focus knobs on both sides

Coarse movement stroke of 26mm

Fine focus graduation of 2µm

Focusing range 19mm

Tension adjustment eliminates focus drift

Stage

145mm x 140mm built-in double layer mechanical stage

smooth X/Y calibrated movement with cross travel range 7.6cm x 5.2cm

Two slides holder

Illumination

N.A. 1.25 Abbe condensers which height is controlled by a rack and pinion gear system that allows the condenser focus to be adjusted for proper illumination of the specimen

Adjustable aperture  iris diaphragm incorporated into the condenser, which is important in securing correct illumination, contrast, and depth of field;  a graduated scale indicates the approximate adjustment (size) of the aperture diaphragm corresponding to respective objectives.

3W LED with light intensity control provide cool, bright, and even illumination

Imaging

Trinocular microscope(20:80 splitting ratio) can be equipped with digital camera and LCD screen for photo and video documentation and image analysis.

Other Characters

Original integrated stand, rectangular shape and cast aluminum frame for minimum vibrations, maximum stability and  durability

Carrying handle integrated in the back of the stand for easy carrying

Arm and base made of one piece construction

Antifungal treatment prevents fungal growth

Optional Accessory

Dark field kit (Darkfield condenser N.A. 0.9 (Dry) for 4x-40x objective)

Available (not included)

Polarizing kit (Analyzer/Polarizer)

0.47x focus adjustable C-mount and 1x C-mount available (not included)

Camera Adapter CA-N1(Nikon), CA-O2(Olympus), CA-C3(Canon), CA-S4(Sony) available (not included)

DN Series Digital Eyepiece Camera

Advanced camera control;

Capturing high quality images. Great for observing live images on your screen and still images.

Simply install the ISCapture easy to use software. Compatible with Windows XP/7 /8(32 &64 bits) /Linux/ Mac

Acquisition of still images and video. Available image types: JPEG, BMP, TIFF and RAW.

Extend depth of focus (Focus Stacking)

Image management and image stitching

High dynamic range (HDR) function

Fluorescence imaging settings; fluorescence combination function for still images

Live image measurements; still image measurement

Pixel size(μm)

1.67×1.67

2.2×2.2

Effective pixels

10.0MP

5.0MP

Max. Resolution (H×V)

3664×2748

2592×1944

Scan mode

Progressive

Progressive

Shutter

Rolling shutter

Rolling shutter

Frame rate

3fps(3856 × 2764)

5fps(2592 × 1944)

8fps(1832 × 1370)

21fps(1280*960)

28fps (916 × 680，4 × 4Bin)

25fps (1024 × 768)

-- <
