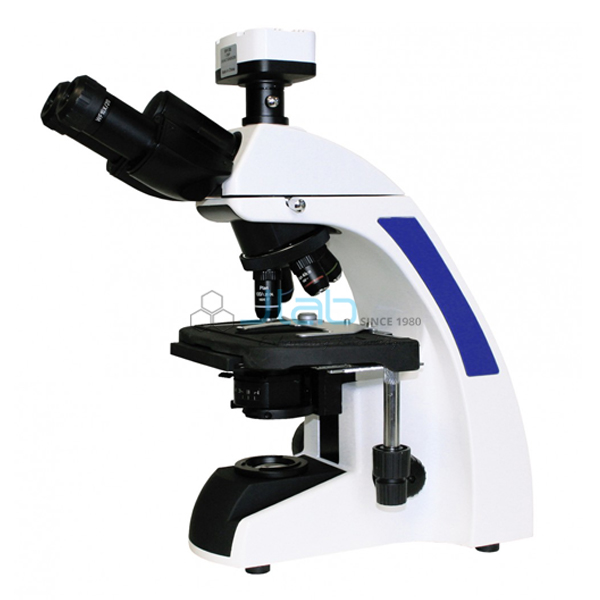

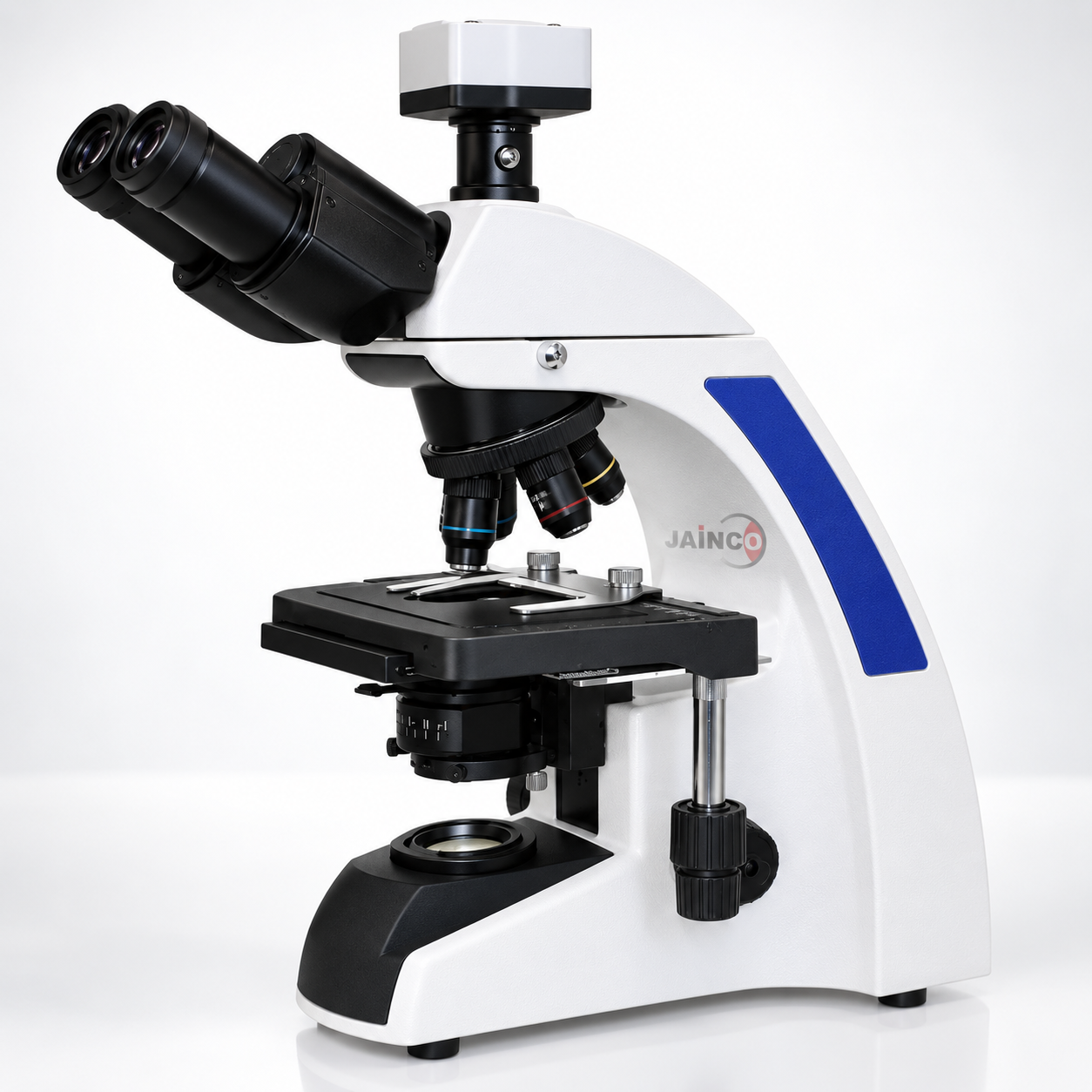

Digital Trinocular Microscope 5W LED Kohler Illumination

Product Code : JA-M-8077
Jainco Lab is a leading Digital Trinocular Microscope 5W LED Kohler Illumination Manufacturer,and suppliers in India, Digital Trinocular Microscope 5W LED Kohler Illumination Manufacturer,and suppliers in South Africa.Digital Trinocular Microscope 5W LED Kohler Illumination Suppliers in Mozambique,Digital Trinocular Microscope 5W LED Kohler Illumination, Digital Trinocular Microscope 5W LED Kohler Illumination Montenegro, Digital Trinocular Microscope 5W LED Kohler Illumination (Podgorica), Digital Trinocular Microscope 5W LED Kohler Illumination Morocco (Rabat), Digital Trinocular Microscope 5W LED Kohler Illumination Mozambique (Maputo), Digital Trinocular Microscope 5W LED Kohler Illumination Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nicaragua (Managua), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Romania (Bucharest), Rwanda (Kigali), Samoa (Apia), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Seychelles (Victoria), Sierra Leone (Freetown), Slovakia (Bratislava), Somalia (Mogadishu), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.), Uruguay (Montevideo), Uzbekistan (Tashkent), Venezuela (Caracas), Vietnam (Hanoi), Yemen (Sana'a), Zambia (Lusaka), Zimbabwe (Harare) .

Digital Trinocular Microscope 5W LED Kohler Illumination

Microscope Specifications:-

Viewing Head

JAab trinocular head which will not change the length of the eyepiece tubes when interpupillary distance adjustments are made

30° inclined and 360° rotatable, fully up or down swiveled eyepiece tubes to adjust the viewing height to meet individual requirements

Interpupillary adjustment of 48mm-75mm

Eyepiece

Widefield (WF)10x/22mm

High eyepoint, with eyeguard

Both eyepieces are diopter adjustable, which allows the image and reticule to be brought into focus at the same time.



Optional reticule eyepiece for measurement purposes; choice of 0.1mm/1cm grid, 0.1mm/1cm cross or plain cross hair available (not included)

Nosepiece

Revolving reversed quadruple objective nosepiece accepts four objectives which are color-coded, parcentered and parfocaled.

The nosepiece runs on ball bearings and has internal click stops so that the image remains centered after each change in magnification.

Objectives

Plan Achromatic DIN 4X/0.10 160/0.17

Plan Achromatic DIN 10X/0.25 160/0.17

Plan Achromatic DIN 40XR/0.65 160/0.17

Plan Achromatic DIN 100XR/1.25 oil 160/0.17

40XR and 100XR objectives are retractable which have resilient mounts for specimen protection

Focusing System

Low position coaxial coarse and fine focus knobs

37.7mm per coarse rotation

0.1mm per fine rotation, fine focus graduation of 1um

Focusing range 16mm

Tension adjustment eliminates focus drift

Stage

216mmx150mm built-in double layer mechanical stage

Smooth X/Y calibrated movement with cross travel range 7.5cm x 5.5cm

Non-extending rack

Graphite surface, rounded edges

Illumination

Built-in Kohler illumination with field diaphragm, provides uniformly bright and free-from-glare specimen illumination

N.A. 1.25 Abbe condensers which height is controlled by a rack and pinion gear system that allows the condenser focus to be adjusted for proper illumination of the specimen

Adjustable aperture  iris diaphragm incorporated into the condenser, which is important in securing correct illumination, contrast, and depth of field;  a graduated scale indicates the approximate adjustment (size) of the aperture diaphragm.

5w LED for optimum illumination and contrast

With light intensity control

Imaging

Trinocular phototube (50% vis, 50% doc) with 5MP/10MP digital eyepiece camera available to capture images and view live video of the specimen on a computer or screen.

0.5x C-mount included

Other characters

Ergonomically designed metal frame for stability and durability

Carrying handle integrated in the back of the stand for easy carrying

Arm and base made of one piece construction

Antifungal treatment prevents fungal growth

Cord holder for convenient storage

Optional Accessory

Available (not included)

Dark field kit

Polarizing kit

1x C-Mount

DN Series Digital Eyepiece Camera

Advanced camera control

Capturing high quality images. Great for observing live images on your screen and still images.

Simply install the ISCapture easy to use software. Compatible with Windows XP/7 /8(32 &64 bits) /Linux/ Mac

Acquisition of still images and video. Available image types: JPEG, BMP, TIFF and RAW.

Extend depth of focus (Focus Stacking)

Image management and image stitching

High dynamic range (HDR) function

Fluorescence imaging settings; fluorescence combination function for still images

Live image measurements; still image measurement



Camera Specification:-

Pixel size(μm)

1.67 × 1.67

2.2 × 2.2

Effective pixels

10.0MP

5.0MP

Max. Resolution (H×V)

3664 × 2748

2592 × 1944

Scan mode

Progressive

Progressive

Shutter

Rolling shutter

Rolling shutter

Frame rate

3fps (3856 × 2764)

5fps (2592 × 1944)

8fps (1832 × 1370)

21fps (1280 x 960)

28fps (916 × 6804 × 4Bin)

25fps (1024 × 768)

--

38fps (640 × 480)

Color depth

24bit

24bit

Exposure Control

Manual/Auto

Manual/Auto

Integration Time (S)

0.001 - 1

0.001 - 0.8

White Balance

Manual/Auto

Manual/Auto

Operating humidity

45% - 85%

45% - 85%

Operating system

Windows / Linux / Mac

Windows / Linux / Mac

Data interface

USB2.0/480Mb/s

USB2.0/480Mb/s
