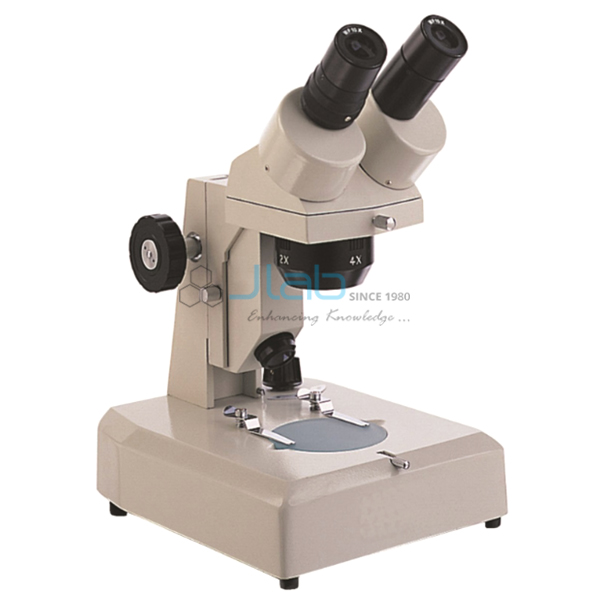

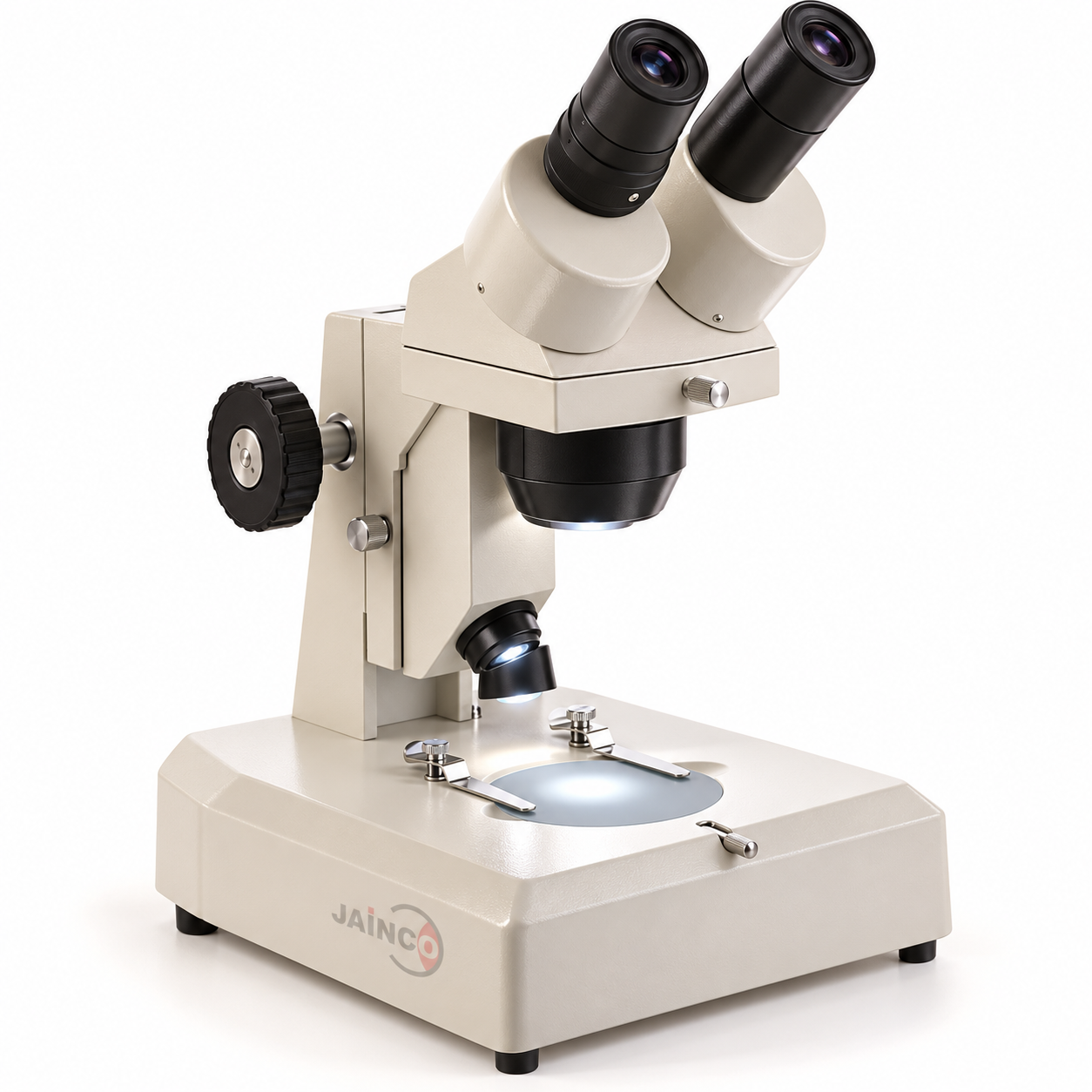

Dual Power Binocular Stereo Microscope Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8108
Jainco Lab is a leading Dual Power Binocular Stereo Microscope Manufacturer,and suppliers in India, Dual Power Binocular Stereo Microscope Manufacturer,and suppliers in South Africa.Dual Power Binocular Stereo Microscope Suppliers in Mozambique,Dual Power Binocular Stereo Microscope A quality product from Jainco lab ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.
|
Magnification |
Standard magnification: 10X & 20X; 10X & 30X; 20X & 40X |
|
Viewing Head |
Binocular, 45° inclined and 360° rotatable. |
|
Interpupillary distance adjustable from 55mm-75mm. Synchronized bilateral inter-pupillary distance adjustment. |
|
|
Diopter adjustment in left ocular tube; right tube is fixed |
|
|
Eyepiece |
10X wide-field |
|
Paired 10X (Optional eyepieces WF15X, WF20X) |
|
|
The eyepieces can be locked on with setscrew to prevent students from removing them. |
|
|
Optics Body and objectives |
The optics body is equipped with paired lenses (1X, 2X), (1X, 3X), or (2X, 4X) for three-dimensional viewing. Magnification can be switched to the other by rotating the turret. |
|
Objective magnification: choice of (2X & 4X), (1X & 3X), or (1X & 2X) |
|
|
Working Distance |
Standard working distance of 80mm |
|
Focusing Arm |
Heavy duty rack and pinion focusing with slip clutch |
|
Two focusing knobs with tension adjustment, 90mm focus distance range |
|
|
Stage |
Includes one 75mm frost glass stage plate and one 75mm reversible black/white stage plate. |
|
Locked-on spring loaded stage clips |
|
|
Illumination |
Top light: diagonally adjustable top light. Brightness can be continuously adjusted. |
|
Bottom light: transmitted light. Brightness can be continuously adjusted. |
|
|
Built in illumination system allows three ways of illumination: transmitted, incident, or dual lighting. |
|
|
Main On/off power switch. Besides, top and bottom lights can be switched on/off respectively with separate intensity control |
|
|
Design |
14'' in height, with base 7'' x 8.75'' |
