Series Monocular Microscope Manufacturer,Supplier and Exporter in India

Product Code : JA-M-8062
Jainco Lab is a leading Series Monocular Microscope Manufacturer,and suppliers in India, Series Monocular Microscope Manufacturer,and suppliers in South Africa.Series Monocular Microscope Suppliers in Mozambique,Series Monocular Microscope in Supplier Kenya, Southren African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia, Kenya, Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

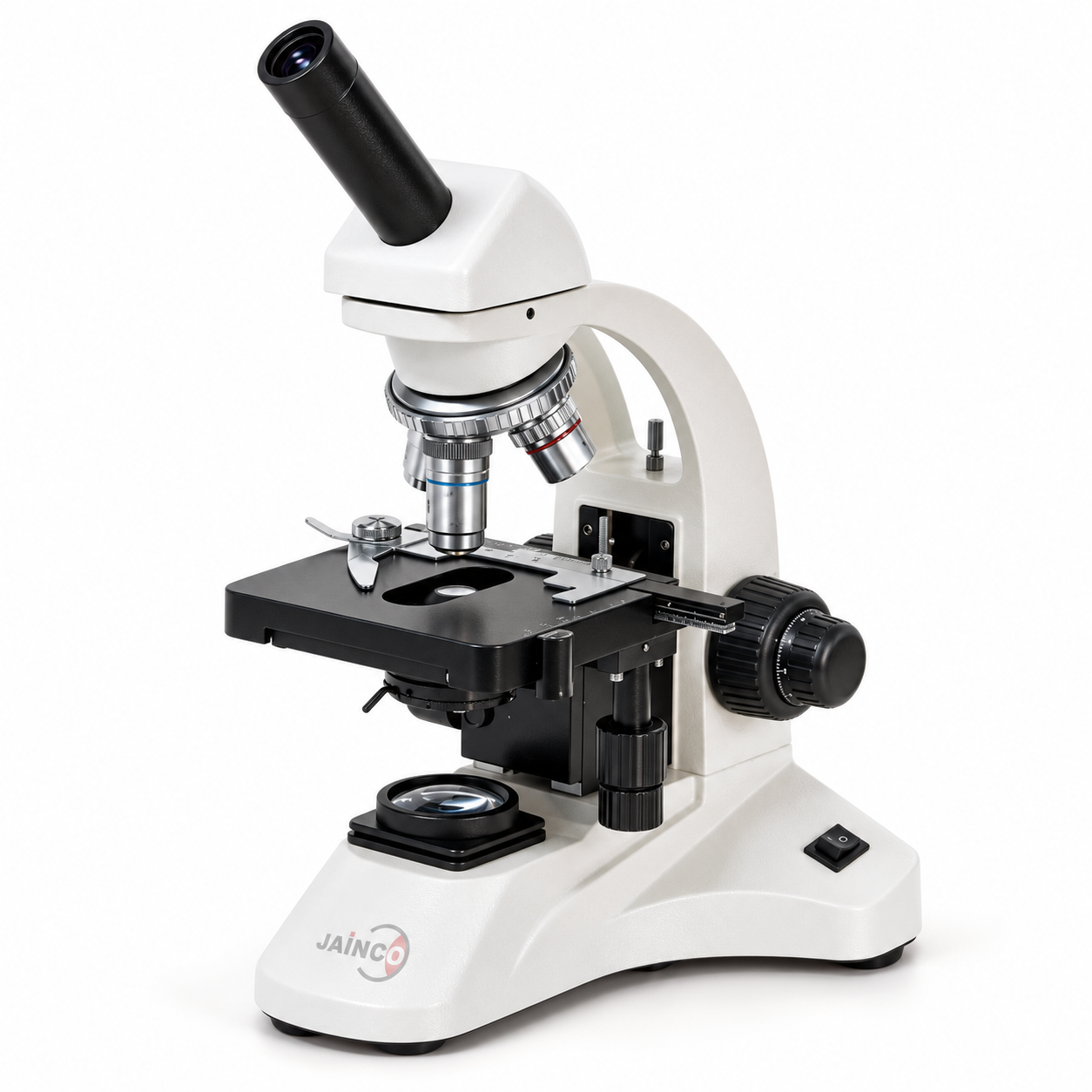

Series Monocular Microscope

Description:

Jaincolab Series Microscopes feature a unique euro style base design, and an ergonomic arm for convenient transport and a sturdy aluminum die-cast stand for durability.

Its LED illumination is a cooler, white light source with a low voltage providing hours of use for your microscope.

It comes with DIN objectives combing with a 10 wide-field eyepiece, which offers a magnification of 40X, 100X, 400X and 1000X.

This is a standard microscope offered at a great price.

They are achromatic, color-coded, parcentered and parfocal.

Grade 9 through college level application.

The arm and base are made of one piece construction.

It provides an excellent optics for biology studies as well as laboratory applications.

Specification:-

Viewing Head	Monocular head, 360° rotating inclined at 45°
Eyepiece	Locked-on 10X wide-field eyepiece with calibrated pointer; locked on for security to prevent misplacement or damage
Nosepiece	4-position reverse nosepieces with positive click stops
Objectives	Achromatic DIN objectives: 4X, 10X, 40XR, and 100XR (oil immersion); they color-coded, parcentered, and parfocaled; the 40XR and 100XR objectives are retractable (R)
Focusing System	Coaxial coarse and fine focusing control
	Rack and pinion coarse focusing with slip clutch at both ends of travel to prevent damage to the microscope gears
	Safety rack stop ensures delicate specimens and objective lens are not damaged
	Tension adjustment eliminates focus drift
Stage	Built-in X-Y mechanical stage 12.5cm x 11.5cm with 0.1mm increments for precise measurement
	With X-Y control torque
	Smooth X/Y calibrated movement with cross travel range 7.4cm x 3cm
Condenser	Focusable 1.25 N.A. Abbe condenser
	Can be moved up and down controlled by a rack and pinion system
	Iris diaphragm that has clear optical plastic protection to protect diaphragm from dust and foreign objectives
	Turn wheel control makes it easy to adjust the size of central aperture of Iris diaphragm to match the N.A. of the objective in use
Illumination	Built-in LED illumination
	Light intensity control helps to achieve better contrast
	LED bulb lifespan is 10,000 hours
	Three wire-grounded power cord for corded models only
Design	Full 14.5" in height with 9.2" x 8" base, an ergonomic arm for convenient transport
