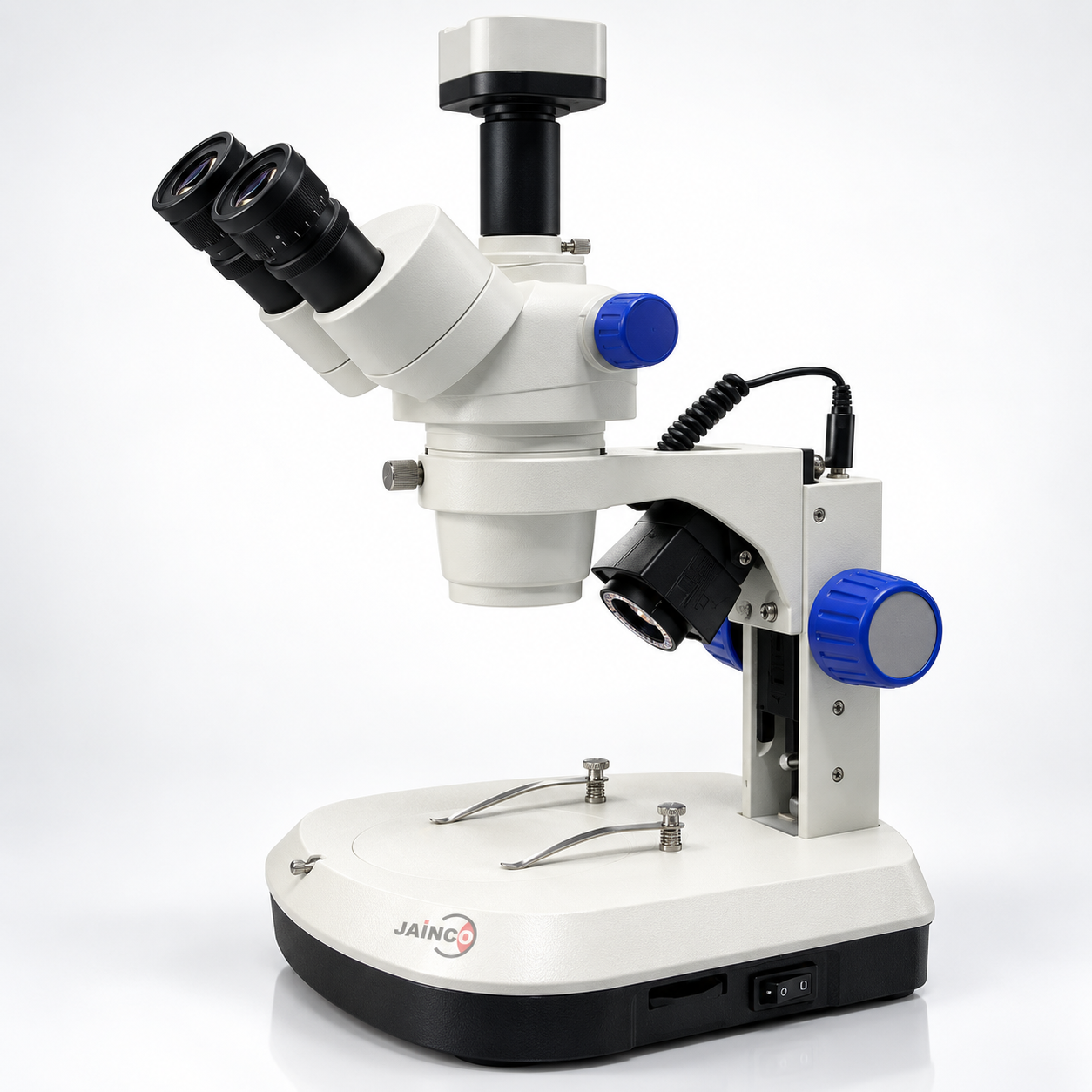

Super Widefield Digital Trinocular Zoom Stereo Microscope Manufacturer,Supplier and Exporter in India

Magnification

Standard magnification: 6.6X~50X. Magnification range can be  3.3X~200X with auxiliary objectives and  optional eyepieces

Viewing Head

Trinocular head (20/80 light splitting ratio), 45° inclined and 360° rotatable.

Interpupillary distance adjustable from 54mm-76mm.

Eyepiece

10X wide-field, high eyepoint

Two diopter adjustment of +/-5 on both eyepieces

Paired 10X/23mm, optional eyepieces WF20X/12mm and reticle eyepieces WF10X/23mm available (not included)

Eyeshades on both eyepieces

The eyepieces can be locked on with set screws to prevent students from removing them.

Zooming Body

Standard objective zooming magnification: 0.66X ~ 5X, Zoom ratio: 1:7.6, parfocal, working distance 110mm

Ergonomically positioned dual, graduate, bilateral zoom control knobs

Auxiliary objectives: 0.5X/189mm working distance, 2.0X/36mm working distance available (not included)

Working Distance

Standard working distance of 110mm, working distance range 36mm~189mm with auxiliary lens

Focusing Arm

Heavy duty rack and pinion focusing with slip clutch

Two focusing knobs with tension adjustment,  140mm focus distance range

Stage

Includes one 99.5mm glass stage plate and one 99.5mm reversible black/white stage plate.

Locked-on spring-mounted stage clips

2D Travelling stage available (not included)

Illumination

Top light: diagonally adjustable top incident LED light. Brightness can be continuously adjusted independently

Bottom light: transmitted LED light. Brightness can be continuously adjusted independently

Built-in illumination system allows three ways of illumination: transmitted, incident, or dual lighting.

Top and bottom lights are controlled respectively

Imaging

Trinocular head available 20/80 light splitting ratio. Trinocular synchronization imaging, eyepiece observation synchronized with digital imaging. The splitting of the light does not need to be switched.

Built-in digital imaging unit, dependable performance, and convenient operation.

0.7X focus adjustable C-mount, 0.5X focus adjustable C-mount, and 0.35X focus adjustable C-mount

DN Series Digital Eyepiece Camera

Advanced camera control;

Capturing high-quality images. Great for observing live images on your screen and still images.

Simply install the IS Capture easy to use the software. Compatible with Windows XP/7 /8 (32 & 64 bits) /Linux/ Mac

Acquisition of still images and video. Available image types: JPEG, BMP, TIFF, and RAW.

Extend depth of focus (Focus Stacking)

Image management and image stitching

High dynamic range (HDR) function

Fluorescence imaging settings; fluorescence combination function for still images

Live image measurements; still image measurement
