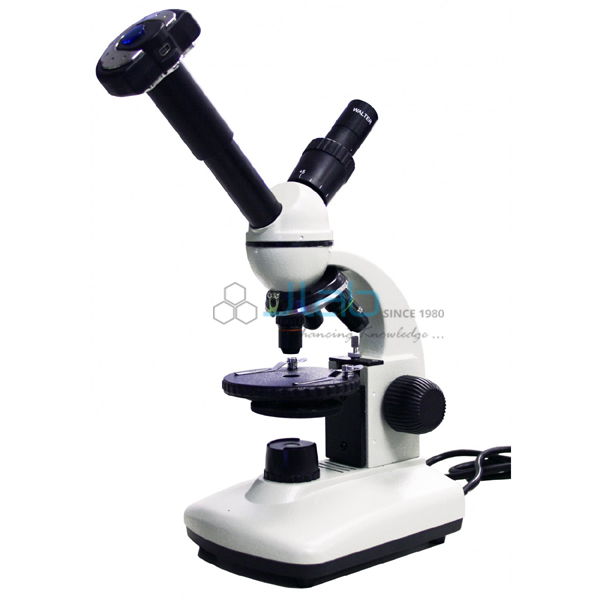

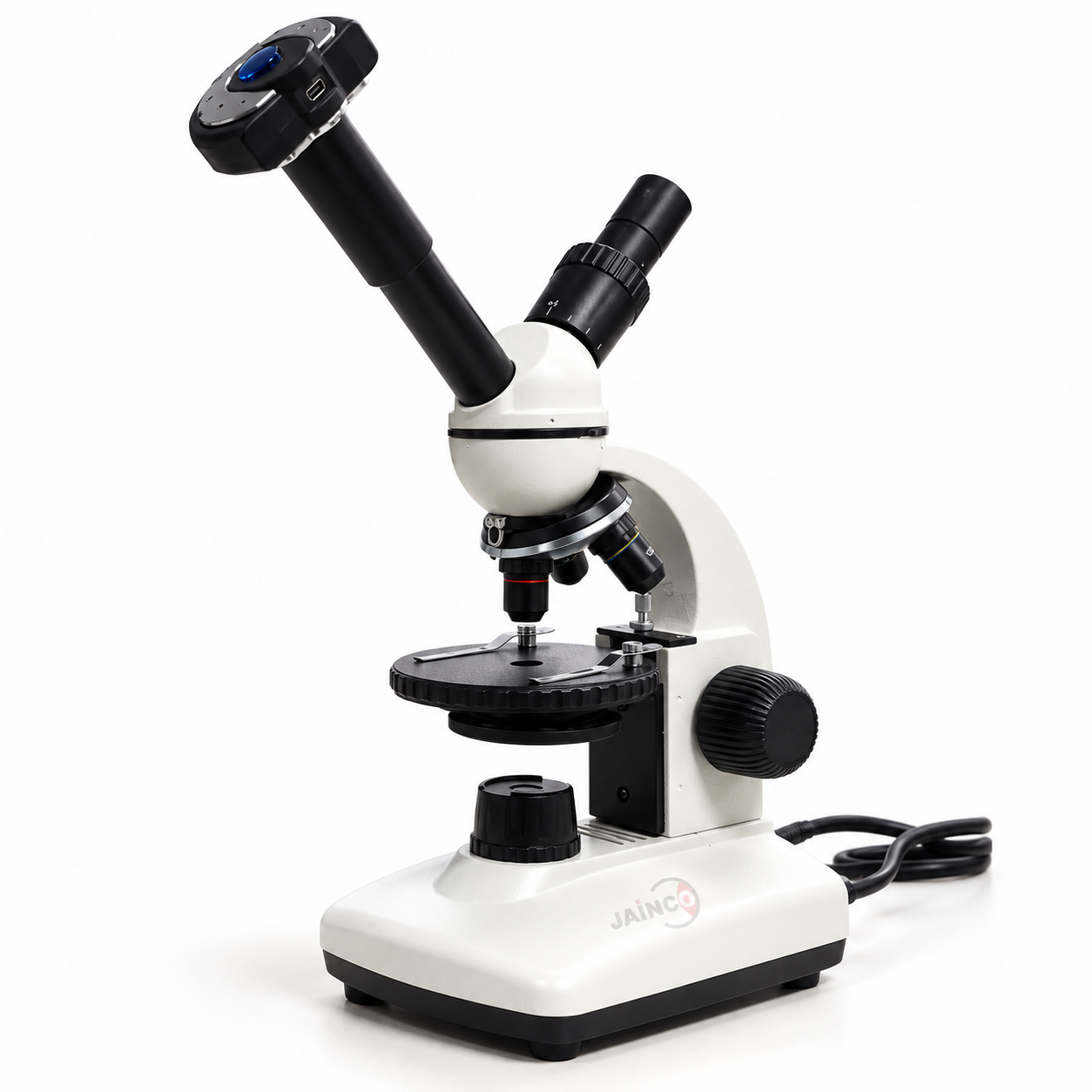

Digital Camera Microscope with Dual View Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8048
Jaincolab is a leading Digital Camera Microscope with Dual View Manufacturer,and suppliers in India, Digital Camera Microscope with Dual View Manufacturer,and suppliers in South Africa, Digital Camera Microscope with Dual View Algeria (Algiers), Digital Camera Microscope with Dual View Angola (Luanda), Digital Camera Microscope with Dual View Argentina (Buenos Aires), Digital Camera Microscope with Dual View Armenia (Yerevan), Digital Camera Microscope with Dual View Australia (Canberra), Digital Camera Microscope with Dual View Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).
Specifications – Microscopes:-
Viewing Head |
Dual View head with a digital camera 1.3/3.0MP, 360° rotating inclined at 45° |
Eyepiece |
Locked-on 10X wide-field eyepiece with pointer; locked on for security to prevent misplacement or damage |
Reverse Nosepiece |
3-position reverse nosepieces with positive click stops |
Objectives |
Achromatic objectives: 4X, 10X, 40XR (retractable); they are color-coded and parcentered |
Focusing System |
Coarse focus control |
Rack and pinion focusing with slip clutch at both ends of travel to prevent damage to the microscope gears |
|
Safety rack stop ensures delicate specimens and the objective lens are not damaged |
|
Stage |
3.5” round gliding stage 360° rotation with stage clips |
Illumination |
Built-in LED illumination with on/off switch |
LED bulb lifespan is 10,000 hours |
|
6 hole rotating disc diaphragm |
|
Rotates exposing holes with various apertures to help achieve better resolution |
|
Large apertures for lower magnifications; Smaller apertures for higher magnifications |
|
Three wire-grounded power cord for corded model |
|
Design |
Full 12" in height with a 6.5" x 5.25" base |
All metal construction, modern euro design |
|
Warranty |
Limited 5 year warranty for microscopes, one year warranty for digital camera |
Specifications - Digital Camera:-
Image Sensor |
1/3" COMS |
1/2" COMS |
Pixel size (μm) |
3.6 × 3.6 |
3.18 × 3.18 |
Effective pixels |
1.3MP |
3.0MP |
Max. resolution (H×V) |
1280 × 1024 |
2048 × 1536 |
Frame Rate |
640 × 480 Pixels/30fps |
640 × 480 Pixels/30fps |
White Balance |
Manual/Auto |
Manual/Auto |
Sensitivity |
1.0V/Lux-sec |
1.0V/Lux-sec |
Image Format |
JPG/BMP |
JPG/BMP |
