Dual Power LED Stereo Microscope with Pillar Stand Manufacturer,Supplier and Exporter in India

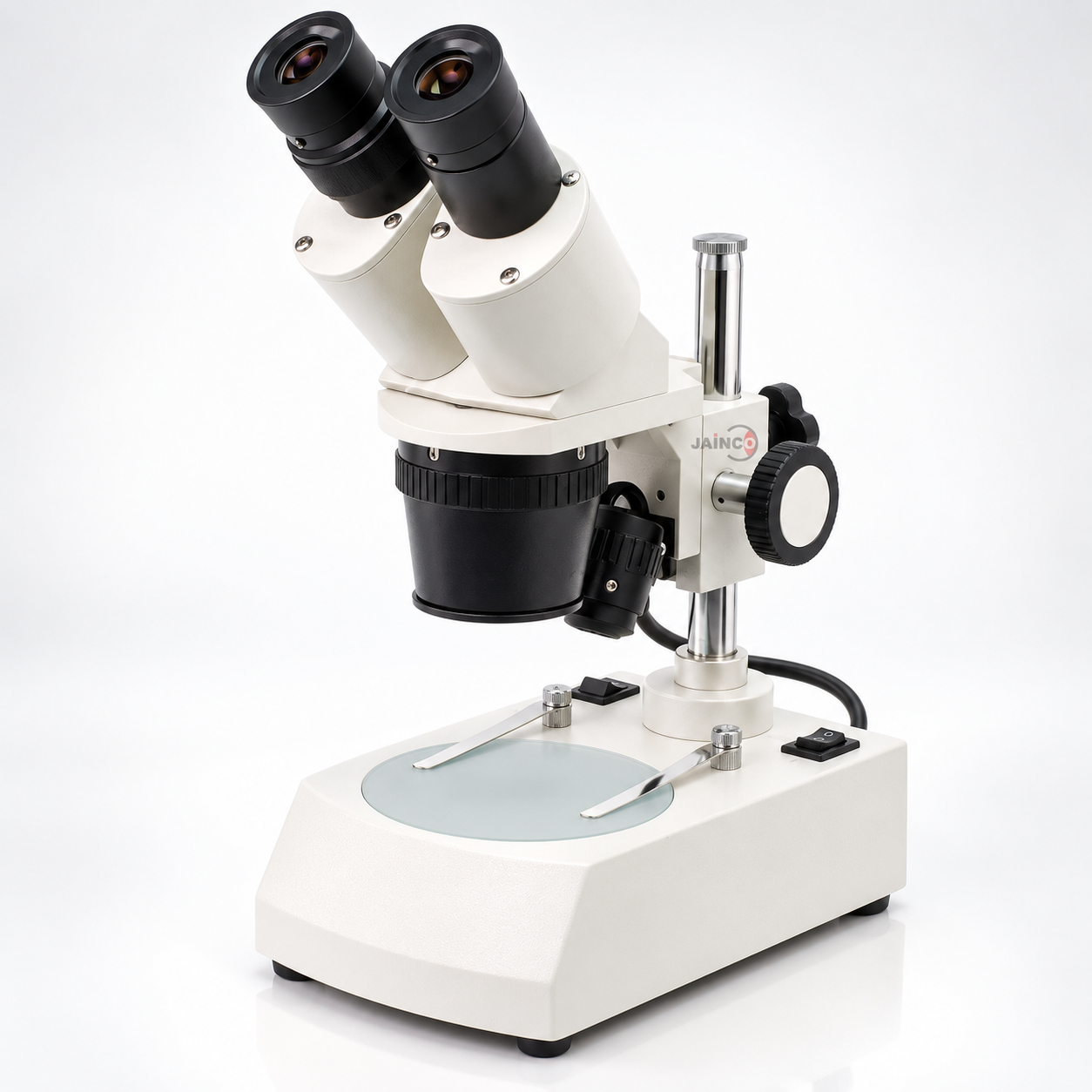

Dual Power LED Stereo Microscope with Pillar Stand

Product Code : JA-M-8101

Dual Power LED Stereo Microscope with Pillar Stand
Description:
All the quality features and versatility of larger stereo models in a compact size.
Rugged and dependable, this microscope delivers a 3 dimensional, un-reversed image with great resolution, brightness, clarity and is engineered for ease of use and operating simplicity.
Suitable for middle and secondary level instruction.
Choose low or high magnification by simply turning the objective turret.

Specification:-

Magnification

Choice of 10X & 20X, 10X & 30X or 20X & 40X

Viewing Head

Binocular, 45° inclined

Post mounted head rotates 180° and is adjustable for various working distance

Interpupillary distance adjustable from 51mm-75mm.

Diopter adjustment on left ocular tube

Eyepiece

Paired 10X wide-field, eyepieces can be upgraded to 15X or 20X at no charge

Eyepieces include two rubber eye guards for comfortable viewing

Both eyepieces can be locked on with setscrew to prevent students from removing them.

Objectives

Achromatic objectives are parfocaled and parcentered

Choice of (1X & 2X) (1X & 3X) and (2X & 4X)

Focusing Arm

Rack and pinion focusing with safety stop and tension adjustment

Two focusing knobs

Stage

Includes one 95mm glass stage plate and one 95mm reversible black/white stage plate.

Locked-on stage clips

Illumination

Top light: diagonally adjustable top incident LED light.

Bottom light: transmitted LED light.

Built in illumination system allows 3 ways of illumination: transmitted, incident, or dual lighting

Main On/off power switch,  top/bottom lighting switch control separately

3-wire safety cord
