Dual View with Digital Camera Coaxial Focusing Microscope Manufacturer,Supplier and Exporter in India

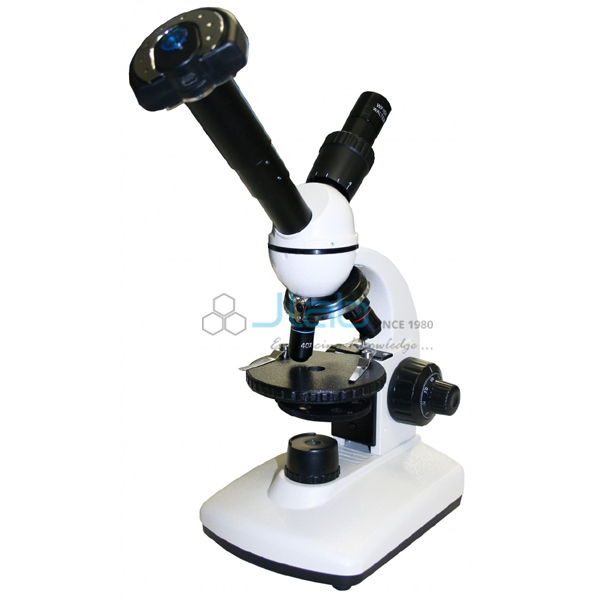

Dual View with Digital Camera Coaxial Focusing Microscope

Product Code : JA-M-8054
Jainco Lab is a leading Dual View with Digital Camera Coaxial Focusing Microscope Manufacturer,and suppliers in India, Dual View with Digital Camera Coaxial Focusing Microscope Manufacturer,and suppliers in South Africa.Dual View with Digital Camera Coaxial Focusing Microscope Suppliers in Mozambique,Dual View with Digital Camera Coaxial Focusing Microscope, Dual View with Digital Camera Coaxial Focusing Microscope Montenegro, Dual View with Digital Camera Coaxial Focusing Microscope (Podgorica), Dual View with Digital Camera Coaxial Focusing Microscope Morocco (Rabat), Dual View with Digital Camera Coaxial Focusing Microscope Mozambique (Maputo), Dual View with Digital Camera Coaxial Focusing Microscope Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nicaragua (Managua), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Romania (Bucharest), Rwanda (Kigali), Samoa (Apia), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Seychelles (Victoria), Sierra Leone (Freetown), Slovakia (Bratislava), Somalia (Mogadishu), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.), Uruguay (Montevideo), Uzbekistan (Tashkent), Venezuela (Caracas), Vietnam (Hanoi), Yemen (Sana'a), Zambia (Lusaka), Zimbabwe (Harare) .

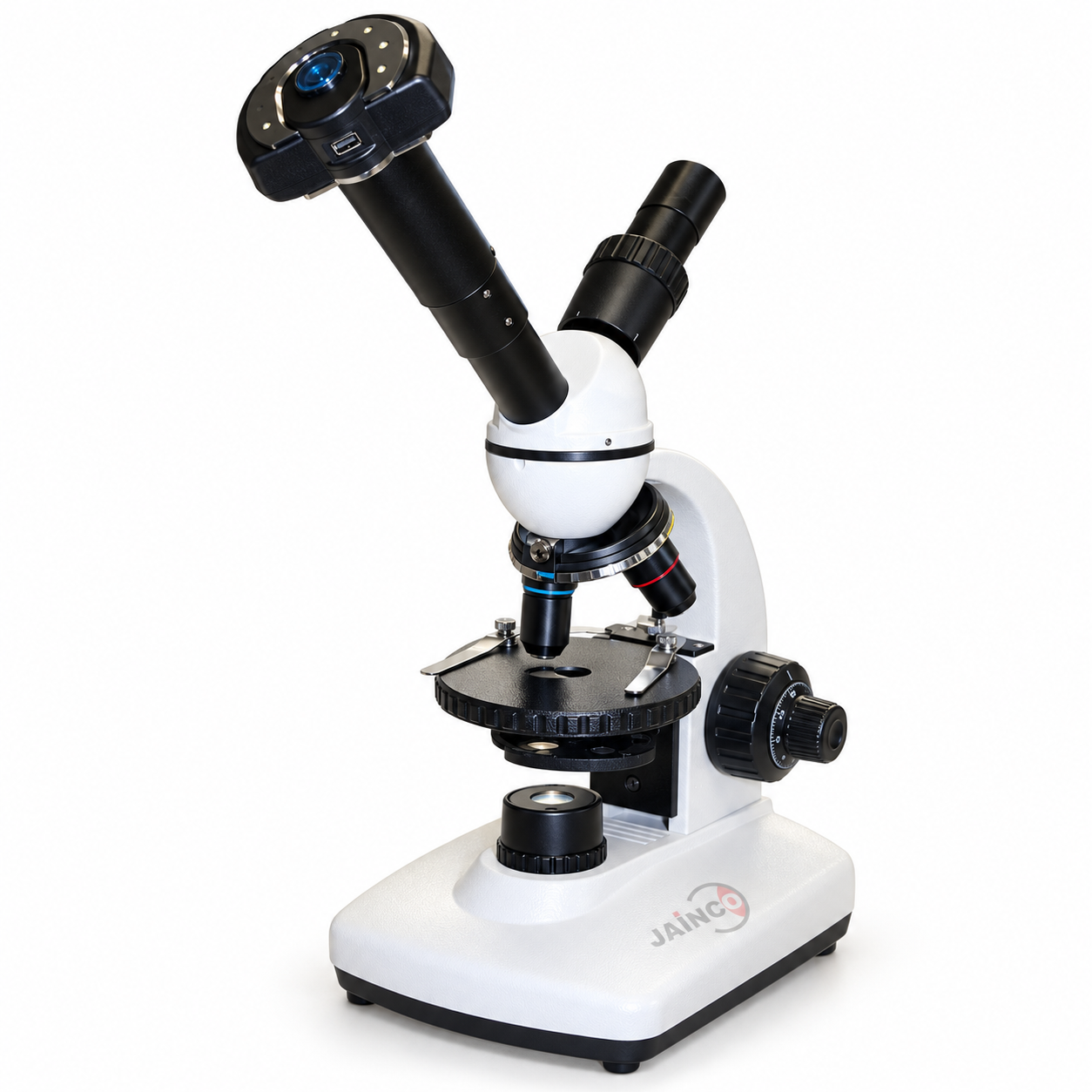

Dual View with Digital Camera Coaxial Focusing Microscope
Specification:-



Viewing Head

Dual View head with a digital camera 1.3/3.0MP, 360° rotating inclined at 45°

Eyepiece

Locked-on 10X wide-field eyepiece with pointer; locked on for security to prevent misplacement or damage

Nosepiece

3 position reverse nosepieces with positive click stops

Objectives

Achromatic objectives: 4X, 10X, 40XR (retractable); they are

color-coded, parcentered and parfocaled

Focusing System

Coaxial coarse and fine focus control

Rack and pinion focusing with slip clutch at both ends of travel to prevent damage to the microscope gears

Safety rack stop ensures delicate specimens and the objective lens are not damaged

Stage

3.5” round gliding stage 360° rotation with stage clips

Corded models

Three wire-grounded power cord for corded models only

Illumination

Built-in LED illumination with on/off switch

LED bulb lifespan is 10,000 hours

6 hole rotating disc diaphragm

Rotates exposing holes with various apertures to help achieve better resolution

Large apertures for lower magnifications. Smaller apertures for higher magnifications

Design

Full 12" in height with a 6.5" x  5.25" base

All metal construction, modern euro design





Model

DG1.3

DG3.0

Image Sensor

1/3" COMS

1/2" COMS

Pixel size (μm)

3.6 × 3.6

3.18 × 3.18

Effective pixels

1.3MP

3.0MP

Max.resolution (H×V)

1280 × 1024

2048 × 1536

Frame Rate

640 × 480 Pixels/30fps

640 × 480 Pixels/30fps

White Balance

Manual/Auto

Manual/Auto

Sensitivity

1.0V/Lux-sec

1.0V/Lux-sec

Image Format

JPG/BMP

JPG/BMP
