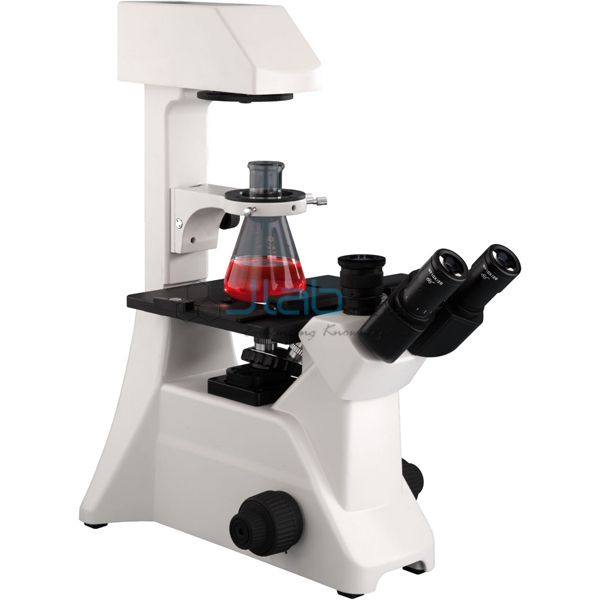

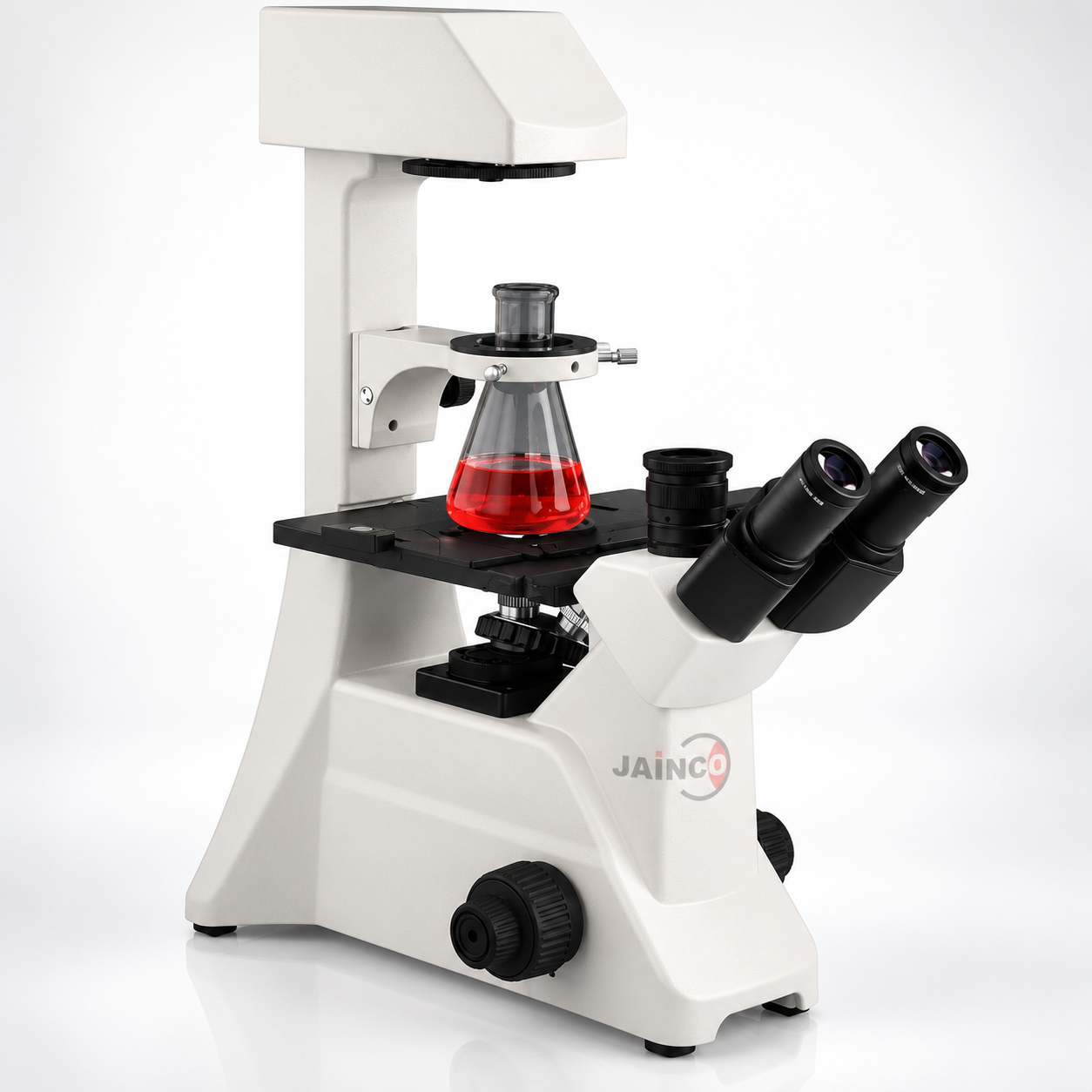

Inverted Microscope Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8147
Jaincolab is a leading Inverted Microscope Manufacturer,and suppliers in India, Inverted Microscope Manufacturer,and suppliers in South Africa, Inverted Microscope Algeria (Algiers), Inverted Microscope Angola (Luanda), Inverted Microscope Argentina (Buenos Aires), Inverted Microscope Armenia (Yerevan), Inverted Microscope Australia (Canberra), Inverted Microscope Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).
|
Viewing Head |
Jaincolab Tinocular head ensures eyepiece tube length when interpupillary distance adjustments are made |
|
100/0 or 20/80 light distribution (Binocular/ Camera port) |
|
|
45° inclined |
|
|
Eyepiece |
Wide field (WF)10x/20mm; High eyepoint |
|
Third centering piece included |
|
|
Nosepiece |
Quadruple objective nosepiece accepts four objectives |
|
The nosepiece runs on ball bearings with internal click stops so that the image remains centered after each magnification change. |
|
|
Filter |
Blue, green and gray |
|
Objectives |
10X Long working distance, plan objective, W.D.=7.9mm |
|
25X Long working distance, plan objective, W.D.=5.0 mm |
|
|
40X Long working distance, plan objective, W.D.=3.0mm |
|
|
Phase Contrast Objective |
25X, Ph+, Long working distance, plan objective, W.D.=5.0mm |
|
25X, Relief Phase Slide |
|
|
Focusing System |
Low position coaxial coarse and fine focus knobs |
|
Stage |
Stage size: 206mmx170mm |
|
Smooth X/Y calibrated movement with cross travel range: 128mm x 80mm ( left or right operation exchangeable) |
|
|
Condenser |
Slide Relief Phase Contrast Condenser N.A.0.35 W.D.=45mm |
|
Illumination |
Built-in Kohler illumination with field diaphragm, provides uniformly bright light |
|
6V/20W Halogen lamp |
|
|
Light intensity control |
|
|
Design |
Ergonomically designed metal frame for stability and durability |
|
Arm and base made from one piece construction |
|
|
Antifungal treatment prevents fungal growth |
