Digital Trinocular Microscope With LED Illumination Series 40X-1000X Manufacturer,Supplier and Exporter in India

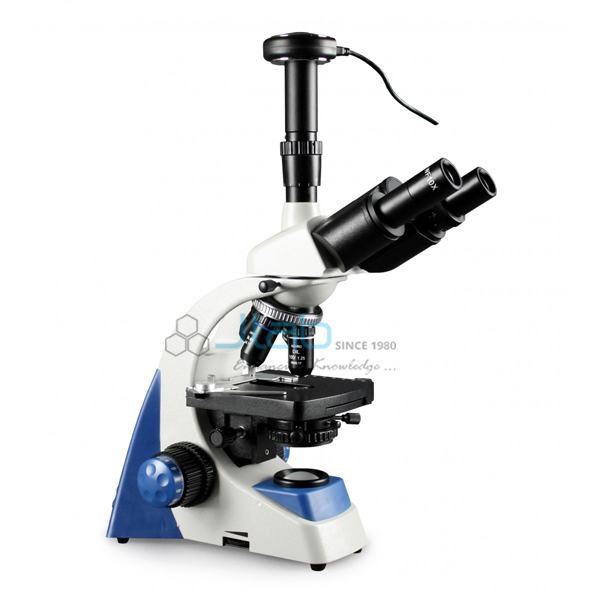

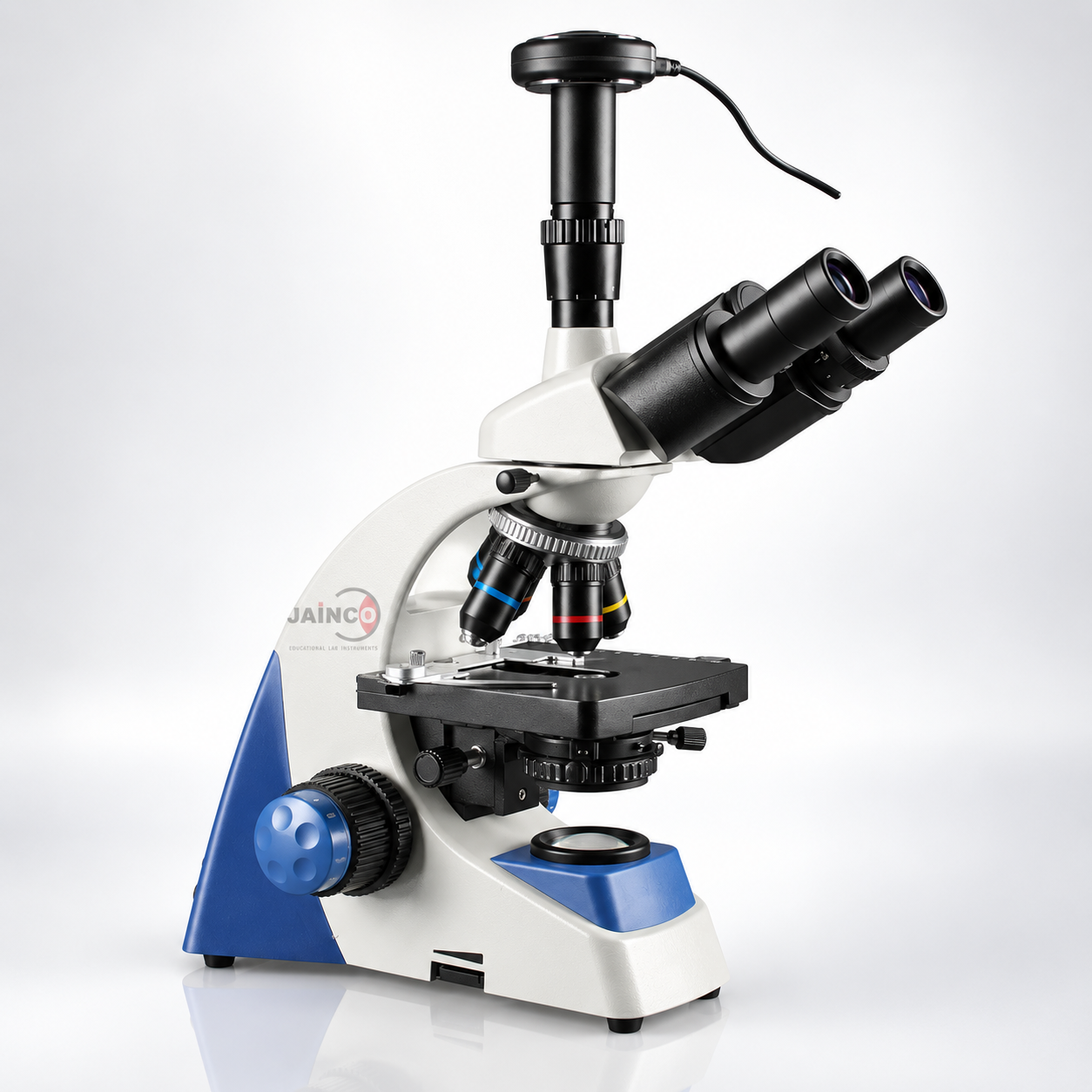

Digital Trinocular Microscope With LED Illumination Series 40X-1000X

Product Code : JA-M-8064

Digital Trinocular Microscope With LED Illumination Series 40X-1000X
Description:
This Siedentopf trinocular microscope is ideal for use at the senior high school and college level, or for use in veterinary and medical applications.
The trinocular port allows you to connect the 1.3-megapixel digital eyepiece camera using the included C-mount relay lens, to broadcast images of the specimen being observed.
The adjustable interpupillary distance ranges from 54mm to 76mm, and it offers four levels of magnification, ranging from 40x to 1000x.
It offers USB 2.0 plug-and-play compatibility and comes with a user-friendly imaging software.

Standard DIN achromatic objectives are parfocal, parcentered, and color-coded to provide sharp, color-corrected images.
The ball-bearing driven, reversed nosepiece with internal click-stops, guarantee parcentration and repeatability with every magnification change.
The double layer built-in mechanical stage with a low-positioned control knob allows for smooth and comfortable specimen movement.
The coaxial coarse and fine focusing knobs are positioned low on the bracket, near the base, making certain that adjustments are made with maximum stability and minimum strain.

Specifications:-

Head

Trinocular, 30° inclined, rotates 360°  (54-76mm interpupillary adjustment)

Eyepiece

WF 10x with pointer

Trinocular Port

C-mount ready

Magnification

40x, 100x, 400x, 1000x

Objective Lens

4x, 10x, 40xS, 100xS oil DIN achromatic

Condenser

1.25 N.A. Abbe lens

Diaphragm

Iris diaphragm  with a swing-out filter holder

Focusing

Coaxial coarse and fine focusing with gear movement for smooth operation

Stage

Double layer built-in mechanical stage with a pair of stage clips

Light Source

LED Illumination with intensity control

Power

110V



Camera Specifications

Resolution

1.3 megapixel   (1280 x 1024 Max Resolution)

Frame Rate

30 fps (640 x 480)

Sensitivity

1.0V/Lux-sec

Image Sensor

” COMS

White Balance

Manual / Auto

Image Format

JPEG, BMP

Compatibility

Windows XP, Vista, 7, 8, 10

Interface

USB 2.0
