Inverted Phase Contrast Microscope Manufacturer,Supplier and Exporter in India

Product Code : JA-M-8149
Jainco Lab is a leading Inverted Phase Contrast Microscope Manufacturer,and suppliers in India, Inverted Phase Contrast Microscope Manufacturer,and suppliers in South Africa.Inverted Phase Contrast Microscope Suppliers in Mozambique,Inverted Phase Contrast Microscope in Supplier Kenya, Southren African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia, Kenya, Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

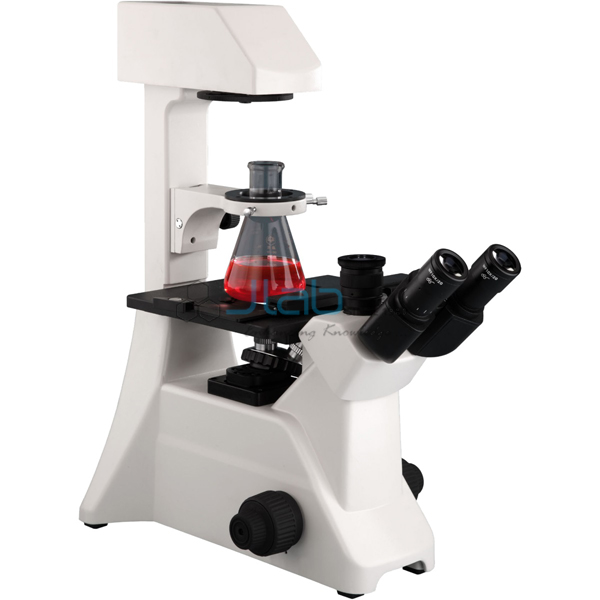

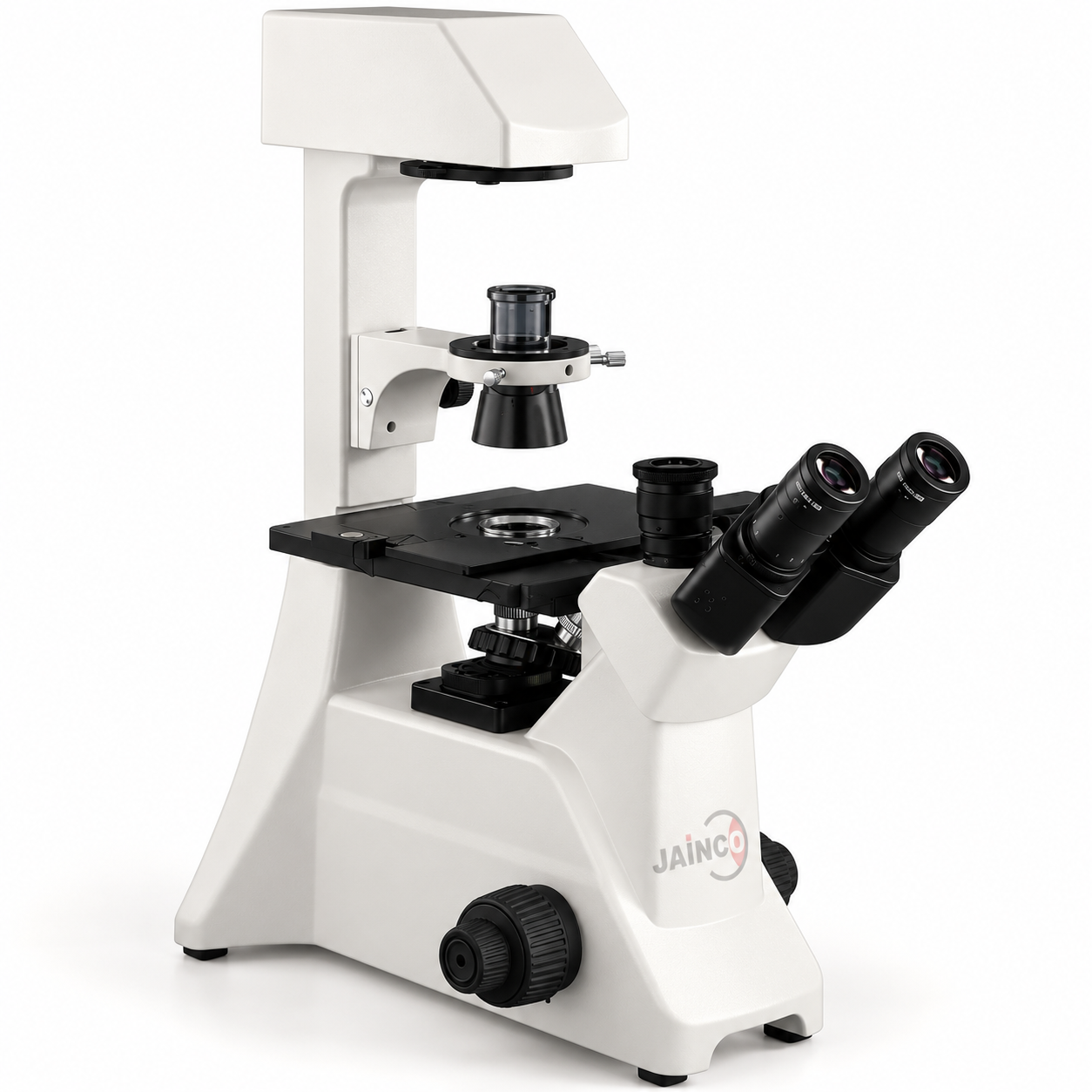

Inverted Phase Contrast Microscope

Description:-

Microscope comes with phase contrast objectives and condenser with annular spot, 35mm and 65mm culture dish holders, and a trinocular photo port which allows the user to capture images with an add-on camera

Jaincolab Inverted Microscope offers versatility at a great price for the college, university or clinical user.

Ideal for routine viewing of cell cultures, this microscope comes standard with high-quality plan objectives for exceptional image quality.

Specification:-

Viewing Head	Jaincolab Tinocular head ensures eyepiece tube length when interpupillary distance adjustments are made
	100/0 or 20/80 Light distribution (Binocular/ Camera port)
	45° inclined
Eyepiece	(2 pcs.) Wide field (WF)10x/20mm; High eyepoint
	(2 pcs.) Wide field (WF)16x/13mm; High eyepoint
	(1 pcs.) 0.1mm Recticle (WF)10X
	(1 pcs.) Centering eyepiece
C-mount	1X C-mount
Nosepiece	Quadruple objective nosepiece accepts four objectives
Nosepiece	The nosepiece runs on ball bearings with internal click stops so that the image remains centered after each magnification change.
Filter	Blue, green and gray
Objectives	4X Long working distance, plan objective, W.D.=7.9mm
	25X Long working distance, plan objective, W.D.=5.0 mm
	40X Long working distance, plan objective, W.D.=3.0mm
Phase Contrast Objective	10X, Ph+, Long working distance, plan objective, W.D.=5.0mm
	25X, Ph+, Long working distance, plan objective, W.D.=5.0mm
	40X, Ph+, Long working distance, plan objective, W.D.=5.0mm
	10X, 25X, 40X Annular Spot Adjustable wrench
Focusing System	Low position coaxial coarse and fine focus knobs
Stage	Stage size: 206mmx170mm
	Smooth X/Y calibrated movement with cross travel range: 128mm x 80mm ( left or right operation exchangeable)
	35mm& 65mm Culture Dish Holders
Condenser	Turret relief phase contrast condenser with N.A. 0.35 W.D.= 45mm
Illumination	Built-in Kohler illumination with field diaphragm, provides uniformly bright light
	6V/20W Halogen lamp
	Light intensity control
Design	Ergonomically designed metal frame for stability and durability
	Arm and base made from one piece construction
	Antifungal treatment prevents fungal growth
