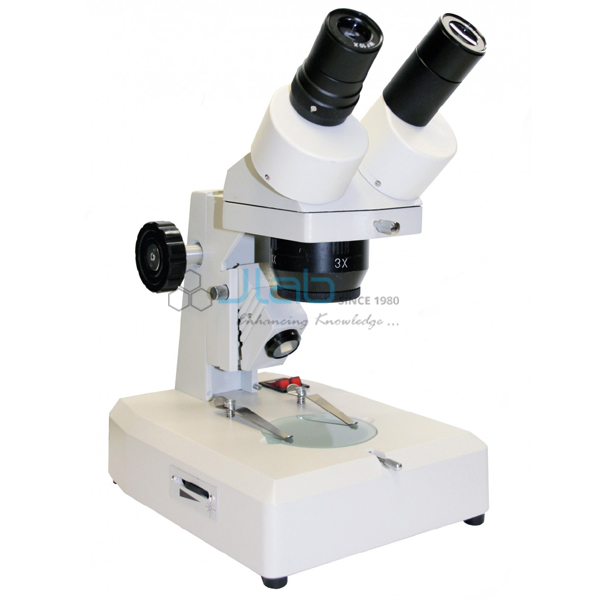

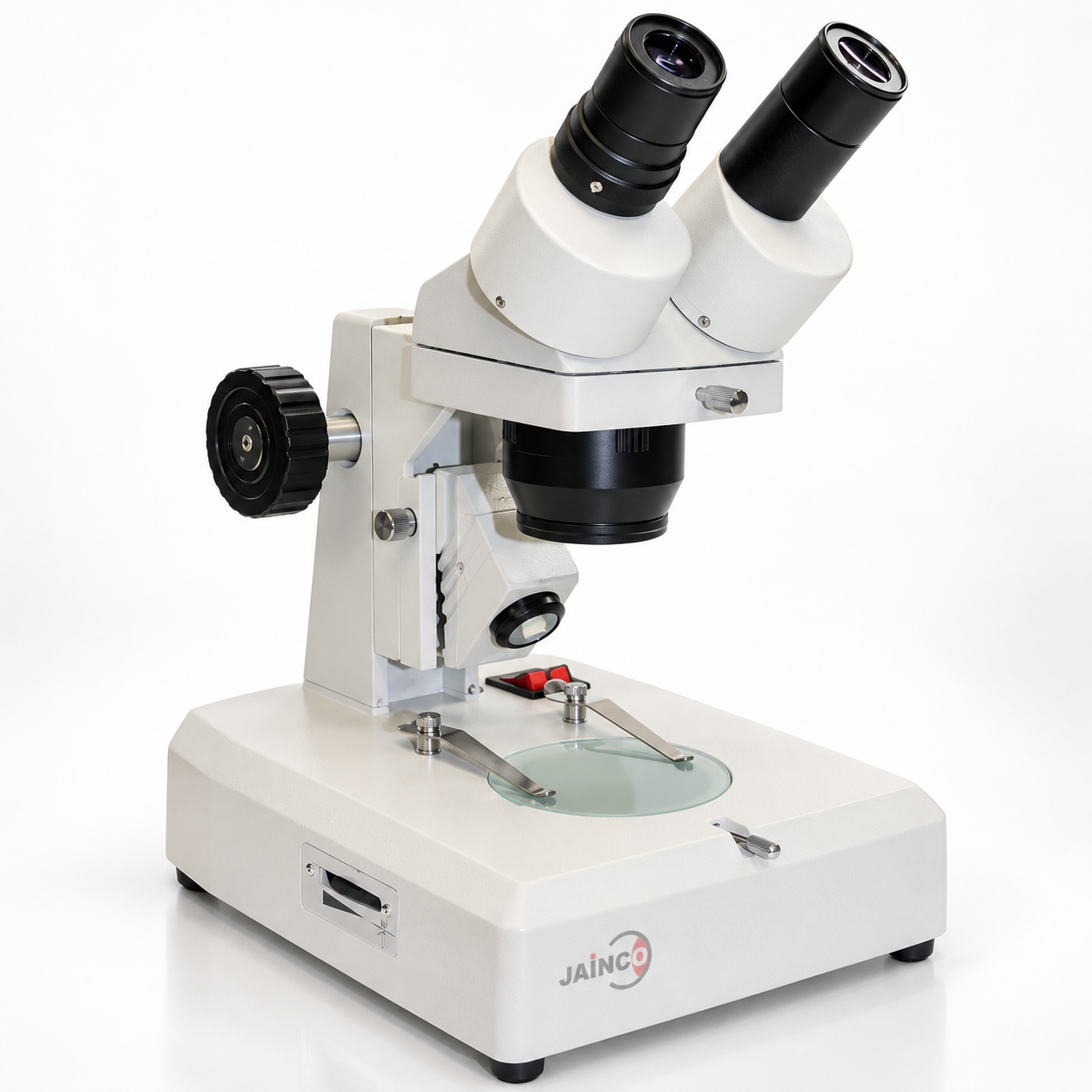

LED Illumination Dual Power Binocular Stereo Microscope Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8110
Jainco Lab is a leading LED Illumination Dual Power Binocular Stereo Microscope Manufacturer,and suppliers in India, LED Illumination Dual Power Binocular Stereo Microscope Manufacturer,and suppliers in South Africa, LED Illumination Dual Power Binocular Stereo Microscope Algeria (Algiers), LED Illumination Dual Power Binocular Stereo Microscope Angola (Luanda), LED Illumination Dual Power Binocular Stereo Microscope Argentina (Buenos Aires), LED Illumination Dual Power Binocular Stereo Microscope Armenia (Yerevan), LED Illumination Dual Power Binocular Stereo Microscope Australia (Canberra), LED Illumination Dual Power Binocular Stereo Microscope Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).
|
Item No. |
Head |
Eyepiece |
Magnification |
Illumination |
|
1 |
Binocular |
10X Wide-Field |
10X and 20X |
LED - Top & Bottom |
|
2 |
Binocular |
10X Wide-Field |
10X and 30X |
LED - Top & Bottom |
|
3 |
Binocular |
10X Wide-Field |
20X and 40X |
LED - Top & Bottom |
|
Magnification |
Standard magnification: 10X & 20X; 10X & 30X; or 20X & 40X |
|
Viewing Head |
Binocular, 45° inclined and 360° rotatable. |
|
Interpupillary distance adjustable from 55mm-75mm. Synchronized bilateral inter-pupillary distance adjustment. |
|
|
Diopter adjustment of +/-5 on left ocular tube; right tube is fixed |
|
|
Eyepiece |
10X wide-field |
|
Paired 10X (Optional eyepieces WF15X, WF20X) |
|
|
The eyepieces can be locked on with setscrew to prevent students from removing them. |
|
|
Optics Body and objectives |
The optics body is equipped with paired lenses (1X, 2X), (1X, 3X), or (2X, 4X) for three-dimensional viewing. Magnification can be switched to the other by rotating the turret. |
|
Objective magnification: choice of (2X & 4X), (1X & 3X), or (1X & 2X) |
|
|
Working Distance |
Standard working distance of 80mm |
|
Focusing Arm |
Heavy duty rack and pinion focusing with slip clutch |
|
Two focusing knobs with tension adjustment, 90mm focus distance range |
|
|
Stage |
Includes one 75mm frost glass stage plate and one 75mm reversible black/white stage plate. |
|
Locked-on spring loaded stage clips |
|
|
Illumination |
Top light: diagonally adjustable top incident LED light. Brightness can be continuously adjusted. |
|
Bottom light: transmitted LED light. Brightness can be continuously adjusted. |
|
|
Built in illumination system allows three ways of illumination: transmitted, incident, or dual lighting. |
|
|
Main On/off power switch. Besides, top and bottom lights can be switched on/off respectively with separate intensity control |
|
|
Design |
14'' in height, with base 7'' x 8.75'' |
