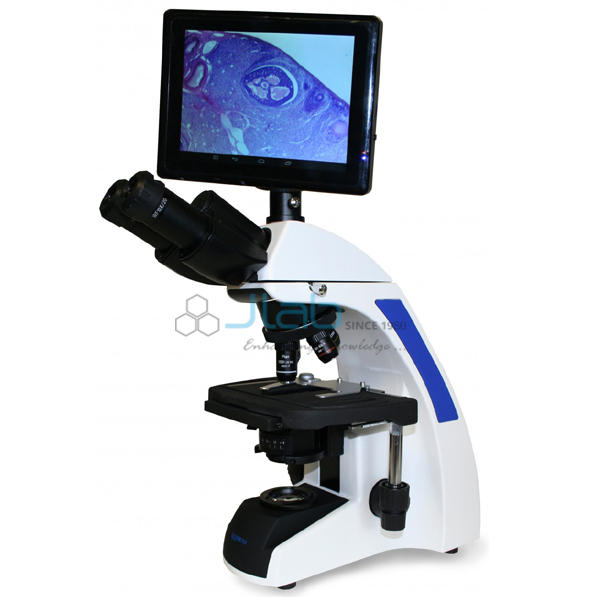

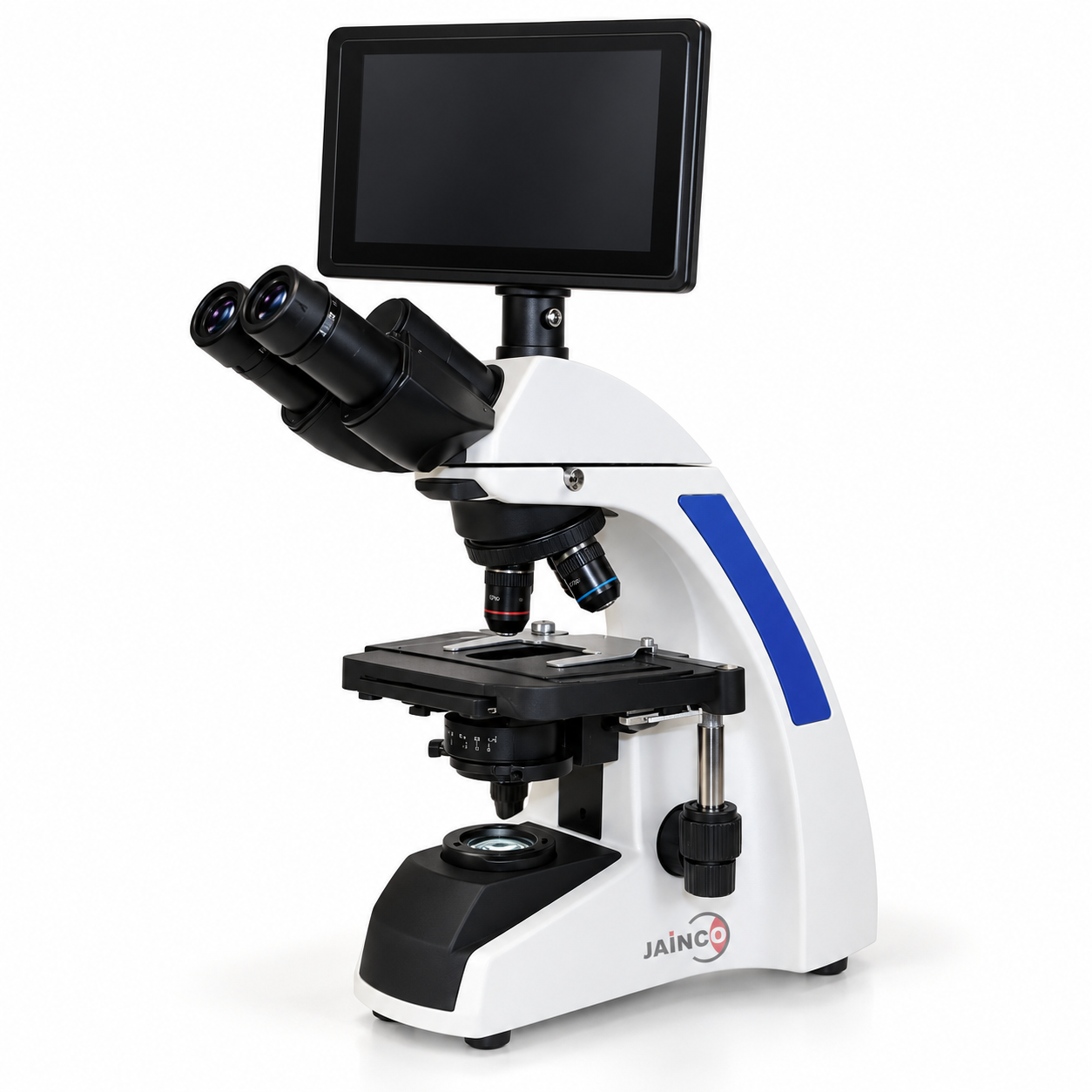

Trinocular Digital Microscope with LCD Touch Pad 5W LED Kohler Illumination

Product Code : JA-M-8079
Jainco Lab is a leading Trinocular Digital Microscope with LCD Touch Pad 5W LED Kohler Illumination Manufacturer,and suppliers in India, Trinocular Digital Microscope with LCD Touch Pad 5W LED Kohler Illumination Manufacturer,and suppliers in South Africa.Trinocular Digital Microscope with LCD Touch Pad 5W LED Kohler Illumination Suppliers in Mozambique,Trinocular Digital Microscope with LCD Touch Pad 5W LED Kohler Illumination, Trinocular Digital Microscope with LCD Touch Pad 5W LED Kohler Illumination Montenegro, Trinocular Digital Microscope with LCD Touch Pad 5W LED Kohler Illumination (Podgorica), Trinocular Digital Microscope with LCD Touch Pad 5W LED Kohler Illumination Morocco (Rabat), Trinocular Digital Microscope with LCD Touch Pad 5W LED Kohler Illumination Mozambique (Maputo), Trinocular Digital Microscope with LCD Touch Pad 5W LED Kohler Illumination Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nicaragua (Managua), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (AsunciĆ³n), Peru (Lima), Philippines (Manila)Āø Portugal (Lisbon), Qatar (Doha), Romania (Bucharest), Rwanda (Kigali), Samoa (Apia), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Seychelles (Victoria), Sierra Leone (Freetown), Slovakia (Bratislava), Somalia (Mogadishu), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (LomĆ©), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.), Uruguay (Montevideo), Uzbekistan (Tashkent), Venezuela (Caracas), Vietnam (Hanoi), Yemen (Sana'a), Zambia (Lusaka), Zimbabwe (Harare) .

Trinocular Digital Microscope with LCD TouchPad 5W LED Kohler Illumination
Description:-
A new generation of microscopes features Walter plan achromatic optics.
Equipped with 5w LED lamp, field diaphragm, Abbe condensers and other optical components.
The Compact body is designed for flexibility which can perform various applications such as brightfield, darkfield, and polarization.
The standard Kohler illumination system provides uniformly bright and free-from-glare specimen illumination, which optimizes a high image quality with brighter and sharper resolutions for photomicrography.
The trinocular microscope can be equipped with digital camera and LCD screen for photo and video documentation and image analysis.

With 8'', 1024 x 768 high-resolution screen, LCD 8.0 has great color fidelity and offers smooth images.
Latest LCD technique significantly improves the screen brightness, coupled with IPS technology to reduce the light reflection, you can get a same sharp and clear screen from any angle.
With up to 5-point multi-touch screen LCD 8.0 control is just at your fingertips.
LCD 8.0 uses the same quality LCD screen as Apple iPad.
Integrated with the 2MP camera, LCD 8.0 allows high-speed image acquisition.
In­stead of the observing through microscope eyepieces, with LCD 8.0 you can do the target searching, focusing on the screen easily.
It improves image dynamic range and detail quality.
Furthermore, LCD 8.0 utilize the specially designed image processing chip for the built-in cameras.

LCD 8.0 has built-in software and operation system, just starting the camera, the live image pres­ents in front of you immediately.
You can save the picture on your system memory or to your external storage devices like mini SD Card or USB devices.
Don't worry parameter adjustment, LCD 8.0 takes care of all the parameters like white balance, exposure time etc automatically.

Specification:-

Viewing Head

JAab trinocular head which will not change the length in the eyepiece tubes when interpupillary distance adjustments are made

30° inclined and 360° rotatable, fully up or down swiveled eyepiece tubes to adjust the viewing height to meet individual requirements

Interpupillary adjustment of 48mm-75mm

Eyepiece

Wide field (WF)10x/22mm

High eyepoint, with eyeguard

Both eyepieces are diopter adjustable, which allows the image and reticule to be brought into focus at the same time.



Optional reticule eyepiece for measurement purposes; choice of 0.1mm/1cm grid, 0.1mm/1cm cross or plain cross hair available (not included)

Nosepiece

Revolving reversed quadruple objective nosepiece accepts four objectives which are color-coded, parcentered and parfocaled.

The nosepiece runs on ball bearings and has internal click stops so that the image remains centered after each change in magnification.

Objectives

Plan Achromatic DIN 4X/0.10 160/0.17

Plan Achromatic DIN 10X/0.25 160/0.17

Plan Achromatic DIN 40XR/0.65 160/0.17

Plan Achromatic DIN 100XR/1.25 oil 160/0.17

40XR and 100XR objectives are retractable which have resilient mounts for specimen protection

Focusing System

Low position coaxial coarse and fine focus knobs

37.7mm per coarse rotation

0.1mm per fine rotation, fine focus graduation of 1um

Focusing range 16mm

Tension adjustment eliminates focus drift

Stage

216mmx150mm built-in double layer mechanical stage

Smooth X/Y calibrated movement with cross travel range 7.5cm x 5.5cm

Non-extending rack

Graphite surface, rounded edges

Illumination

Built-in Kohler illumination with field diaphragm, provides uniformly bright and free-from-glare specimen illumination

N.A. 1.25 Abbe condensers which height is controlled by a rack and pinion gear system that allows the condenser focus to be adjusted for proper illumination of the specimen

Adjustable aperture  iris diaphragm incorporated into the condenser, which is important in securing correct illumination, contrast, and depth of field;  a graduated scale indicates the approximate adjustment (size) of the aperture diaphragm.

5w LED for optimum illumination and contrast

With light intensity control

Imaging

Trinocular phototube (50% vis, 50% doc) with 10MP digital eyepiece camera  and 8'' LCD camera available to capture images and view live video of the specimen on a computer or screen.

0.5x C-Mount (included)

Other characters

Ergonomically designed metal frame for stability and durability

Carrying handle integrated in the back of the stand for easy carrying

Arm and base made of one piece construction

Antifungal treatment prevents fungal growth

Cord holder for convenient storage



Optional Accessory

Available (not included)

Dark field kit

Polarization kit

1x C-mount

Camera Main Features











8" Color LCD & Touch Screen 360° horizontal rotatable / 90° vertical rotatable

Free life-time software upgrade

2MP high resolution, 1024 x 786 display

Blue-tooth & Wi-Fi

CPU Dual-core 1.41GHz

Operating System Android 4.1.1

Memory: 1G (DDR3)

Storage: Internal 4 GB or External Mini SD Card

Windows, Mac, Linux compatible

Output Ports: 1x HDMI port; 1x USB 2.0; 1x Mini USB 2.0

Power Supply: Input: AC110v-220v; Output: DC 5v

0.35x Relay lens, external power adapters, HDMI cable
