Binocular Stereo Microscope WF 10x and 20x Eyepieces Manufacturer,Supplier and Exporter in India

Binocular Stereo Microscope WF 10x and 20x Eyepieces

Product Code : JA-M-8088

Binocular Stereo Microscope WF 10x and 20x Eyepieces
Description:

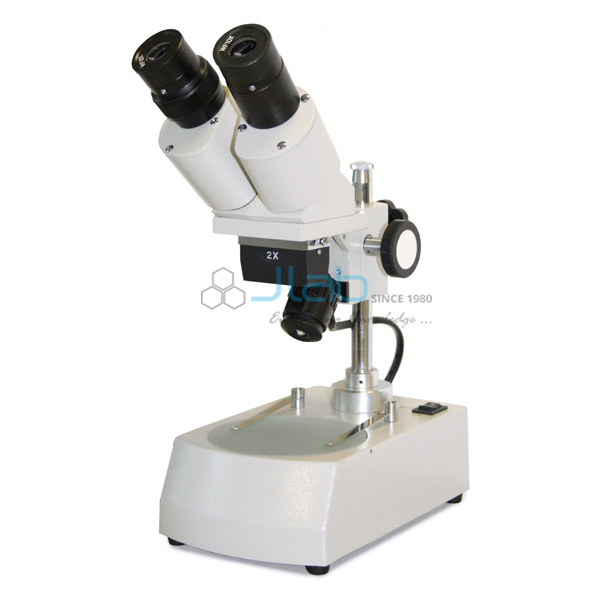

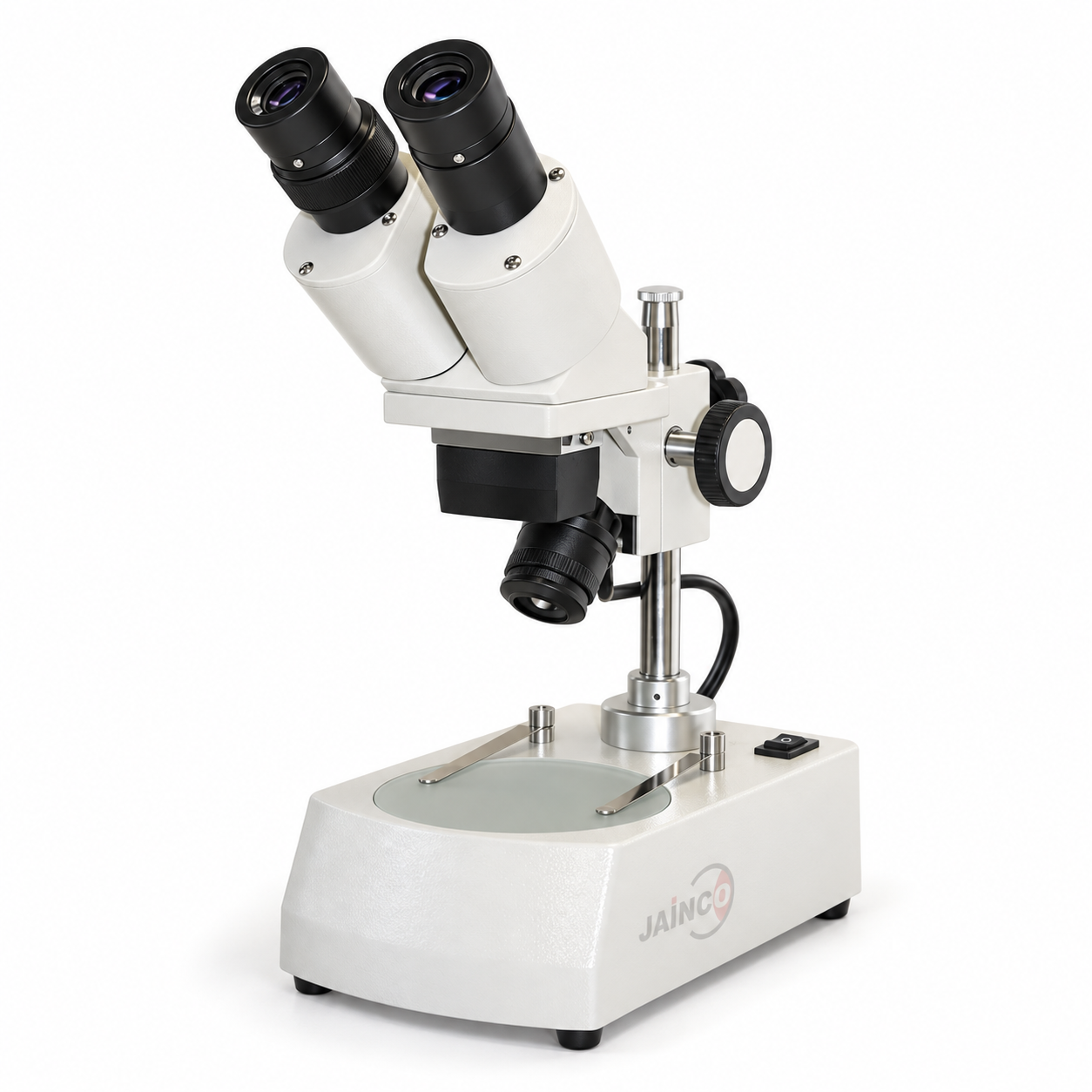

This 45° inclined, a binocular stereo microscope with diopter adjustment on one ocular tube promises top viewing comfort.
The 2x objective is parfocaled and parcentered, and with a 10x WF and 20x WF eyepiece, offer magnifications of 20x and 40x.
A dual illumination switch allows for three light setting options: top, bottom, or both.
The adjustable interpupillary distance ranges from 51mm to 75mm.
The LED illumination guarantees a clear and crisp, cool-to-touch white light, which lasts 60x longer than traditional tungsten bulbs.

Specification:-

Head

45° inclined binocular head

Eyepiece

10x WF, 20x WF (pair of each and incl. eye guard)

Objectives

2x

Magnification

20x, 40x

Focus

Rack and pinion coarse focusing with safety stop and tension adjustment

Stage

Frosted glass plate and reversible black & white stage plate (w/ pair of stage clips)

(Both 95mm in diameter)

Light Source

Top (reflected) and bottom (transmitted) LED illumination

Power

110V

Overall Dimensions

5"x4"x10"-6lbs
