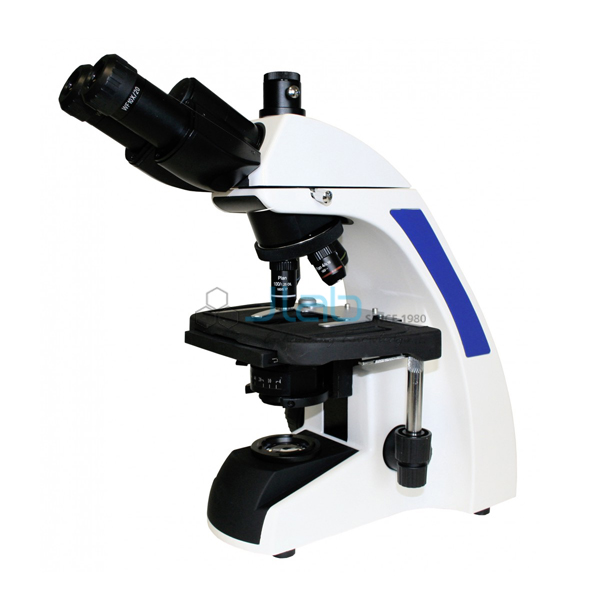

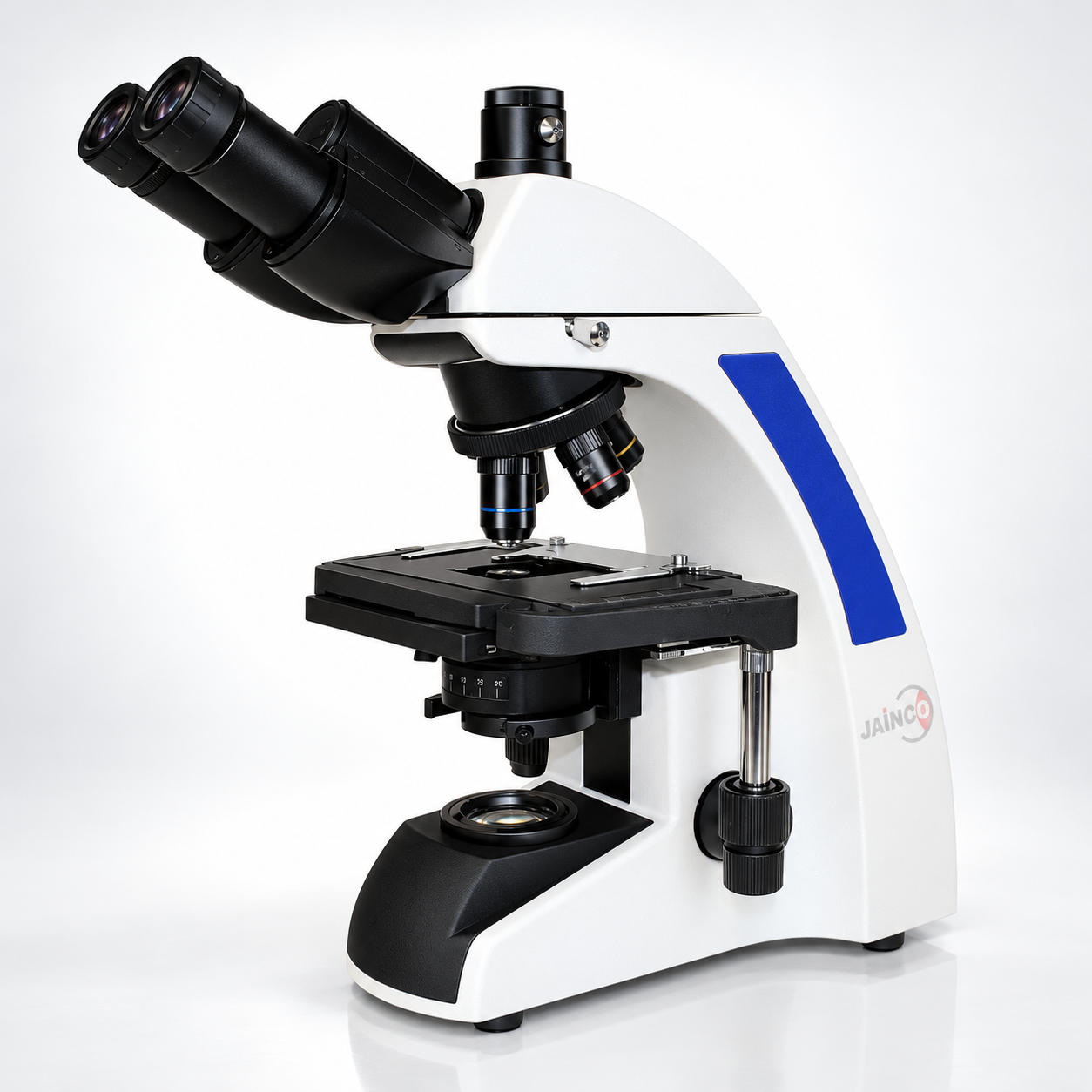

Trinocular 5W LED Kohler Illumination Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8075
Viewing Head |
Jaincolab trinocular head which will not change the length of the eyepiece tubes when interpupillary distance adjustments are made |
30° inclined and 360° rotatable, fully up or down swiveled eyepiece tubes to adjust the viewing height to meet individual requirements |
|
Interpupillary adjustment of 48mm-75mm |
|
Eyepiece |
Widefield (WF) 10 x /22mm |
High eyepoint, with eye guard |
|
Both eyepieces are diopter adjustable, which allows the image and reticule to be brought into focus at the same time. |
|
|
Optional reticule eyepiece for measurement purposes; choice of 0.1mm/1cm grid, 0.1mm/1cm cross or plain crosshair available (not included) |
Nosepiece |
Revolving reversed quadruple objective nosepiece accepts four objectives which are color-coded, parcentered and parfocaled. |
The nosepiece runs on ball bearings and has internal click stops so that the image remains centered after each change in magnification. |
|
Objectives |
Plan Achromatic DIN 4X/0.10 160/0.17 |
Plan Achromatic DIN 10X/0.25 160/0.17 |
|
Plan Achromatic DIN 40XR/0.65 160/0.17 |
|
Plan Achromatic DIN 100XR/1.25 oil 160/0.17 |
|
40XR and 100XR objectives are retractable which have resilient mounts for specimen protection |
|
Focusing System |
Low position coaxial coarse and fine focus knobs |
37.7mm per coarse rotation |
|
0.1mm per fine rotation, fine focus graduation of 1um |
|
Focusing range 16mm |
|
Tension adjustment eliminates focus drift |
|
Stage |
216mmx150mm built-in double layer mechanical stage |
Smooth X/Y calibrated movement with cross travel range 7.5cm x 5.5cm |
|
Non-extending rack |
|
Graphite surface, rounded edges |
|
Illumination |
Built-in Kohler illumination with field diaphragm provides uniformly bright and free-from-glare specimen illumination |
N.A. 1.25 Abbe condensers which height is controlled by a rack and pinion gear system that allows the condenser focus to be adjusted for proper illumination of the specimen |
|
Adjustable aperture iris diaphragm incorporated into the condenser, which is important in securing correct illumination, contrast, and depth of field; a graduated scale indicates the approximate adjustment (size) of the aperture diaphragm. |
|
5w LED for optimum illumination and contrast |
|
With light intensity control |
|
Imaging |
Trinocular phototube (50% vis, 50% doc) with 5MP/10MP digital eyepiece camera and 8'' LCD camera available to capture images and view live video of the specimen on a computer or screen. |
0.5x C-mount included |
|
Other characters |
Ergonomically designed metal frame for stability and durability |
Carrying handle integrated in the back of the stand for easy carrying |
|
Arm and base made of one piece construction |
|
Antifungal treatment prevents fungal growth |
|
Cord holder for convenient storage |
|
Optional Accessory
Available (not included) |
Dark field kit |
Polarizing kit |
|
1x C-mount |
