Monocular Coaxial Focusing Beginner Microscope

Product Code : JA-M-8049

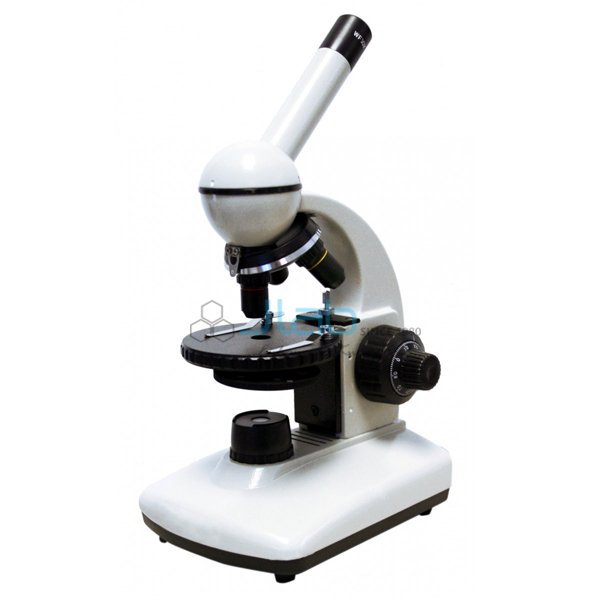

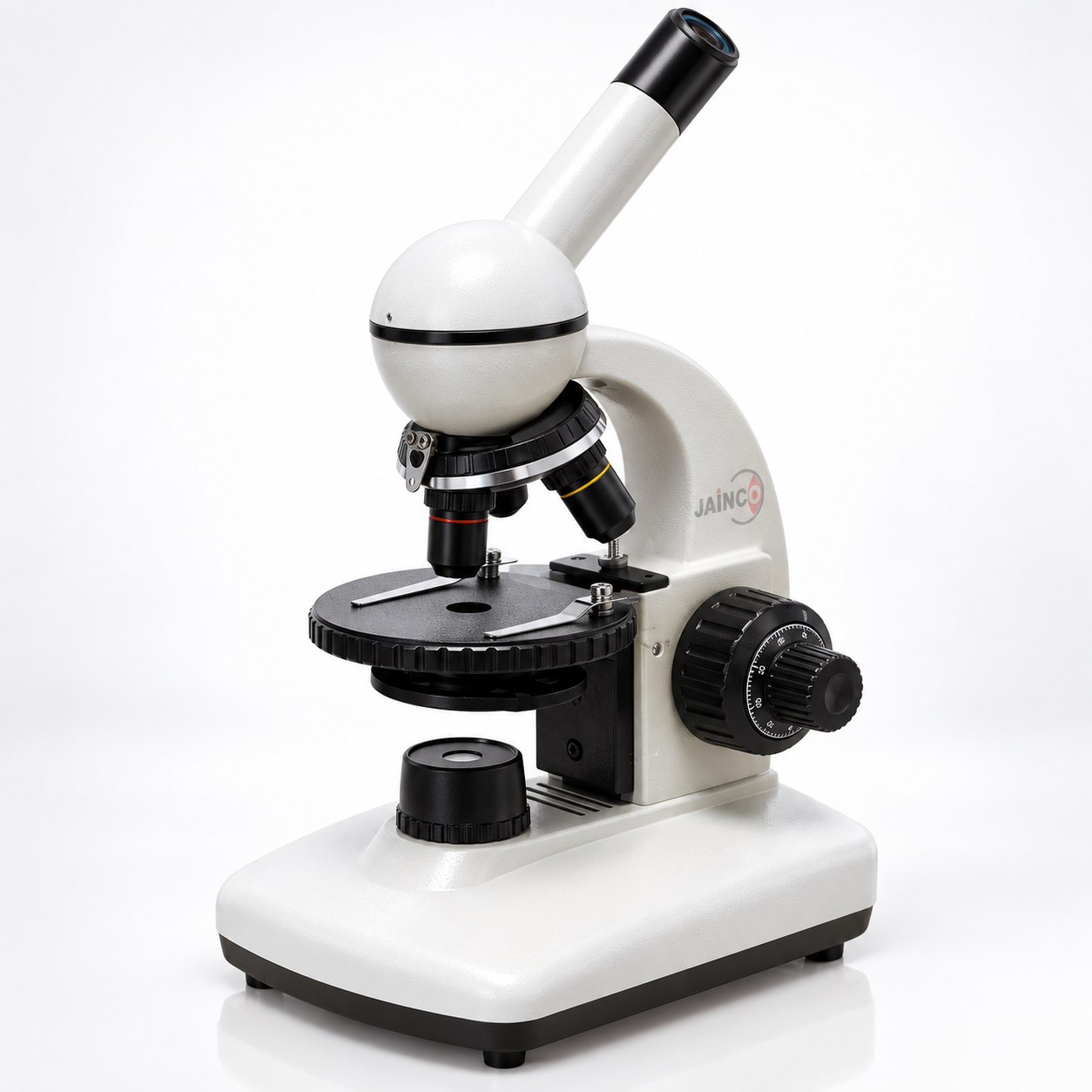

Monocular Coaxial Focusing Beginner Microscope
Microscope offers great value and performance and features a durable cast metal frame and LED illumination.
Combining with a 10X eyepiece, the magnification is 40X, 100X and 400XR.

Specification:-


Viewing Head

Monocular head, 360° rotating inclined at 45°

Eyepiece

Lock-on 10X wide-field eyepiece with pointer; locked on for security to prevent misplacement or damage

Nosepiece

3-position reverse nosepieces with positive click stops

Objectives

Achromatic objectives: 4X, 10X, 40XR (retractable); they are

color-coded, parcentered and parfocaled

Focusing System

Coaxial coarse and fine focus control

Rack and pinion focusing with slip clutch at both ends of travel to prevent damage to the microscope gears

Safety rack stop ensures delicate specimens and the objective lens are not damaged

Stage

3.5” round gliding stage 360° rotation with stage clips

Illumination

Built-in LED illumination with on/off switch

LED bulb lifespan is 10,000 hours

6 hole rotating disc diaphragm

Rotates exposing holes with various apertures to help achieve better resolution

Large apertures for lower magnifications; Smaller apertures for higher magnifications

Three wire-grounded power cord for corded models only

9V Rechargeable Nickel Metal Hydride (NiMH) batteries - Plug-in Rechargeable Adapter included for cordless models only

Batteries fully recharged in 8 hours, it gives up to 50 hours of continuous use per charge for cordless models only

Design

Full 12" in height with a 6.5" x 5.25" base

All metal construction, modern euro design
