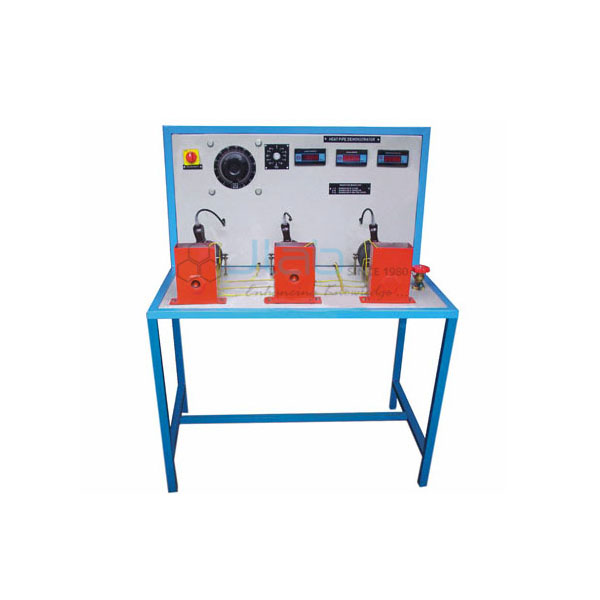

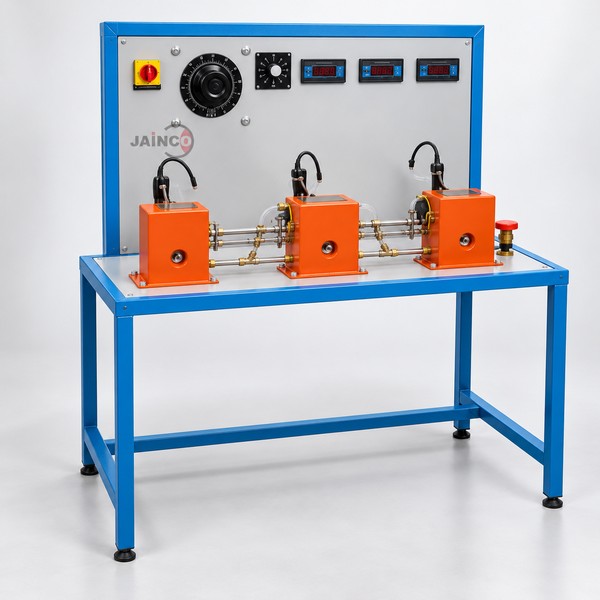

Heat Pipe Demonstrator

Heat Pipe Demonstrator

Product Code : JA-HTLE-7371

Heat Pipe Demonstrator
Specification:
Pipes: Heat pipe made of stainless steel.
Made of copper.
Size: 32mm Dia, 350 mm length (Approx.)Heat Sink: Material Stainless steel.
Working fluid in heat pipe: Distilled water.
Temperature Sensors: RTD PT-100 type
Made of Stainless steel.
Heaters: Nichrome Wire Band Type.
Digital Ammeter: 0-2 Amp.
Digital Voltmeter: 0-300 Volts.
Variac: 0-230 V, 4 Amp.
Digital Temp. Indicator: 0-2000 C, with the multi-channel switch.

Utilities required:
Electricity Supply 1 Phase, 220 V AC, 4 Amp Table for set-up support.

Experimentation:
To plot the temperature distribution along the length of pipes
To demonstrate the super thermal conductivity of Heat Pipe.
To compare its working with the best conductor i.e. Copper pipe & Stainless steel pipe as the same material of construction.
To plot the temperature v/s time response of pipes.
