Home » Our Product »  Engineering Lab Equipment  »  CNC Trainer Machine » CNC Trainer Lathe Machine

CNC Trainer Lathe Machine Manufacturer,Supplier and Exporter in India

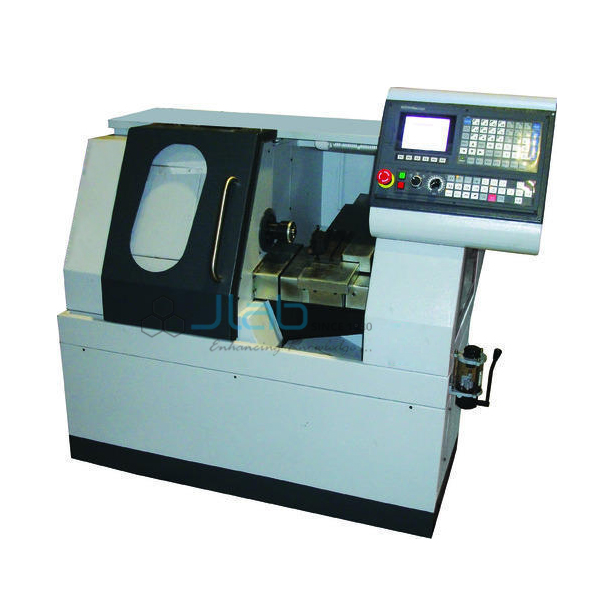

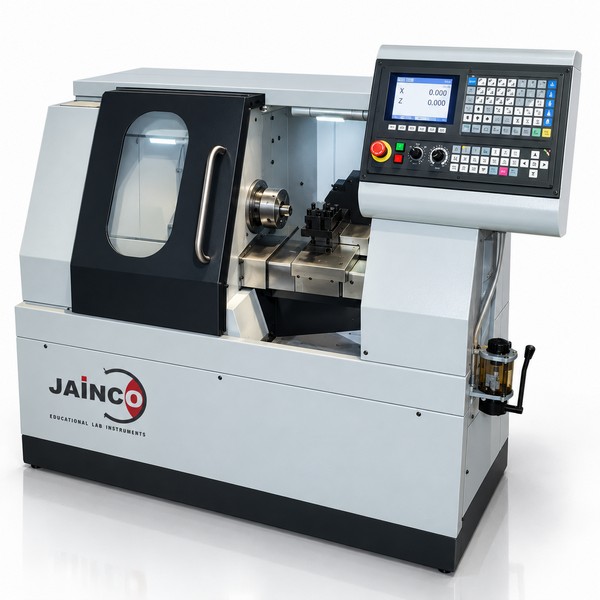

CNC Trainer Lathe Machine

Product Code : JA-CTM-9023
Jaincolab is a leading CNC Trainer Lathe Machine Manufacturer,and suppliers in India, CNC Trainer Lathe Machine Manufacturer,and suppliers in South Africa, CNC Trainer Lathe Machine Algeria (Algiers), CNC Trainer Lathe Machine Angola (Luanda), CNC Trainer Lathe Machine Argentina (Buenos Aires), CNC Trainer Lathe Machine Armenia (Yerevan), CNC Trainer Lathe Machine Australia (Canberra), CNC Trainer Lathe Machine Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

CNC Trainer Lathe Machine
Specification:-
Max. Turning Dia: 55 mm
Max. Turning Length: 100 mm
Swing Over Bed: 150 mm
Std. Turning Dia.: 50 mm

Main Spindle:-
Bore Through Spindle: 35 mm
Bar Capacity: 12 mm
Chuck Size: 80 mm

Spindle Drive:-
Spindle Motor Power: 1.5 HP
Speed Range (RPM): 4000

Turret:-
Turret Type: Linear
No. Of Stations: 2
Max. Boring Bar Dia.: 32 mm
Tool Cross Section: 16 x 16

Axes Slides:-
X-Axis Stroke: 150 mm
Z-Axis Stroke: 100 mm
Rapid Traverse X-Axis: 15 m/min.
X-axis Guide Ways: LM
Rapid Traverse Z-Axis: 15 m/min.
Z-axis Guide Ways: LM

Accuracy:-
Position Accuracy: 0.015 mm
Repeatability: ±0.003 mm

Machine Dimensions:-
Dimension (L x B x H): 1250 x 850 x 1650
Weight (Approx.): 1000 kg
