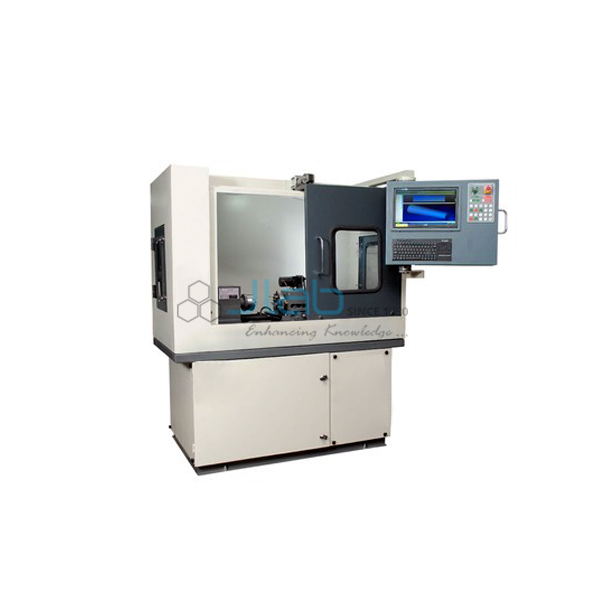

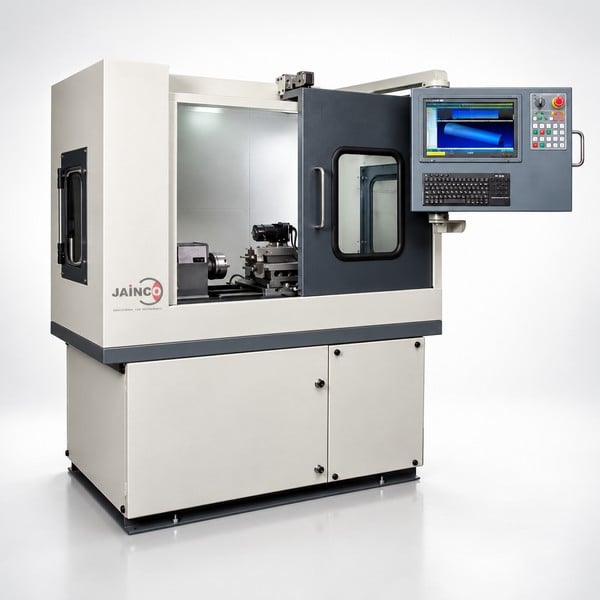

CNC Lathe Trainer Stepper Manufacturer,Supplier and Exporter in India
Product Code : JA-CTM-9038
Jainco Lab is a leading CNC Lathe Trainer Stepper Manufacturer,and suppliers in India, CNC Lathe Trainer Stepper Manufacturer,and suppliers in South Africa.CNC Lathe Trainer Stepper Suppliers in Mozambique,CNC Lathe Trainer Stepper in Supplier Kenya, Southren African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia, Kenya, Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.
|
Bed Type |
Flat / 45 Degrees Slant |
|
Keyboard Type |
Emulated / Standard |
|
Chuck Size |
100 mm (Dia) |
|
Chuck Type |
Hydraulic / Manual |
|
Maximum Turning Diameter |
40 mm |
|
Maximum Turning Length |
250 mm |
|
Center Height |
100 mm |
|
Swing over Cross Slide |
60 mm |
|
Swing Over Bed |
200 mm |
|
Distance between Centre |
320 mm |
|
Controller |
Cut Viewer |
|
Control System |
PLC Based Control System |
|
Operating Software |
Cut Viewer |
|
Positioning |
0.010 mm |
|
Repeatability |
+- 0.015 mm |
|
Resolution |
0.010 mm |
|
Spindle Motor |
AC Servo |
|
Spindle Motor Capacity |
2 HP |
|
Spindle RPM |
100 to 4000 RPM with VFD |
|
Spindle Nose Taper |
A 2-3 / MT 3 |
|
C Axis (Optional) |
C Axis with Brake |
|
Axis Motor and Drive |
Stepper Motor with Stepper Drives imported from Singapore |
|
X-Axis Travel |
100 mm |
|
Z-Axis Travel |
300 mm |
|
Ball Screw X / Z |
Ø25 x 5 - C3 Class |
|
Feed Rate |
0 to 1,200 mm/min |
|
Rapid Travel |
1,200 mm/min |
|
Turret Type |
Automatic |
|
Number of Stations |
4 / 8 |
|
Tool Cross Section |
12 mm x 12 mm |
|
Tailstock Base Stroke |
170 mm |
|
Tailstock Actuation |
Hydraulic/ Manual |
|
Lubrication |
Automatic |
|
Coolant |
Automatic |
|
FMS Compatibility |
Provided |
|
Dimension in mm |
1480 x 800 x 1200 mm |
|
Power Supply |
230V, Single Phase |
