Precision EDM Machine

Product Code : JA-CTM-9078

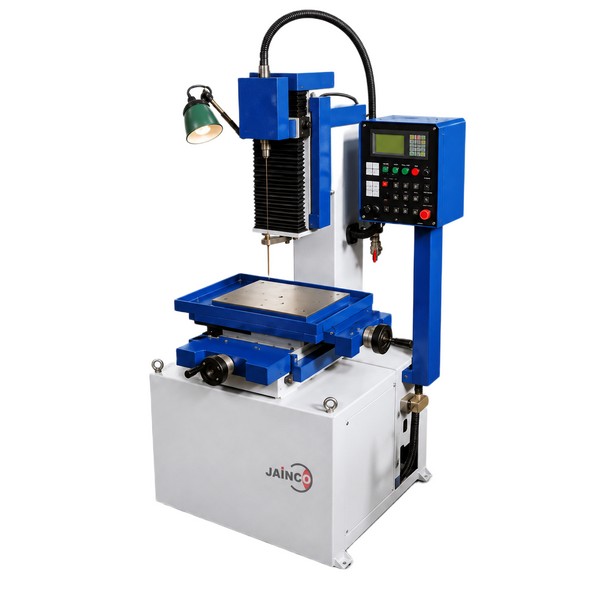

Precision EDM Machine
Precision EDM Machine uses electrical discharges or sparks for obtaining the desired shape.
Reverse sparks are also possible with these high functionality machines.
Before the final dispatch, the entire range is checked for its flawlessness.
Offered in a varied series of specifications, these efficient and extremely durable electric discharge machining are consistent in operation and consume less electricity.

Two Part Design
Low Working Height
Ball Screw For X & Y Axis and L.M. Guideways
For Z-Axis.
S.S. Accumulator For Constant Pressure
DC Stepper Motor With Belt Drive
Special Circuit For Deep Drilling
Variable Pressure Setting of Coolant 0 To 100 kg/Cm2
Safety Pressure Switch For Over Coolant Pressure
Indigenous Controller
Water Tank With S.S. Steel body Coolant Pump
100% Spares Availability in Local Market
Safety Interlock Present
Current Booster For High-Speed Drilling Operation

Power Supply: 415 V, 3Ph, 50 Hz
Brass Electrodes: Dia 1.0 mm x 400 mm
Material: 2 Brass / Copper
Electrodes: 0.3 ~ 3.0 mm
Length: 10 No
Bakelite Guide Size: 1.0 mm: - 2 Nos
Rubber Stopper: 5 Nos
Machine Lamp: 1 No
Ruby guide: 0.0~3.0 mm
Special Electrodes for Drilling: From 3.1 to 10 mm
