CNC Semi Production Lathe Manufacturer,Supplier and Exporter in India

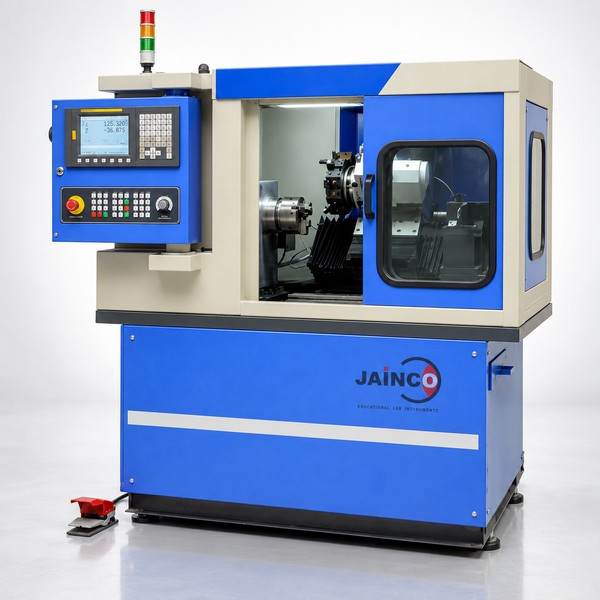

CNC Semi Production Lathe

Product Code : JA-CTM-9045
Jaincolab is a leading CNC Semi Production Lathe Manufacturer,and suppliers in India

CNC Semi Production Lathe
Description:-
This CNC Lathe is perfectly suitable to be used for light production purpose.
This is the ideal product for educational institutes which are looking to impart industrial training to their students as well as doing some light production activity on the same machine.
HPL series Turning machines are equipped with production turrets.
LM Guides and metallic bellows covering the guideways are also provided.
One of the most important features of this machine is that it is manufactured specifically for educational institutes.
It offers hands-on experience of industrial turning centers with safety features of educational trainer machines.

Specification:-

Bed Type

Flat / 45 Degrees Slant

Chuck Size

150 mm (Dia)

Chuck Type

Hydraulic

Maximum Turning Dia / Length

100 mm / 370 mm

Center Height

150 mm

Swing over Cross Slide

125 mm

Swing Over Bed

300 mm

Distance between Centre

420 mm

Positioning

0.010 mm

Repeatability

+- 0.005 mm

Resolution

0.001 mm

Spindle Motor

AC Servo

Spindle Motor Capacity

5.1 KW / 7 HP

Spindle RPM

100 to 6000 RPM with VFD

Axis Motor and Drive

Servo Motor with Servo Drives

X Axis Travel

120 mm

Z Axis Travel

380 mm

Feed Rate

0 to 10,000 mm/min

Rapid Travel

10,000 mm/min / 20,000 mm/min

Turret Type

Automatic - Servo Type

Number of Stations

8

Tool Cross Section

20 mm x 20 mm

Boring Bar Size

16 mm

Tailstock Base Stroke

230 mm

Tailstock Quill Stroke

100 mm

Tailstock Actuation

Hydraulic/ Manual

Lubrication

Automatic

Coolant

Automatic

FMS Compatibility

Provided

Dimension in mm

2200 x 1200 x 1700 mm

Power Supply

415V, +-2% 50 Cycles, 3 Phase
