Dynamic Pass Box Manufacturer,Supplier and Exporter in India
Product Code : JA-CAE-6556
Jaincolab is a leading Dynamic Pass Box Manufacturer,and suppliers in India

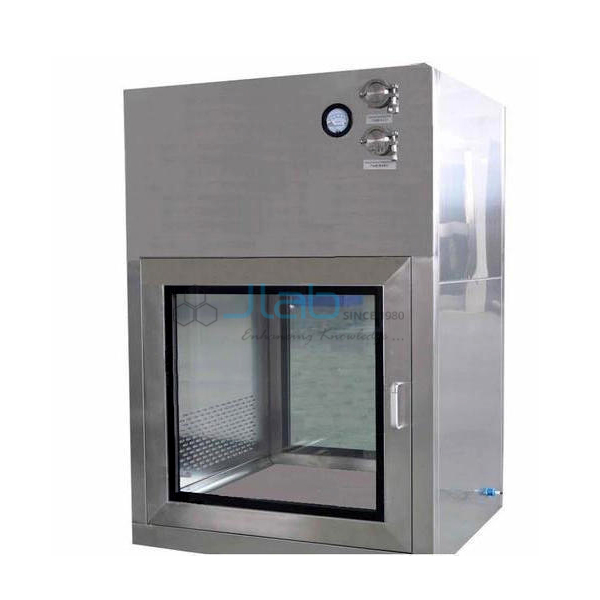

Dynamic Pass Box
- Dynamic Pass Box equipment is made of powder coated high grades stainless steel (304 / 316 / 316 L) with international quality standard components including mechanically or electrically interlocked doors and UV light.
- These dynamic pass box equipment are equipped with suction filter made of stainless steel with 95% down to 5µ efficiency and supply filter made of aluminium with 99.999% down to 0.001 µ.
- An interlock guard system controls the inlet and the outlet of pass box not be opened at the same time, in order to prevent the cross contamination.
- Standard Fitting.
- S.S/ M.S Enclosure , Mechanical/Electro-magnet lock, Tempered Glass, Buzzer, Fluorescent light, Indicator lamps, Suction Filter, Supply Filter, Power Supply cord.
- Optional - UV Lamp, HEPA Filter, Air Shower Facility.
- Sizes.
|
Inner Dimensions (L * W * H) |
Outer Dimensions (L * W * H) |
|---|---|
|
450 x 450 x 450 mm |
550 x 500 x 800 mm |
|
600 x 600 x 600 mm |
700 x 650 x 1100 mm |
|
900 x 900 x 600 mm |
1000 x 950 x 1100 mm |
|
1200 x 1200 x 600 mm |
1300 x 1250 x 1100 mm |
- Features:
- Precision designing and finish.
- Choice of mechanical or electrical interlocked.
- Floor and wall mounted design.
- Maximum chemical resistance construction.
- Stainless Steel suction filter w/ 95% down to 5 µ Efficiency.
- Branded heavy duty Blower.
- Aluminium Supply filters w/ 99.999% down to 0.001 µ.
- Buzzer indication to know the material is kept inside.
- Indicating lamp to know the door lock-unlock condition.
- Low Vibration and Noise.
- Fully custom designed.
