Static Pass Box Manufacturer,Supplier and Exporter in India
Product Code : JA-CAE-6557

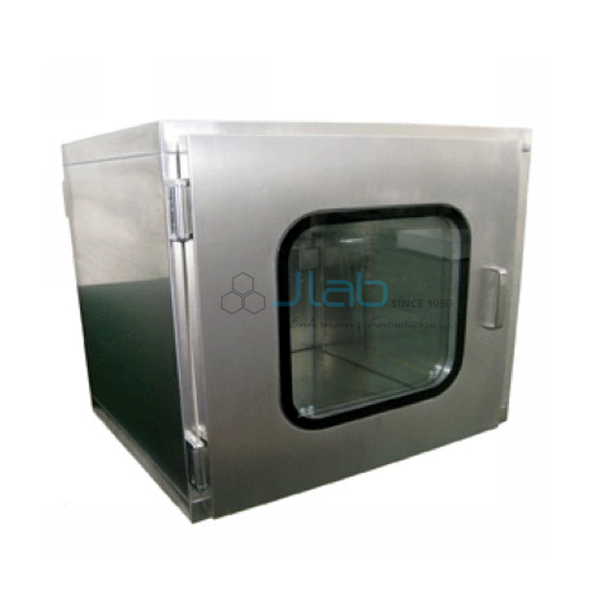

The Static Pass Box (SKU JA-CAE-6557) is a transfer hatch without a blower, set in the wall between rooms so that materials can be passed across without people moving between areas. JaincoLab makes this static pass box with interlocked doors, a buzzer to show material is inside and a UV light with hour meter, in four sizes for pharmaceutical, biotechnology and laboratory clean rooms.
Specifications
The enclosure is stainless steel or mild steel with tempered glass, mechanical or electromagnetic locks, buzzer, fluorescent light, indicator lamps and power cord; it is made floor or wall mounted, with a UV lamp and a HEPA filter available.
| Product | Static Pass Box |
| SKU | JA-CAE-6557 |
| Enclosure | SS or MS, floor or wall mounted |
| Doors | Mechanically or electrically interlocked; tempered glass |
| Fittings | Buzzer, fluorescent light, indicator lamps, power cord |
| UV | UV light with hour meter |
| Options | UV lamp, HEPA filter |
| Inner / outer sizes (L x W x H) | 450 x 450 x 450 / 520 x 500 x 520 mm; 600 x 600 x 600 / 670 x 650 x 670 mm; 900 x 900 x 600 / 970 x 950 x 670 mm; 1200 x 1200 x 600 / 1270 x 1250 x 670 mm |
Applications of the static pass box
A static pass box is used between areas of similar cleanliness, where material has to cross but no filtered air flush is needed, and its interlocked doors keep the two rooms separated.
- Material transfer between clean rooms of similar grade
- Passing samples into and out of laboratories
- Moving packaging and components in pharmaceutical plants
- Demonstrating clean-room layouts in pharmacy colleges
Scope of supply and ordering
The listing covers the static pass box in the size and material ordered, with interlocked doors, buzzer, lights and indicator lamps. The UV lamp and HEPA filter options are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the size, material, mounting, number of units and the delivery destination.
Frequently asked questions
How is it different from a dynamic pass box?
A static pass box has no blower or filtered air flush; it relies on its interlocked doors.
Which sizes are listed?
Inner sizes of 450 x 450 x 450, 600 x 600 x 600, 900 x 900 x 600 and 1200 x 1200 x 600 mm.
Can it be wall mounted?
Yes. It is made in floor-mounted and wall-mounted designs.
Related products
Dynamic pass boxes, air showers and laminar flows are listed in the JaincoLab clean air equipment range.
Request a quote
To order the Static Pass Box, send the size, material, mounting, quantity and delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
