Training System Flow Control Manufacturer,Supplier and Exporter in India

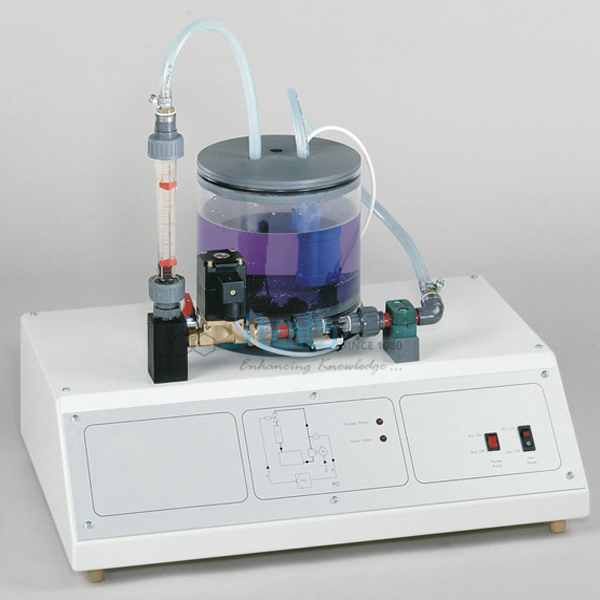

Training System Flow Control

Product Code : JA-AM-6467
Jaincolab is a leading Training System Flow Control Manufacturer,and suppliers in India, Training System Flow Control Manufacturer,and suppliers in South Africa, Training System Flow Control Algeria (Algiers), Training System Flow Control Angola (Luanda), Training System Flow Control Argentina (Buenos Aires), Training System Flow Control Armenia (Yerevan), Training System Flow Control Australia (Canberra), Training System Flow Control Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Training System Flow Control

Description:

  • A piping system with two flow meters is supplied with the flow by a speed-controlled pump from the transparent storage tank.
  • The rotameter offers the advantage that the flow rate can be observed directly at any time.
  • The flow rate is measured by a turbine wheel flow sensor.
  • The sensor output signal is sent to the software controller.
  • The output signal from the controller influences the setting of an electromagnetic proportional valve.
  • To investigate the influence of disturbance variables, the pump speed can be altered by way of the software.
  • The powerful state-of-the-art software is an integral part of the training system, embodying the principle of hardware/software integration (HSI).
  • It enables the experiments to be conducted and evaluated in a user-friendly manner.
  • The software has network capability.
  • The link between the experimental unit and the PC is made via a USB port.

Pump

  • Power consumption: 18W
  • Max. flow rate: 8L/min
  • Max. head: 6m
  • Rotameter: 20...250L/h
  • Proportional valve: Kvs: 0,7m³/h
  • Flow sensor: 0,5...3L/min
  • Software controller configurable as P, PI, PID and switching controller

Technical Data

  • Storage tank
  • Capacity: approx. 3000mL

Software

  • Process schematic with controller type selection.
  • Manual, continuous controller, two or three-point controller, programmer.
  • Time functions.
  • Simulation function.
  • Disturbance variable input.
