Herring Bone Gear Manufacturer,Supplier and Exporter in India
Product Code : JA-DOMLE-9154

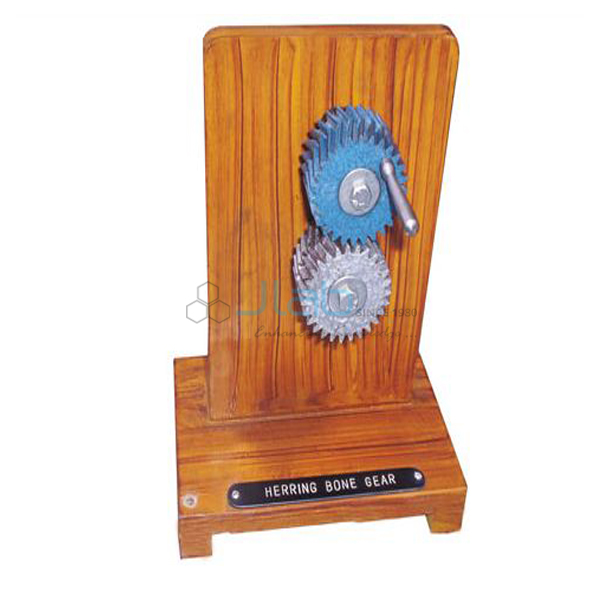

The Herring Bone Gear (SKU JA-DOMLE-9154) is a teaching model of a herringbone (double helical) gear pair, whose teeth are cut as two helices of opposite hand side by side so that the axial thrust of each half cancels the other. This herringbone gear model helps students compare spur, helical and double helical gears on parallel shafts. It is manufactured by JaincoLab for theory of machines and machine design labs.
Specifications
The product data gives general helical gear information only, so tooth numbers, helix angle, material and model size of this herringbone gear pair are confirmed on the quotation.
| Product | Herring Bone Gear |
| SKU | JA-DOMLE-9154 |
| Type | Teaching model, herringbone (double helical) gear pair |
| Tooth form | Two helices of opposite hand |
| Helix angle and tooth numbers | Confirmed on the quotation |
| Size, material and finish | Confirmed on the quotation |
Applications of the herringbone gear model
Herringbone gears carry heavy loads smoothly on parallel shafts without net end thrust, and the model shows students why the opposite-hand halves are used.
- Showing double helical tooth form
- Explaining cancellation of axial thrust
- Comparing spur, helical and herringbone gears
- Gear-type lectures in theory of machines and machine design
- B.Tech, diploma and ITI mechanical courses
Scope of supply and ordering
The listing covers one herringbone gear teaching model. Size, helix angle and construction are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time for the Herring Bone Gear are set on each quotation according to the order size and destination. Bulk orders for institutions and tender supplies, including export to Africa, the Middle East and South and South-East Asia, are handled.
Frequently asked questions
What is a herringbone gear?
A double helical gear with two sets of helical teeth of opposite hand, which cancels axial thrust.
On which shafts are herringbone gears used?
On parallel shafts.
What gear data is supplied?
Helix angle, tooth numbers and size are confirmed on the quotation.
Related products
See the complete mechanical engineering lab equipment range for related items, including theory of machines and dynamics of machines apparatus.
Request a quote
To get a quotation for the Herring Bone Gear, send SKU JA-DOMLE-9154, the quantity and the delivery destination through the JaincoLab contact page or email [email protected]. Buying under a laboratory tender? Use our tenders page.
