Cam and Follower Model Manufacturer,Supplier and Exporter in India
Product Code : JA-DOMLE-9150

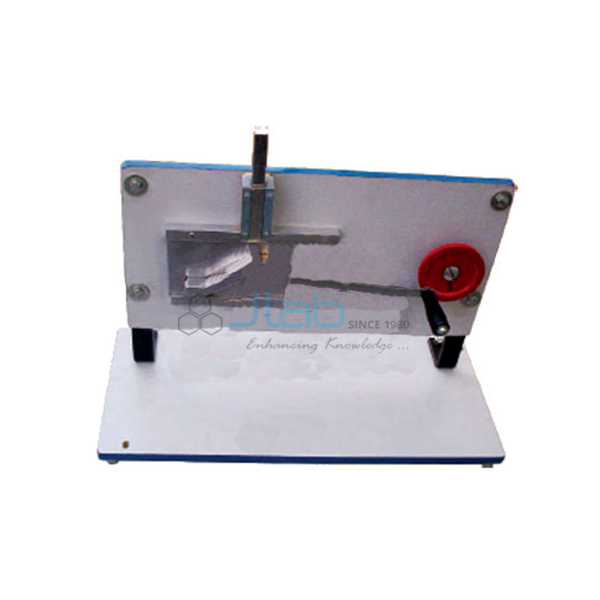

The Cam and Follower Model (SKU JA-DOMLE-9150) is a simple experimental set-up for demonstrating how cam shape determines follower motion, as used in engine valve gear. The follower can work as a roller tappet, cup tappet or trailing lever, a scaled disc shows the angle of rotation and a mechanical position gauge measures the stroke. This cam and follower apparatus is supplied by JaincoLab for kinematics and theory of machines labs.
Specifications
The model has a cam shaft with a scaled disc for the angle of rotation, a follower that can be set up as roller tappet, cup tappet or trailing lever, and a mechanical position measuring gauge for the stroke; the number and profiles of cams supplied are confirmed on the quotation.
| Product | Cam and Follower Model |
| SKU | JA-DOMLE-9150 |
| Follower types | Roller tappet, cup tappet or trailing lever |
| Angle reading | Scaled disc |
| Stroke measurement | Mechanical position measuring gauge |
| Cams | Different cam shapes; number and profiles confirmed on the quotation |
| Documentation | Instructional material with step-by-step experiments |
Experiments with the cam and follower apparatus
Students rotate the cam in steps, read the follower lift on the gauge and plot the lift curve to compare cam profiles and follower types.
- Follower lift against cam angle
- Influence of cam shape on the lift curve
- Comparison of roller, cup and lever followers
- Principle of valve control in combustion engines
- Kinematics practicals in B.Tech and diploma mechanical courses
Scope of supply and ordering
The listing covers the cam and follower set-up with scaled disc, follower options and stroke gauge as described above. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time for the Cam and Follower Model are set on each quotation according to the order size and destination. Bulk orders for institutions and tender supplies, including export to Africa, the Middle East and South and South-East Asia, are handled.
Frequently asked questions
Which follower types can be used?
Roller tappet, cup tappet or trailing lever.
How is follower lift measured?
With a mechanical position measuring gauge against the scaled angle disc.
How many cams are supplied?
The number and profiles of cams are confirmed on the quotation.
Related products
Browse the full mechanical engineering lab equipment range from JaincoLab, including theory of machines and dynamics of machines apparatus.
Request a quote
Request the price and specification sheet for the Cam and Follower Model through the JaincoLab contact page; mention SKU JA-DOMLE-9150, the quantity and where it is to be delivered. Buying under a laboratory tender? Use our tenders page.
