Epicyclic Gear Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-DOMLE-9132

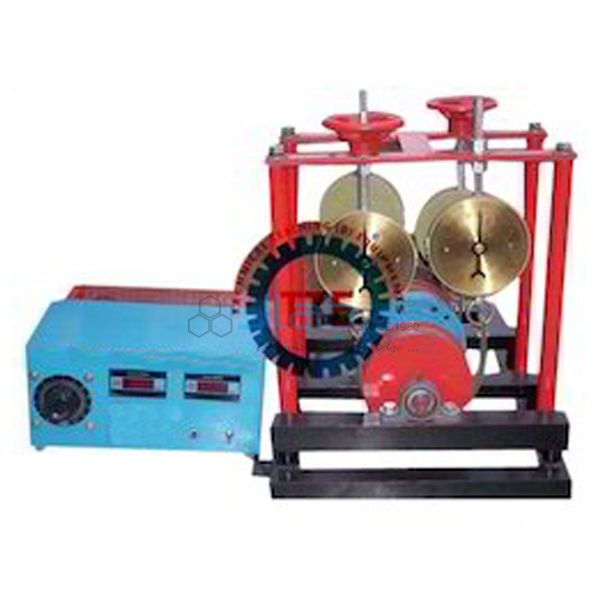

The Epicyclic Gear Apparatus (SKU JA-DOMLE-9132) is a motor-driven test rig for measuring input, holding and output torque and the gear ratios of epicyclic gear trains. It carries an external-type gear train with holding drum and handle and an internal-type compact industrial gear train, driven by a 1 HP variable-speed DC shunt motor with rope-brake loading. This epicyclic gear train apparatus is manufactured by JaincoLab for theory of machines labs.
Specifications
The apparatus combines external and internal epicyclic gear trains on a base frame with bearing blocks, a 1 HP, 1500 rpm, 230 V variable-speed DC shunt motor, a rope brake for output and holding torque, and a control panel with digital ammeter, voltmeter and rpm indicator.
| Product | Epicyclic Gear Apparatus |
| SKU | JA-DOMLE-9132 |
| Gear trains | External type with holding drum and handle; internal type compact industrial train |
| Motor | Variable-speed DC shunt motor, 1 HP, 1500 rpm, 230 V |
| Loading | Rope brake for output torque and holding torque |
| Frame | Bearing blocks for input and output shafts on a base frame |
| Control panel | Digital ammeter and voltmeter, rpm indicator, on/off switch |
Experiments on the epicyclic gear train apparatus
The rig lets students measure the torques on each member of an epicyclic train and compare measured speed ratios with values calculated from tooth numbers.
- Measurement of input torque, holding torque and output torque
- Gear ratio between input shaft and output shaft
- Gear ratio between input shaft and holding drum
- Torque balance and efficiency of an epicyclic train
- Theory of machines practicals in B.Tech and diploma courses
Scope of supply and ordering
The listing covers the gear trains, DC motor, rope brake and control panel on the base frame as described above. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing for the Epicyclic Gear Apparatus are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or training programmes are both supplied.
Frequently asked questions
What can be measured on this apparatus?
Input, holding and output torque, and gear ratios between input shaft, output shaft and holding drum.
What motor drives the rig?
A 1 HP, 1500 rpm, 230 V variable-speed DC shunt motor.
How is torque measured?
With a rope brake arrangement for output and holding torque, and panel meters for motor input.
Related products
Browse the full mechanical engineering lab equipment range from JaincoLab, including theory of machines and dynamics of machines apparatus.
Request a quote
Request the price and specification sheet for the Epicyclic Gear Apparatus through the JaincoLab contact page; mention SKU JA-DOMLE-9132, the quantity and where it is to be delivered. For tender or project supply, see our tenders page.
