Reversing Gear Manufacturer,Supplier and Exporter in India
Product Code : JA-DOMLE-9151

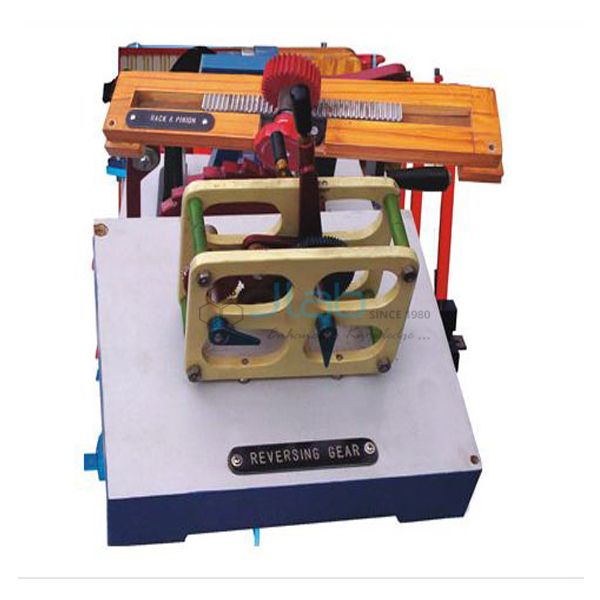

The Reversing Gear (SKU JA-DOMLE-9151) is a teaching model of the reversing gear of a steam locomotive, the mechanism that controls the direction of travel and also adjusts the cut-off of steam to the cylinders. This reversing gear model lets students see how moving the reversing lever changes valve timing for forward running, reverse running and economical cut-off. It is manufactured by JaincoLab for theory of machines and thermal engineering labs.
Specifications
The product data describes the function only, a reversing gear that controls direction of travel and adjusts cut-off, so model size, materials, mounting and whether it is hand-operated or sectioned are confirmed on the quotation.
| Product | Reversing Gear |
| SKU | JA-DOMLE-9151 |
| Type | Teaching model, steam locomotive reversing gear |
| Functions shown | Control of direction of travel; adjustment of cut-off |
| Size, material and finish | Confirmed on the quotation |
Applications of the reversing gear model
The model supports lectures and practicals on valve gears, where students relate the position of the reversing lever to the direction of rotation and the point of steam cut-off.
- Demonstrating forward and reverse running of a locomotive engine
- Showing how cut-off is adjusted for starting and running
- Supporting valve-gear and link-motion topics in theory of machines
- Thermal engineering and steam engine lectures in B.Tech and diploma courses
Scope of supply and ordering
The listing covers one reversing gear teaching model. Its dimensions, construction and any stand or base are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
The quotation confirms MOQ, lead time and packing for the Reversing Gear against the quantity and delivery address. Orders range from one unit for a single lab to bulk and tender supply for institutions.
Frequently asked questions
What does the reversing gear model show?
How the reversing gear controls the direction of travel of a steam locomotive and adjusts the cut-off.
Is it a working model?
The operating details of the model are confirmed on the quotation.
Which courses use it?
Theory of machines and thermal engineering courses covering valve gears.
