Internal Gear Pinion Drive Manufacturer,Supplier and Exporter in India
Product Code : JA-DOMLE-9152

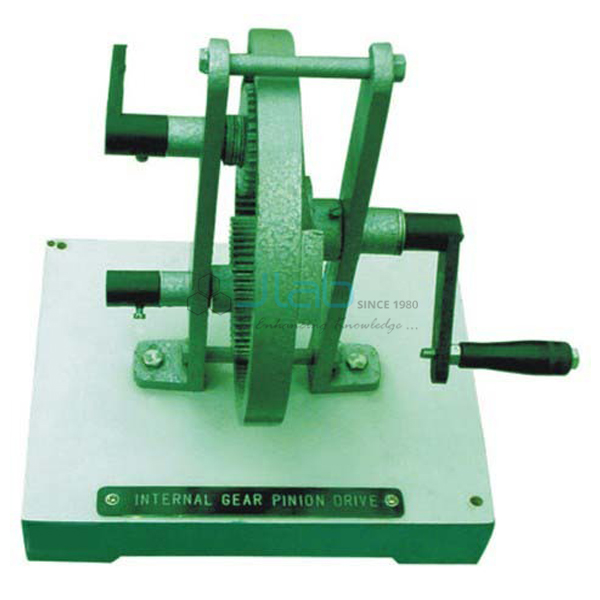

The Internal Gear Pinion Drive (SKU JA-DOMLE-9152) is a teaching model of an internal gear and pinion pair, in which a small external pinion meshes inside a ring gear with internal teeth so that both turn in the same direction. This internal gear and pinion drive model helps students compare internal and external meshing, speed ratio and compactness. It is manufactured by JaincoLab for theory of machines and machine design labs.
Specifications
The product data gives only the item name, so tooth numbers, module, material and model size are confirmed on the quotation; the model shows an external pinion meshing with an internally toothed gear.
| Product | Internal Gear Pinion Drive |
| SKU | JA-DOMLE-9152 |
| Type | Teaching model, internal gear and pinion drive |
| Gearing | External pinion meshing with internal (ring) gear |
| Tooth numbers and module | Confirmed on the quotation |
| Size, material and finish | Confirmed on the quotation |
Applications of the internal gear and pinion model
Internal gear drives are found in planetary gearboxes, hub drives and reduction units, and the model lets students see the mesh and work out the speed ratio from tooth numbers.
- Showing internal meshing and same-direction rotation
- Calculating speed ratio from pinion and ring gear teeth
- Comparing internal and external gear pairs
- Introducing planetary and epicyclic gear trains
- Theory of machines and machine design lectures in B.Tech and diploma courses
Scope of supply and ordering
The listing covers one internal gear and pinion drive model. Size, tooth numbers and construction are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing for the Internal Gear Pinion Drive are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or training programmes are both supplied.
Frequently asked questions
What does the model demonstrate?
An external pinion meshing inside an internally toothed gear, with both turning in the same direction.
What gear data is supplied?
Tooth numbers, module and size are confirmed on the quotation.
Which topics does it support?
Gear types, speed ratio and planetary gear trains in theory of machines.
