Whit Worth Quick Return Mechanism Manufacturer,Supplier and Exporter in India
Product Code : JA-DOMLE-9145

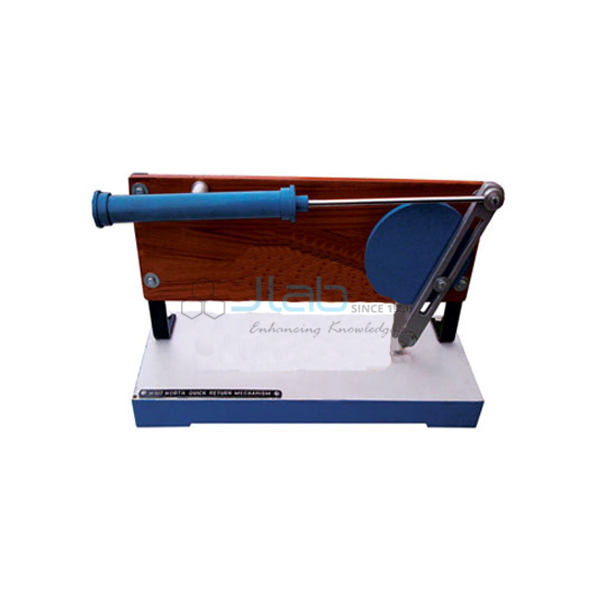

The Whit Worth Quick Return Mechanism (SKU JA-DOMLE-9145) is a table model of the Whitworth quick return mechanism, which converts rotation into uneven reciprocating motion with a slow feed stroke and a quick return. The input angle is set by turning the crank and the output stroke is read on a ruler on the slider. This Whitworth quick return mechanism model is supplied by JaincoLab for kinematics and theory of machines labs.
Specifications
The model has aluminium transmission components with all axles on ball bearings, a crank for setting the input angle, a slider with a ruler for reading the output stroke and two carrying handles; overall dimensions are confirmed on the quotation.
| Product | Whit Worth Quick Return Mechanism |
| SKU | JA-DOMLE-9145 |
| Type | Whitworth quick return mechanism, table model |
| Transmission parts | Aluminium |
| Bearings | Ball bearings on all axles |
| Input | Crank, input angle set by turning |
| Output | Stroke read on ruler on the slider |
| Handling | Two carrying handles |
| Dimensions | Confirmed on the quotation |
Experiments with the Whitworth quick return mechanism
Students turn the crank in steps, record the slider position against crank angle and plot the displacement curve to show the difference between the cutting and return strokes.
- Slider displacement against crank angle
- Ratio of forward stroke time to return stroke time
- Velocity of the slider from the displacement curve
- Principle of shaping and slotting machine drives
- Kinematics practicals in B.Tech and diploma mechanical courses
Scope of supply and ordering
The listing covers the Whitworth quick return table model with crank, slider and ruler as described above. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on the quotation for your quantity and delivery destination. The Whitworth quick return mechanism is supplied for single laboratories as well as bulk orders for colleges, polytechnics and training institutes.
Frequently asked questions
What motion does the mechanism produce?
Uneven reciprocating motion with a slow feed stroke and a quick return.
How is the output stroke measured?
On a ruler fitted to the slider.
Is it portable?
Yes. It is a light aluminium table model with two carrying handles.
Related products
See the complete mechanical engineering lab equipment range for related items, including theory of machines and dynamics of machines apparatus.
Request a quote
To get a quotation for the Whitworth quick return mechanism, send SKU JA-DOMLE-9145, the quantity and the delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
