Old ham Coupling Manufacturer,Supplier and Exporter in India
Product Code : JA-DOMLE-9156

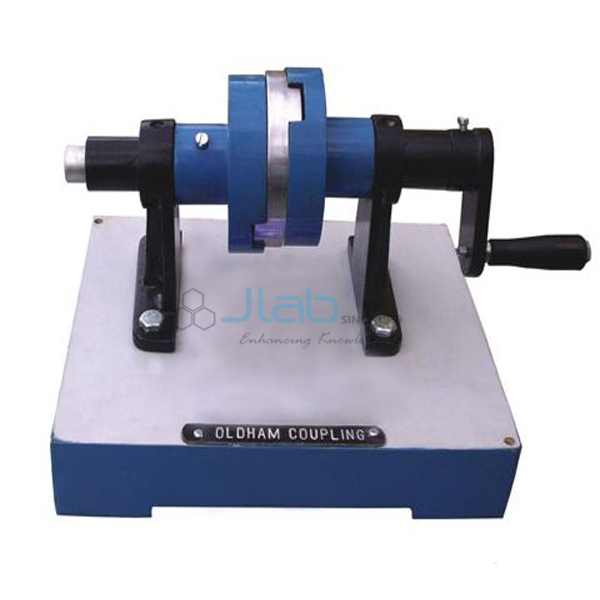

The Old ham Coupling (SKU JA-DOMLE-9156) is a teaching model of the Oldham coupling, which connects two parallel shafts whose axes are slightly offset by means of two flanges and a floating centre disc with tongues at right angles. This Oldham coupling model shows students how the centre disc slides to take up the offset while transmitting equal angular speed. It is manufactured by JaincoLab for theory of machines labs.
Specifications
The product data gives only the item name, so model size, material and mounting are confirmed on the quotation; the model shows the two slotted flanges and the floating centre disc of an Oldham coupling.
| Product | Old ham Coupling |
| SKU | JA-DOMLE-9156 |
| Type | Teaching model, Oldham coupling |
| Parts shown | Two slotted flanges and a floating centre disc with tongues at right angles |
| Function | Connects parallel shafts with small lateral offset |
| Size, material and finish | Confirmed on the quotation |
Applications of the Oldham coupling model
The Oldham coupling is a standard inversion of the double slider-crank chain, and the model lets students watch the centre disc slide as the offset shafts rotate.
- Demonstrating coupling of parallel offset shafts
- Showing the double slider-crank inversion
- Explaining equal input and output angular speed
- Theory of machines and machine design lectures in B.Tech and diploma courses
Scope of supply and ordering
The listing covers one Oldham coupling teaching model. Size, construction and any base or stand are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing for the Oldham Coupling model are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or training programmes are both supplied.
Frequently asked questions
What does the Oldham coupling connect?
Two parallel shafts whose axes are slightly offset.
How does it work?
A floating centre disc with tongues at right angles slides in slots in the two flanges.
Which mechanism topic does it illustrate?
An inversion of the double slider-crank chain.
Related products
Browse the full mechanical engineering lab equipment range from JaincoLab, including theory of machines and dynamics of machines apparatus.
Request a quote
Request the price and specification sheet for the Oldham Coupling model through the JaincoLab contact page; mention SKU JA-DOMLE-9156, the quantity and where it is to be delivered. For tender or project supply, see our tenders page.
