Series and Parallel Resonance

Series and Parallel Resonance

Product Code : JA-AET-1453

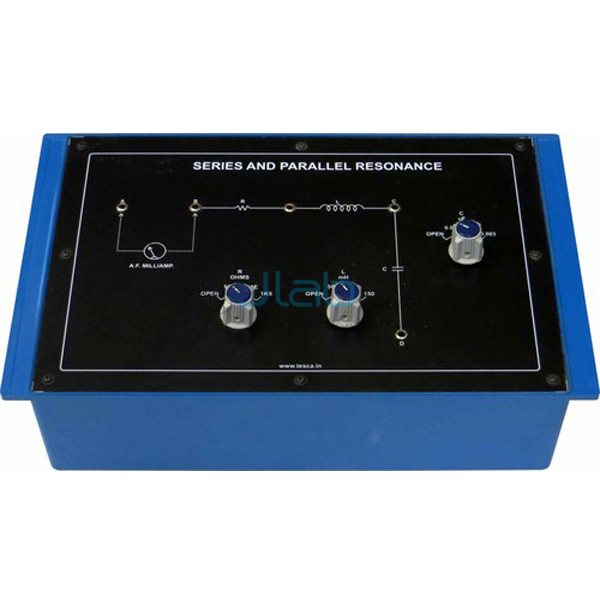

Series and Parallel Resonance

  • Series resonance for different values of resistances, capacitances, inductances and plotting of resonance curves
  • Parallel resonance for different values of resistances, capacitances, inductances and plotting of resonance curves
  • Measurement of Q for both series and parallel resonances
  • Measurement of dielectric constant relative permissibility of a liquid

Special Feature:

  • Three inductances made on ferrite cores, selectable by a switch
  • Three capacitances with low loss factor, selectable by a switch
  • Three resistances, selectable by a switch
  • Adequate no. of patch cords stackable from rear both ends 4/ 2mm spring loaded plug length ½ meter
  • Good quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
  • Strongly supported by detailed operating instructions, giving details of object, theory, design procedures, report suggestions and book references

Weight:

  • 3 kg. (approx.)

Dimension:

  • (W) 340 x (H) 110 x (D) 210

Other apparatus required:

  • Decade audio frequency generator
  • A.C. milli voltmeter
  • A.F. Milli voltmeter
