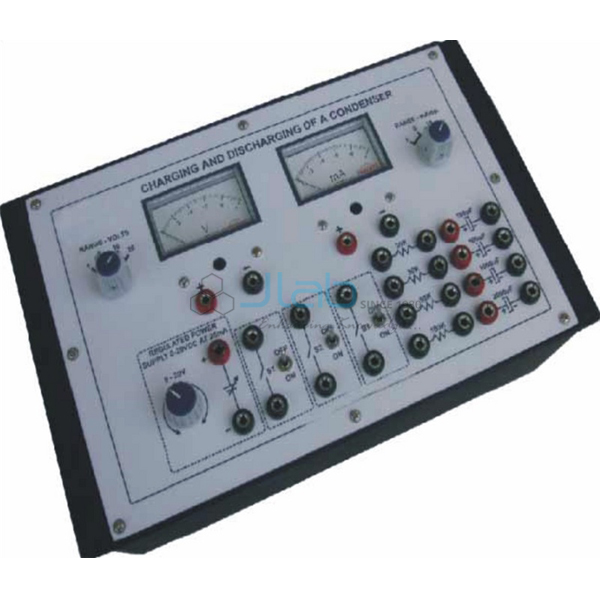

Charging and Discharging of a Condenser

To study the charging of a condenser, to plot a graph of voltage (V) across it against time (t) and to determine the time constant from this graph
To plot a graph of charging current (i) against time (t) and to determine the time constant from this graph
To study the discharging of a condenser, to plot a graph of voltage (V) across the condenser against time (t) and to determine the time constant from this graph
To plot a graph of discharge current (i) against time (t) and to determine the time constant from this graph

Features:

The board consists of the following built-in parts:

0-20V D.C. at 25 mA, continuously variable regulated Power Supply
Three SPDT switches
Four electrolytic condensers
Adequate no. of other electronic components
Mains ON/OFF switch, Fuse and Jewel light
The unit is operative on 230V ±10% at 50Hz A.C. Mains
Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
