Two Stage RC Coupled Transistor Amplifier

Product Code : JA-AET-1456

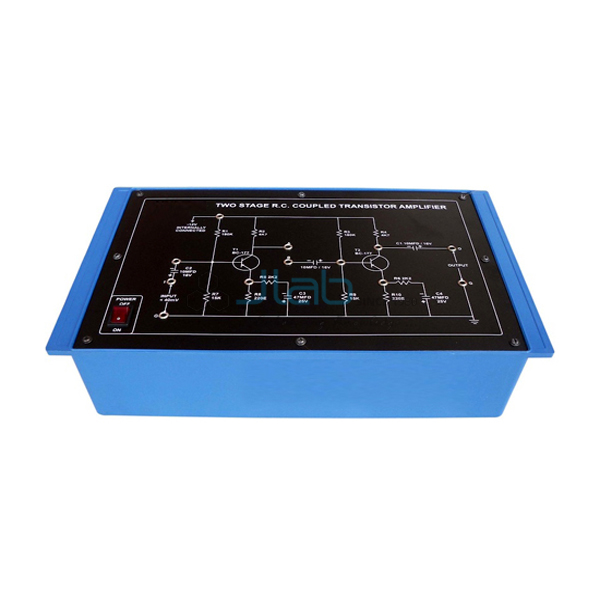

Two Stage RC Coupled Transistor Amplifier

Study of the characteristics of Two Stage RC Coupled Transistor Amplifier:

  • Study of the overload characteristics of the amplifier
  • Study of the frequency response of the individual as well as the cascade amplifier
  • Calculate the output and input impedance of the individual stages as well as that of cascade amplifier

Features:

The board consists of the following built in parts:

  • -12V D.C. IC regulated Power Supply internally connected
  • Two PNP transistors
  • Adequate no. of other electronic components
  • Mains ON/OFF switch, Fuse and Jewel light
  • The unit is operative on 230V ±10% at 50Hz A.C. Mains
  • Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
  • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References

Other Apparatus Required:

  • Decade Audio Frequency Generator
  • A.C. Millivoltmeter
  • Decade Resistance Box
