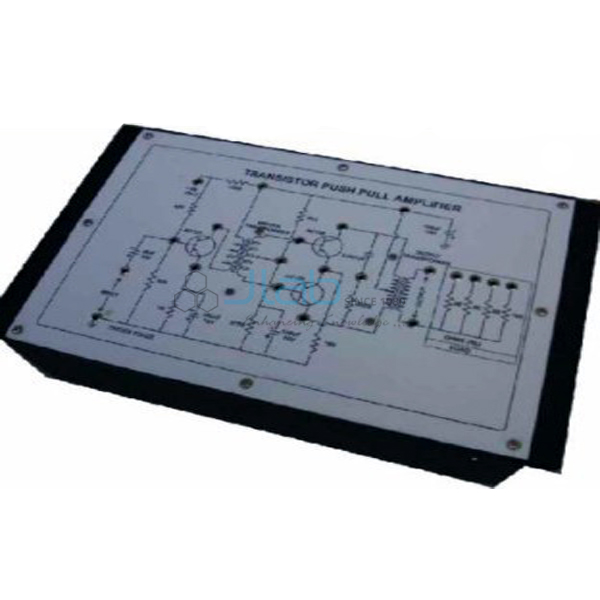

Push Pull Amplifier

Object:

To study the class B Transistor Push Pull Amplifier at audio frequencies:

To measure output power
To plot the frequency response characteristics
Distortion Measurement

Features:

The board consists of the following built-in parts :

-9V DC at 50mA, IC regulated Power Supply internally connected
Driver Transformer and Output Transformer
Four different output loads selected by a band switch
Three PNP transistors
Adequate no. of other electronic components
Mains ON/OFF switch, Fuse and Jewel light
The unit is operative on 230V ±10% at 50Hz A.C. Mains
Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
