Active Filters

Object:

  • To study characteristics of various Active Filters

Specifications:

Low Pass Filter:

Upper Cut-off frequency:

  • 1 KHz

Cut-off slope:

  • 29.5 dB/decade

Input impedance:

  • 3.5 K at 1KHz

Output impedance:

  • 18 Ohms at 1KHz

High Pass Filter:

Lower cut-off frequency:

  • 100 Hz

Cut-off slope:

  • 26 dB/decade

Input impedance:

  • 12 K at 100 Hz

Output impedance:

  • 30 Ohms at 100 Hz

Band Pass Filter:

Upper cut-off frequency:

  • 1 Khz

Lower cut-off frequency:

  • 100 Hz

Upper cut-off slope:

  • 29.5 dB/decade

Lower cut-off frequency:

  • 26 dB/decade

Input impedances:

  • 24 K at 100 Hz , 3.5 K at 1 KHz

Output impedances:

  • 30 Ohms at 100 Hz, 27 Ohms at 1 Khz

Notch Filter:

Notch frequency:

  • 1 KHz

Input impedance:

  • 15 K at 1 KHz

Output impedance:

  • 25 ohms at 1 KHz

Notch width:

  • 100 Hz

Features:

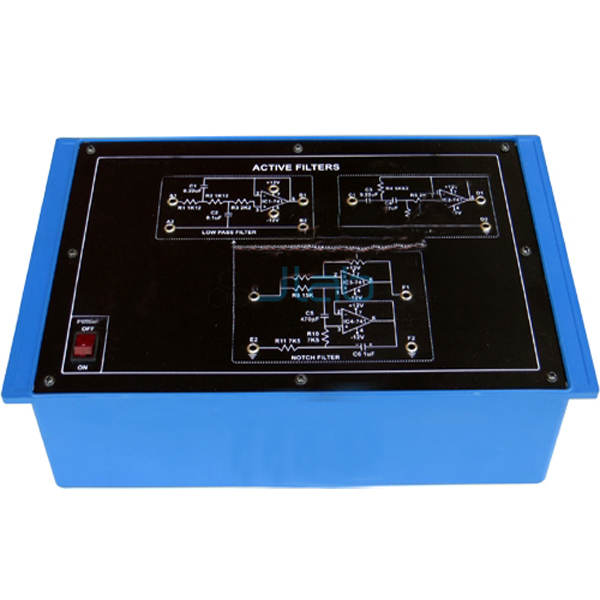

The board consists of the following built-in parts :

  • ±12V DC at 50mA, IC regulated Power Supply internally connected
  • Four Operational Amplifier ICs
  • Adequate no. of other electronic components
  • Mains ON/OFF switch and Jewel light
  • The unit is operative on 230V ±10% at 50Hz A.C.
  • Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre
  • Good quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
  • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References

Other Apparatus Required:

  • Decade Audio Frequency Generator
  • A.C. Millivoltmeter
