Power and Differential Amplifier Trainer

Product Code : JA-AET-1476

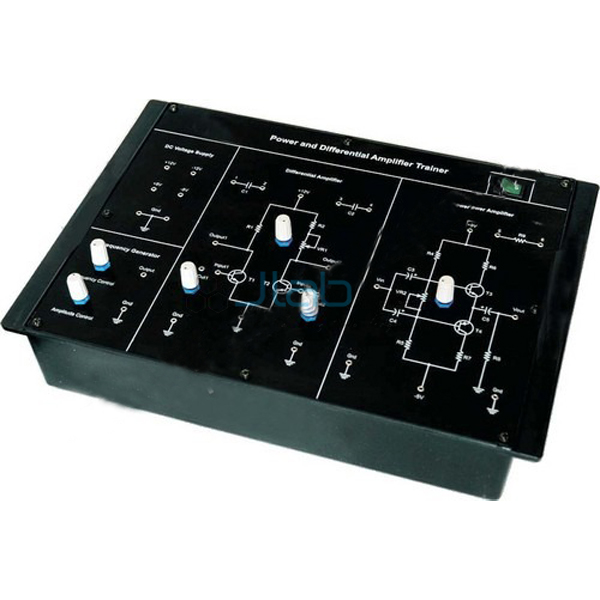

Power and Differential Amplifier Trainer

Scope of Learning:

  • Study of the working principle of Differential Amplifier
  • Study of the working principle of class B push-pull Amplifier

Specifications:

DC power supply:

  • +12 V, -12 V, +5 V, -5 V

Variable DC power supply:

  • 0 to 1 V
  • Sine wave generator

Frequency:

  • 800 Hz to 8 KHz

Amplitude:

  • 0 to 5 Vpp

Mains supply:

  • 230V ±10%, 50Hz

Fuse:

  • 350 mA, slow blow

Features:

  • In-built DC power supply
  • In-built sine wave generator
  • Compact design
