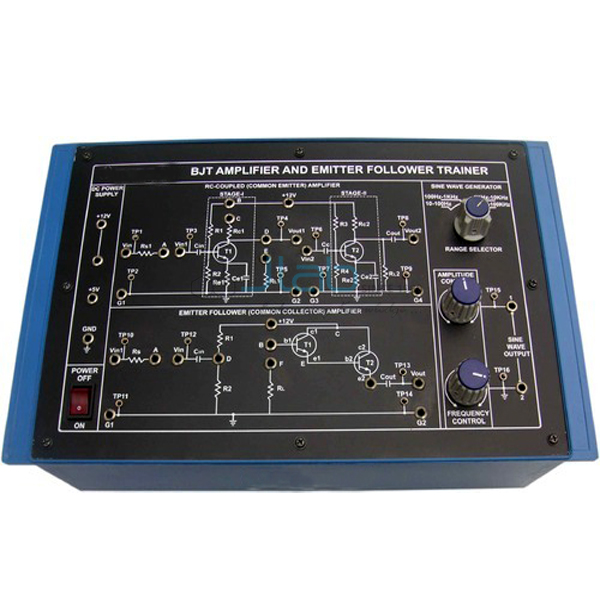

BJT Amplifiers and Emitter Follower Trainer

Product Code : JA-AET-1479

BJT Amplifiers and Emitter follower Trainer

Scope of Learning:

  • Study of the working principle of Differential Amplifier
  • Study of the working principle of class B push-pull Amplifier

Specifications:

DC power supply:

  • +12 V, +5 V

Fuse:

  • 500 mA, slow blow
  • Sine wave generator

Frequency:

  • 10 Hz - 100 KHz ±10%

Amplitude:

  • 0 to 5 Vpp

Mains supply:

  • 230 V ±10%, 50

Features:

  • Easy illustration of multistage amplifier and emitter follower
  • In-built sine wave generator with variable frequency and amplitude
  • In- built DC power supply
