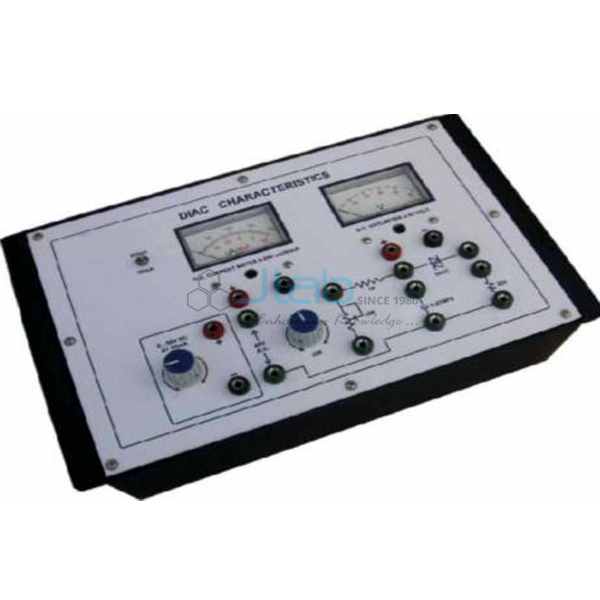

Training Board for DIAC

Product Code : JA-AET-1462
Jaincolab is a leading Training Board for DIAC Manufacturer,and suppliers in India, Training Board for DIAC Manufacturer,and suppliers in South Africa, Training Board for DIAC Algeria (Algiers), Training Board for DIAC Angola (Luanda), Training Board for DIAC Argentina (Buenos Aires), Training Board for DIAC Armenia (Yerevan), Training Board for DIAC Australia (Canberra), Training Board for DIAC Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

DIAC characteristics

Object:

To plot V-I Characteristics of a DIAC and study the following:

  • Break over voltage, VBO
  • Negative resistance region
  • VBO symmetry and delta V

To study the applications of a DIAC as:

  • Saw tooth waveform generator
  • Pulse train generator

Features:

The board consists of following built-in parts:

  • 0-50V D.C. at 50mA, regulated Power Supply
  • 45V A.C. at 50mA, unregulated Power Supply
  • D.C. Voltmeter, 65mm rectangular dial to read 0-50V D.C
  • D.C. Ammeter, 65mm rectangular dial with switch selectable ranges of 200mA and 50mA
  • DIAC
  • Potentiometer and adequate no. of other electronic components
  • Mains ON/OFF switch, Fuse and Jewel light
  • The unit is operative on 230V ±10% at 50Hz A.C. Mains
  • Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms
  • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References

Other Apparatus Required:

  • Cathode Ray Oscilloscope 20MHz
