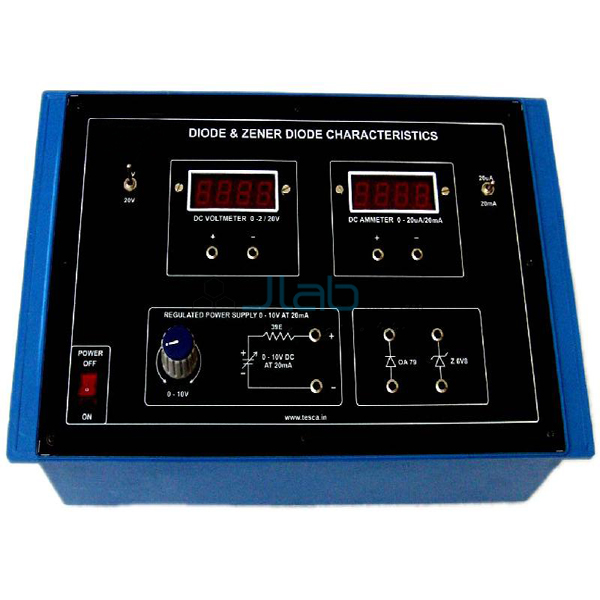

Training Board for Diode and Zener Diode

Training Board for Diode and Zener Diode

Product Code : JA-AET-1457

Training Board for Diode and Zener Diode

Object:

  • To study and plot the forward & reverse bias characteristics of a Germanium semiconductor Diode
  • To study and plot the forward & reverse bias (breakdown) characteristics of a Zener Diode

Features:

The board consists of the following built-in parts:

  • Adequate no. of other electronic components
  • Mains ON/OFF switch, Fuse and Jewel light
  • The unit is operative on 230V ±10% at 50Hz A.C. Mains
  • Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms
  • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
  • 0-10V D.C. at 10mA, continuously variable regulated Power Supply with low ripple & hum and integral current limiting resistor
  • Digital Voltmeter DC 3½ Digit Having Dual range of 2V / 20V
  • Digital Current meter DC 3½ Digit Having Dual range of 20mA / 20mA
  • A Germanium semiconductor Diode mounted behind the panel
  • A Zener Diode mounted behind the panel
