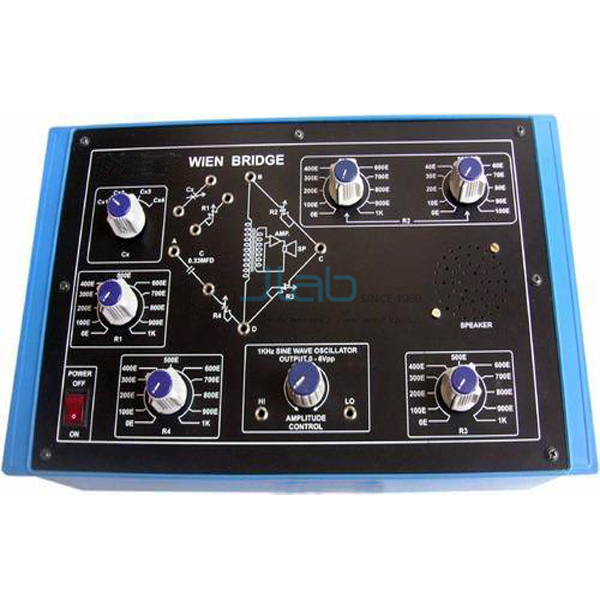

Wien Bridge

Object:

• To study Wien Bridge
• To measure the capacitance by Wien Series Bridge
• To measure the capacitance by Wien Parallel Bridge

Features:

The board consists of the following built-in parts:

• ±12V D.C. at 100mA, IC regulated Power Supply internally connected
• 1KHz Sine Wave Oscillator
• Audio Amplifier and speaker for null detection
• Three decade resistances, single dial in steps of 100 Ohm, Total 1K each, to form arms of a bridge
• Decade resistance, Two dials of 10 Ohm & 100 Ohm, total 1100 Ohms to form arms of bridge
• Decade Standard Capacitance, selectable by a band switch to form the one arm of the bridge
• Unknown capacitor and adequate no. of other electronic components
• Mains ON/OFF switch, Fuse and Jewel light
• The unit is operative on 230V ±10% at 50Hz A.C. Mains
• Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre
• Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/observation of waveforms
• Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
