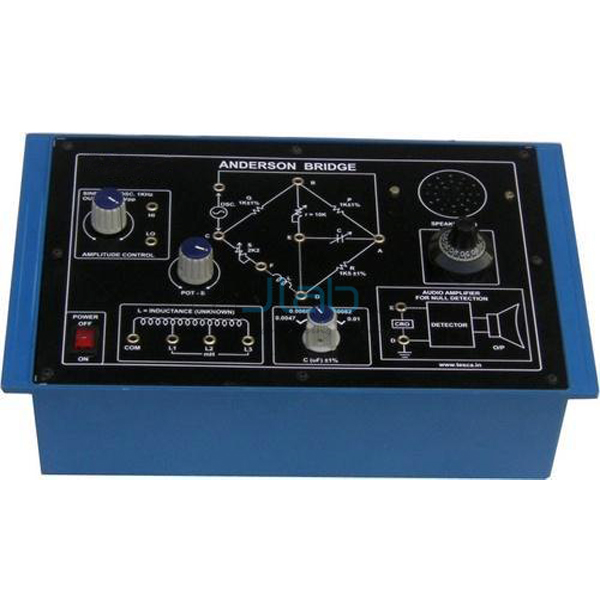

Anderson Bridge

Anderson Bridge

Product Code : JA-AET-1454

Anderson Bridge

Object:

  • To measure the inductance of a given Coil by Anderson Bridge method

Feature:

  • Anderson bridge circuit with arms values
  • Potentiometer for varying one arm
  • Three different value inductance
  • Potentiometer with calibrated dial
  • Five capacitors selected by a band switch
  • Audio amplifier with its IC regulated power supply
  • One KHz sine wave oscillator with its IC regulated power supply
  • Speaker
  • Mains on/off switch, fuse and jewel light
  • The unit is operative on 230 V ±10% at 50Hz A.C. mains
  • Adequate no. of patch cords stackable from rear both ends 4/ 2mm spring loaded plug length ½ meter
  • Good quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
  • Strongly supported by detailed operating instructions, giving details of object, theory, design procedures, report suggestions and book references
