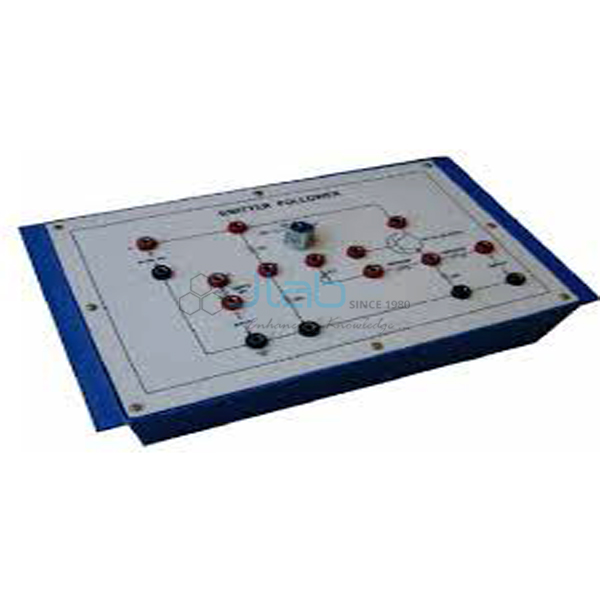

Emitter Follower CC

Emitter Follower CC

Product Code : JA-AET-1450

Emitter Follower CC

Object:

To study the overall characteristics of the Emitter Fol lower Amplifier and to find :

  • Voltage Gain
  • Input Impedance
  • Output Impedance

Features:

The board consists of the following built-in parts :

  • +9V D.C. at 50mA, IC regulated Power Supply internally connected
  • 02. NPN transistor
  • Adequate no. of other electronic components
  • Mains ON/OFF switch, Fuse and Jewel light
  • The unit is operative on 230V ±10% at 50Hz A.C. Mains
  • Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
  • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book
  • References

Weight:

  • 3 Kg. (Approx.)

Dimension:

  • W 340 x H 110 x D 210

Other Apparatus Required:

  • Decade Audio Frequency Generator
  • Decade Resistance Box
  • AF Milli voltmeter 0-500mV
